AQ255 AND AQ257 SERIES EXPANSION ZONING PANELS

69-1981—03 12

APPENDIX

This appendix provides examples for wiring Expansion Zoning

Panels to AQ2000 Series Control Panels and wiring additional

low voltage VA capacity.

Wiring Diagrams

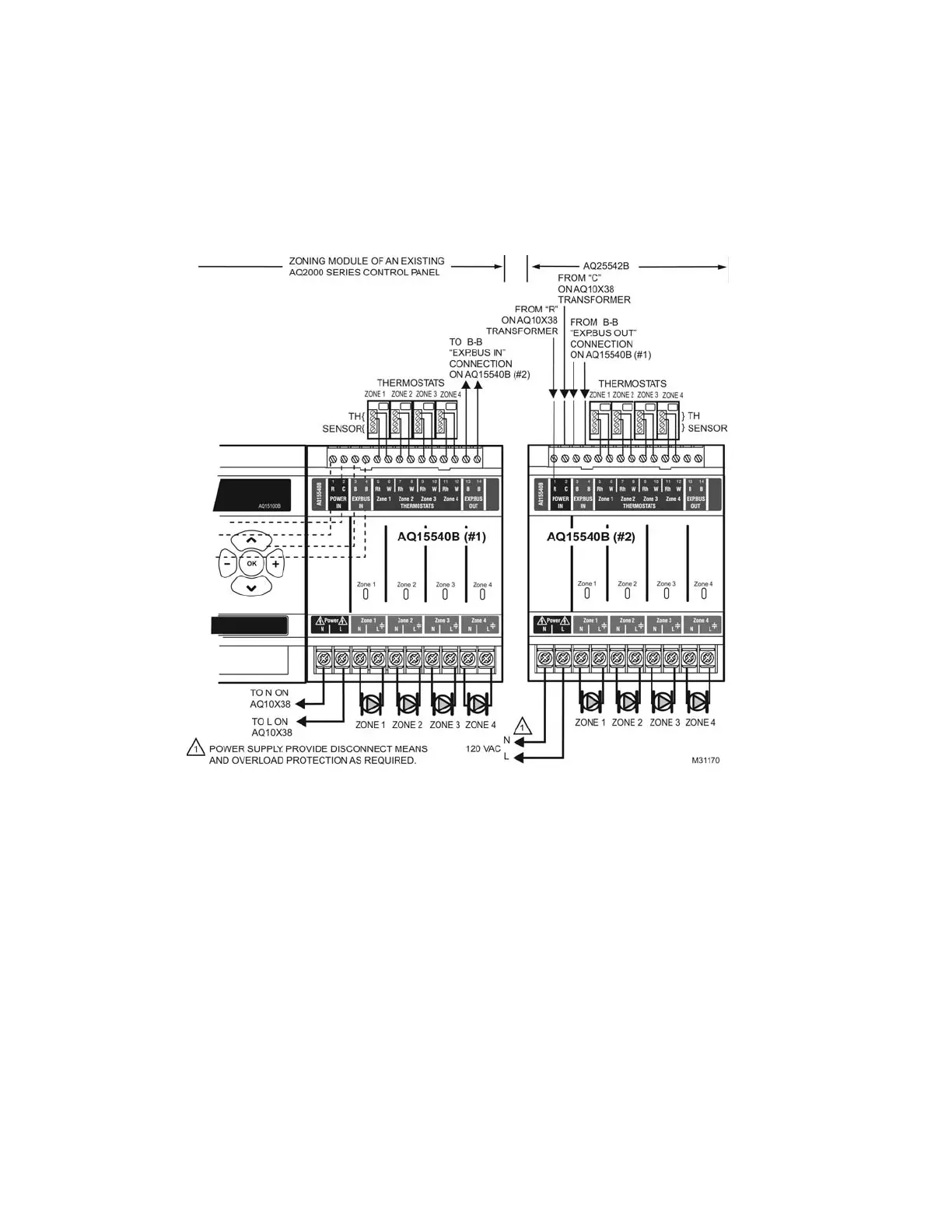

Fig. 5. Wiring of AQ25542B Expansion Zoning Panel to AQ2000 Series Control Panel.
