6 Assembly Instructions
− load: approx. 50 Ω
• max. measurement error: ±0.05
% of the measurement
(in the measuring range 4 ... 20 mA and between −10 to +55 °C
ambient temperature)
• max. cable length: 500 m
Hints on parameterization
Branch <device> – Basic System – I/O boards –
Board <x>: MFE7
Set the following values:
• channel A1+ A1− or A2+ A2−: type Current input
• parameter Power supply: value Off (sink mode)
6.4.8 HART Measurement Transmitter (EEx i) via ExMFE5 Board
Hazardous Area Safe Area enCore device
ExMFE5 board
P+
SH
HART pressure
transmitter, EEx i
HART temperature
transmitter, EEx i
HART
communicator
P−

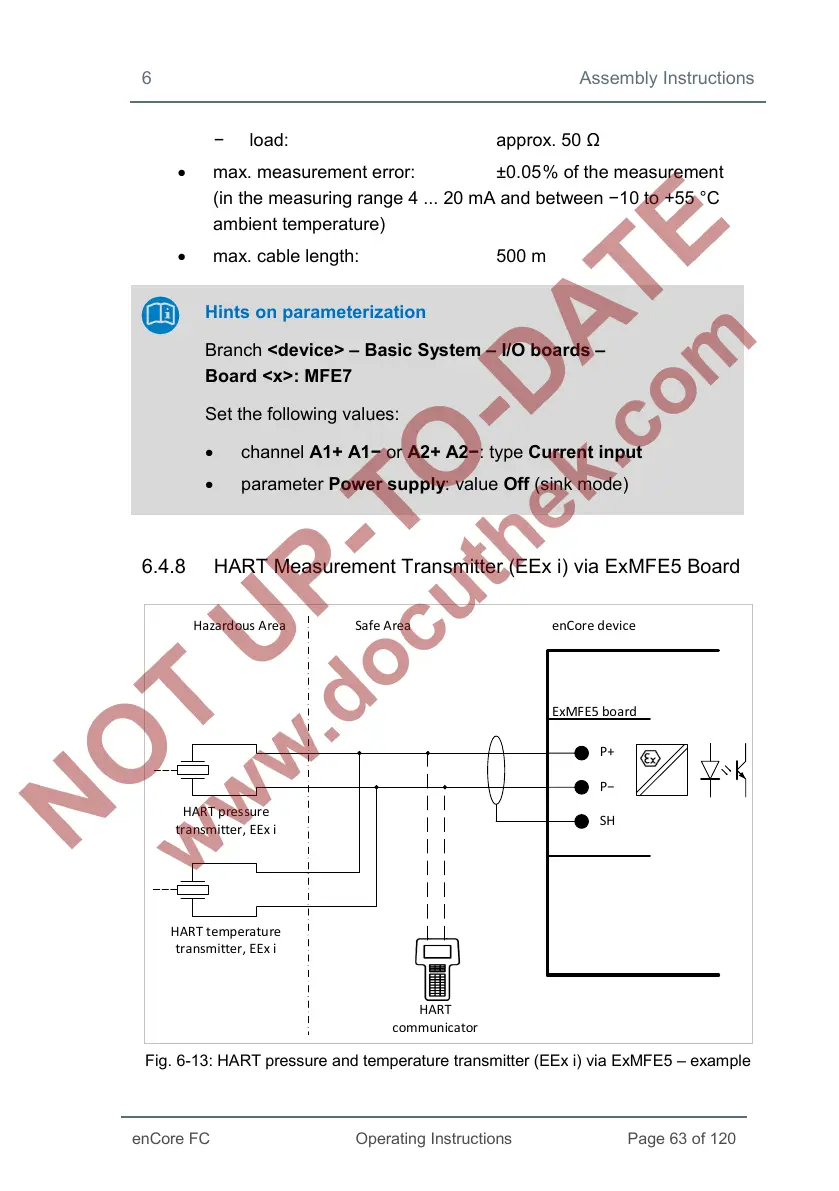

Fig. 6-13: HART pressure and temperature transmitter (EEx i) via ExMFE5 – example
