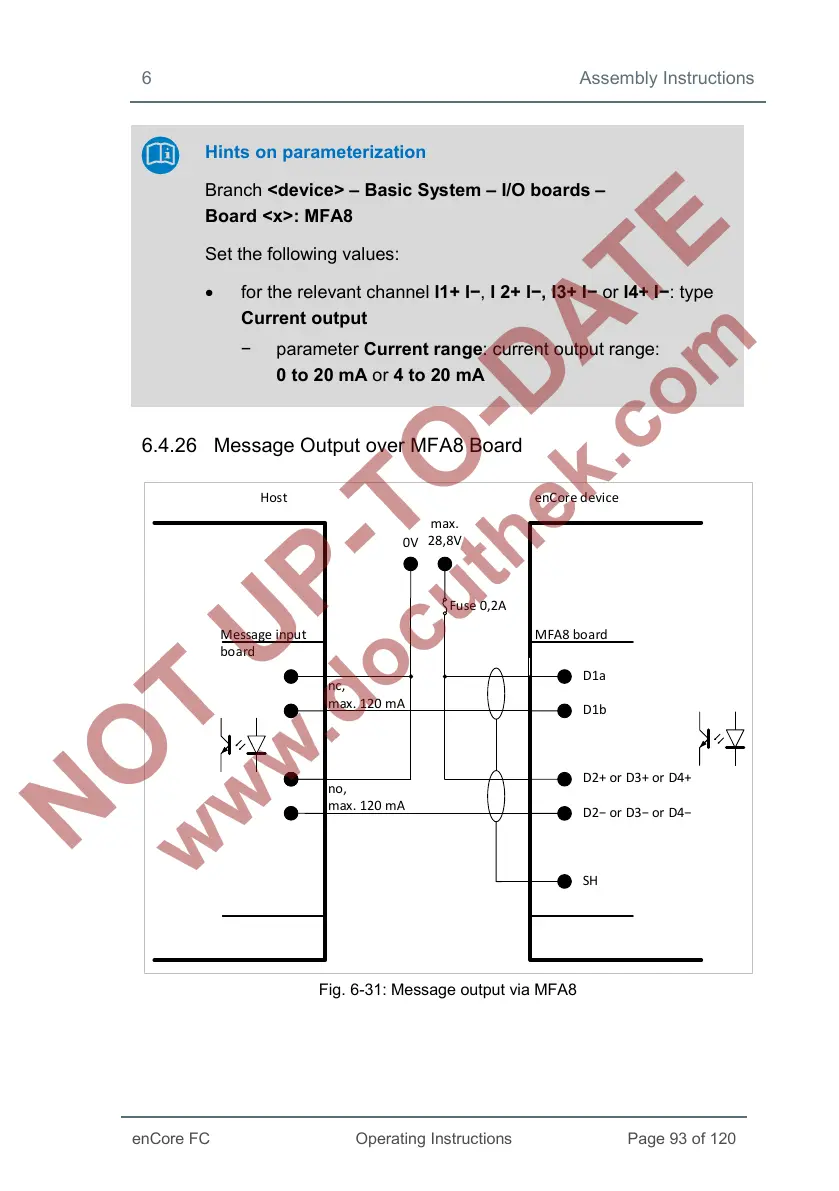

6 Assembly Instructions
enCore FC
Operating Instructions
Page 93 of 120
Hints on parameterization
Branch <device> Basic System I/O boards
Board <x>: MFA8
Set the following values:
for the relevant channel I1+ I−, I 2+ I−, I3+ I− or I4+ I−: type
Current output
parameter Current range: current output range:
0 to 20 mA or 4 to 20 mA
6.4.26 Message Output over MFA8 Board
Host enCore device
MFA8 board
SH
D1a
D1b
D2+ or D3+ or D4+
D2 or D3 or D4
Message input
board
nc,
max. 120 mA
0V
max.
28,8V
Fuse 0,2A
no,
max. 120 mA
Fig. 6-31: Message output via MFA8
