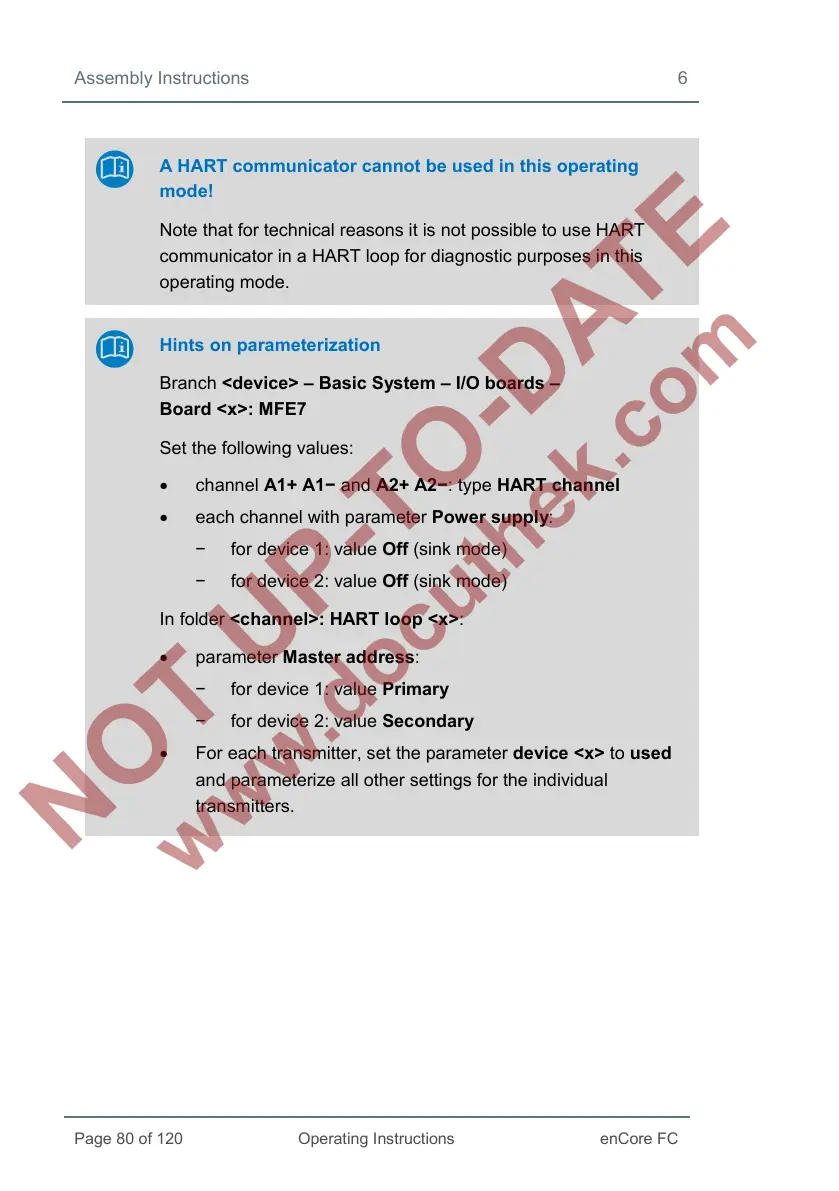

Assembly Instructions 6
A HART communicator cannot be used in this operating
mode!
Note that for technical reasons it is not possible to use HART
communicator in a HART loop for diagnostic purposes in this
operating mode.
Hints on parameterization
Branch <device> – Basic System – I/O boards –
Board <x>: MFE7
Set the following values:
• channel A1+ A1− and A2+ A2−: type HART channel
• each channel with parameter Power supply:
− for device 1: value Off (sink mode)
− for device 2: value Off (sink mode)
In folder <channel>: HART loop <x>:
• parameter Master address:
− for device 1: value Primary
− for device 2: value Secondary
• For each transmitter, set the parameter device <x> to used
and parameterize all other settings for the individual
transmitters.
