2-18 SVP Controller Operation Manual Part No.: 44200004 - Revision 2
2.3.10 Diagnostics
This menu provides the following features:
High-level view of all device I/O functions showing their state as
“High”/“Low”
Each output function can be tested by selecting and activating it
Internal memory usage overview
System health overview
Active alarms overview
Clear alarms
Activate the Run Prover Test mode

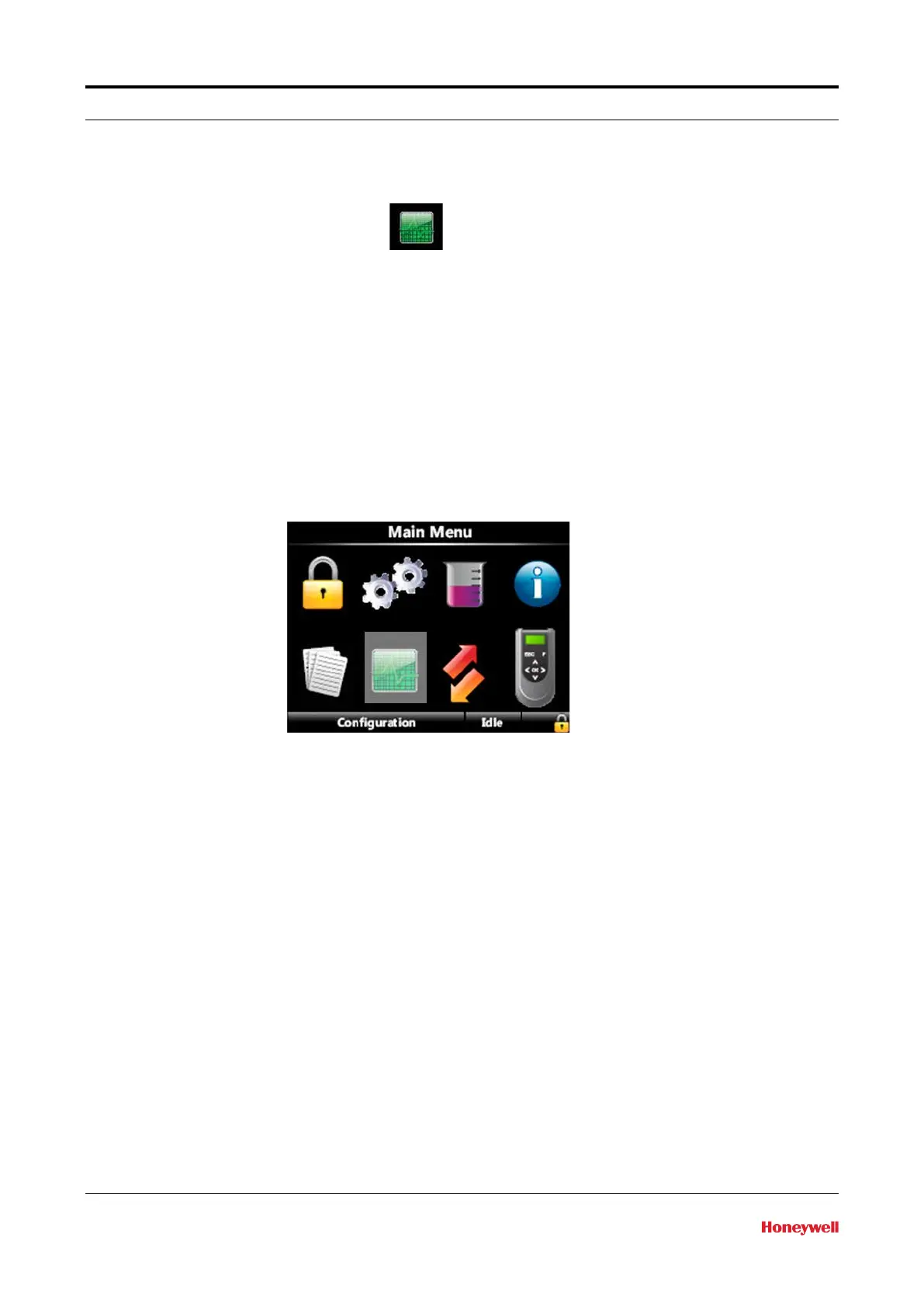

Figure 2-17: Diagnostics
Within this screen, the user can view the diagnostics about the
following subjects:
Overview of all I/O (Dashboard)
Overview of system health
Overview of all active alarms
Overview of device tasks such as clearing tasks, clearing alarms, and
running prover test task
Overview of available memory storage space for data logs and total
number of available logs
The diagram below shows all of the information available to you. Note that
the parameters marked with an * are not relevant for the first release of the
SVP Controller. They are reserved for future use or for internal testing.
