Part No.: 44200004 - Revision 2
SVP Controller Operation Manual
6-1
CHAPTER 6
ELECTRICAL SCHEMA
TICS & DRAWINGS
This section contains various electrical schematics and drawings for the
Honeywell Enraf small volume prover
. If there ar
e electrical questions not
addressed by these figur
es contact your nearest Honeywell Enraf
repr
esentative or the factory directly
.
6.1
Schematics for pr
over wiring

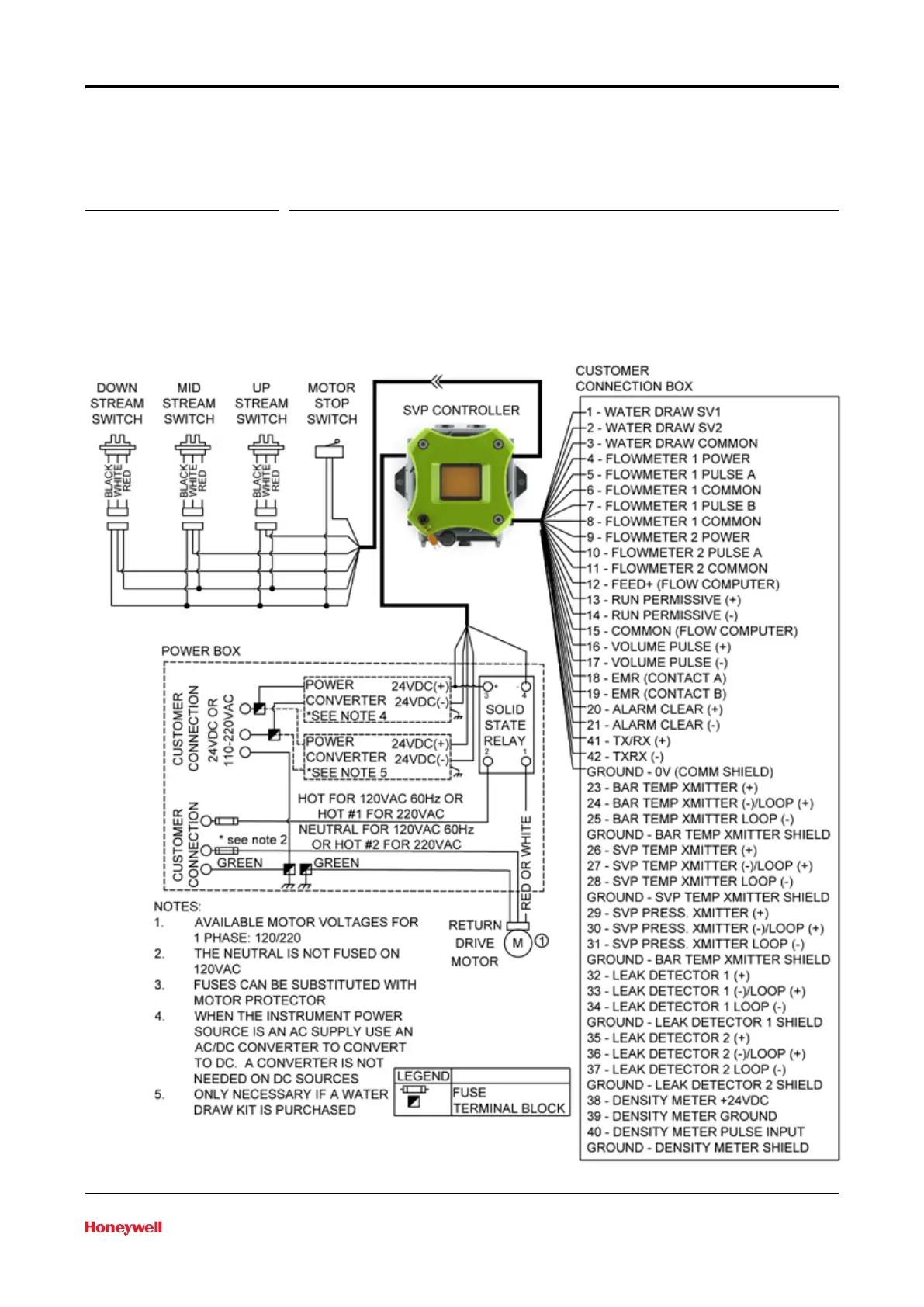

Figure 6-1:
Wiring Diagram 1 Phase
68
70
Table of Contents
Default Chapter
3
Table of Contents
3
The Honeywell Enraf Prover Series
7
CHAPTER 1 Installation
13
Electrical Connection
13
Field Wiring
13
Breaker
13
Enclosures
13
Customer Connection Box
14
Figure 1-1: Electrical Enclosures
14
Figure 1-2: Customer Connection Box
14
Power Box
15
SVP Controller Box
15
Figure 1-3: Power Box
15
Figure 1-4: SVP Controller Box with LAD
15
CHAPTER 2 Controller Information
17
Initial Power up
17
Navigating the SVP Controller Menus Using the LAD
17
Text Conventions
17
General
18
Commissioning
18
Figure 2-1: the Local Access Device (LAD) and Its System Overview
18
Menus and Navigation
19
General
19
Key Benefits
19
Main Menu
19
Figure 2-2: Main Menu
19
Screen Input Fields
20
Text Input Screen
20
Numeric Input Screen
20
Figure 2-3: Text Input Screen
20
Figure 2-4: Numeric Input Screen
20
Enumeration Input Screen
21
Status Bar
21
Menu Structure
21
Figure 2-5: Enumeration Input Screen
21
Figure 2-6: Status Bar
21
Figure 2-7: Menu Structure
22
Device Locking Menu
23
Figure 2-8: Device Locking Menu
23
Figure 2-9: Password Input Screen
23
Configuration
25
Using the Configuration Menu
25
Figure 2-10: Configuration Menu
25
Figure 2-11: Configuration Menu Tree
26
Device
27
Identification
27
Units
27
Display
27
Time
28
Motor
28
Sensor Pair
28
I/O Settings
29
Alarm Relay Output
29
Alarms
29
Prover Calibration
30
System Information
30
Figure 2-12: Prover Calibration
30
Figure 2-13: System Information
30
Figure 2-14: System Information Menu Tree
31
Logs
32
Transaction Logs
32
Figure 2-15: Logs
32
Figure 2-16: Logs Menu Tree
32
Transaction Information
33
Calibration Logs
33
Alarm Logs
33
Diagnostics
34
Figure 2-17: Diagnostics
34
Figure 2-18: Diagnostics Menu Tree
35
Transfer
36
Figure 2-19: Transfer
36
LAD Settings
37
CHAPTER 3 Operations
39
Operating Instructions
39
Meter Calibration
39
Prover Test
40
Prover Calibration
41
CHAPTER 4 Calibration
43
General
43
Static Leak Detection
43
Volume Water Draw
46
Gravimetric Water Draw
54
Calculations
61
CHAPTER 5 Troubleshooting
65
Run Prover Test
65
Error Messages
65
Sensor out of Sequence
65
Motor Time out
65
Sensor Stuck
66
Service Due
66
Diagnostics
66
Dashboard
66
System Health
67
Active Alarms
67
Troubleshooting Chart
67
CHAPTER 6 Electrical Schematics & Drawings
69
Schematics for Prover Wiring
69
Connections to Flow Computers
72
Omni
72
Condat CIU
73
Daniels
74
Dynamic
75
After Sales Support
75
Frequently Asked Questions
77
