Scan Range
IMPROPER REFLECTIVE SURFACE
• To prevent two optical beam paths to the receiver, do NOT use the long range version
safety perimeter device if the application distance required between the emitter and receiver
is less than 30 m (131 ft).
• Use the standard scan range product if the application distance required between the
emitter and receiver is less than 30 m (131 ft).
Failure to comply with these instructions could result in death or serious injury.
Scan range is the maximum distance allowed between the emitter and the receiver (see figure
1-5). See below for scan range availability.
FF-SPS4 Version Scan Range
Standard 40 m (131 ft).
Long range 75 m (246 ft.).
Low temperature 20 m (66 ft).

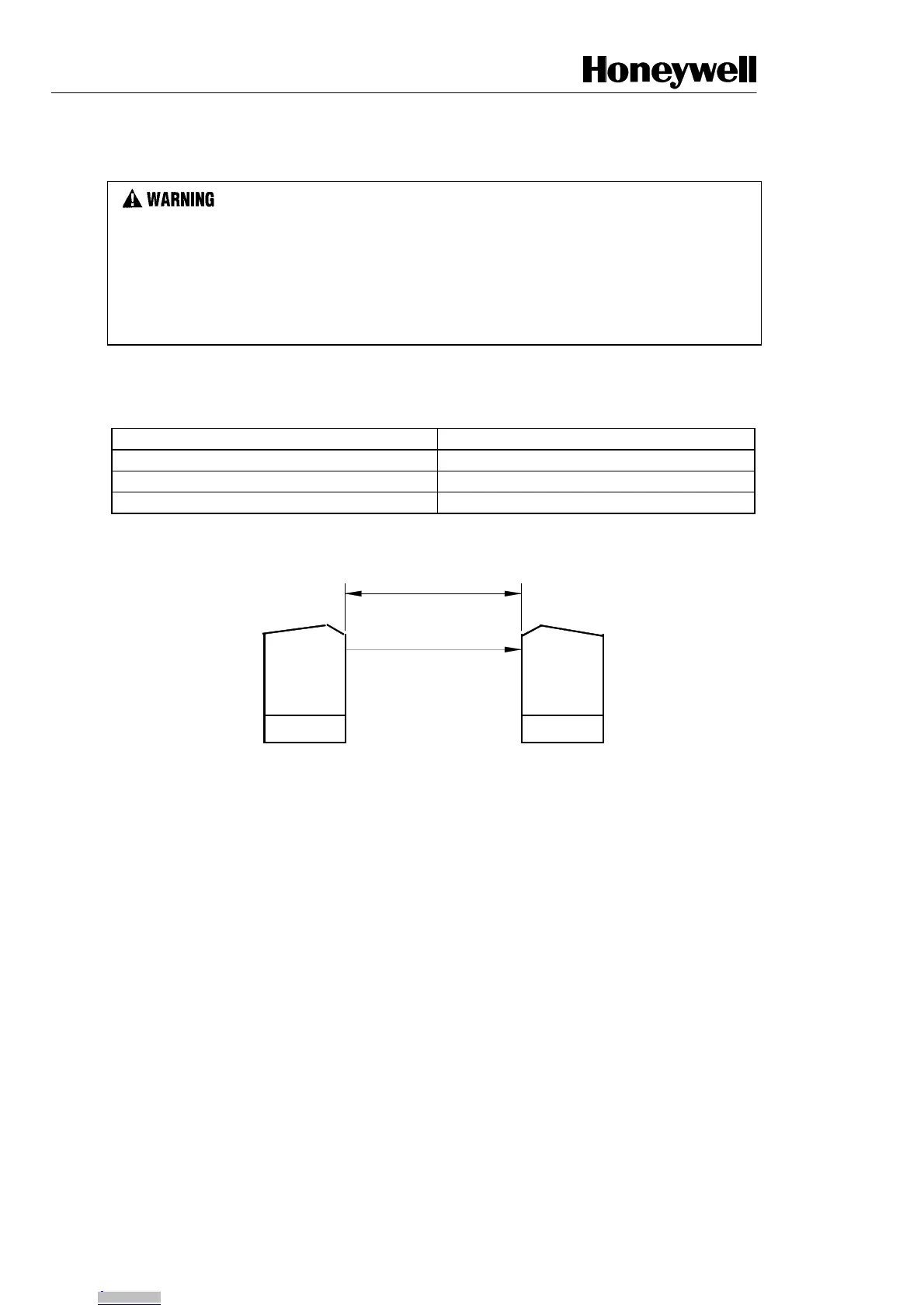

Figure 1-5 Scan Range
E
Scan Range
R
