107063-11 EN FR26 GLO 800 Printed in France 1
Description and
Operation
Overview
This section discusses FF- SPS4 identification, perimeter protection, specifications and
operation. This section also highlights the customer’s responsibility of properly designing and
installing this perimeter guarding system.
Identification and Approval Plates
Emitter and receiver have two plates, an identification plate and an approval plate (see figures
1-1 and 1-2).
The identification plate contains the following:
Scanning range (m)
Catalog listing (Type)
Power supply voltage (V)
Power consumption (P)
Power supply frequency (F)
Max. switching capacity of output relays
Serial number and date code (month and year)
Response time
Sealing
The approval plate certifies that the product conforms to the technical examination
endorsement issued by the approval institutes of different countries.

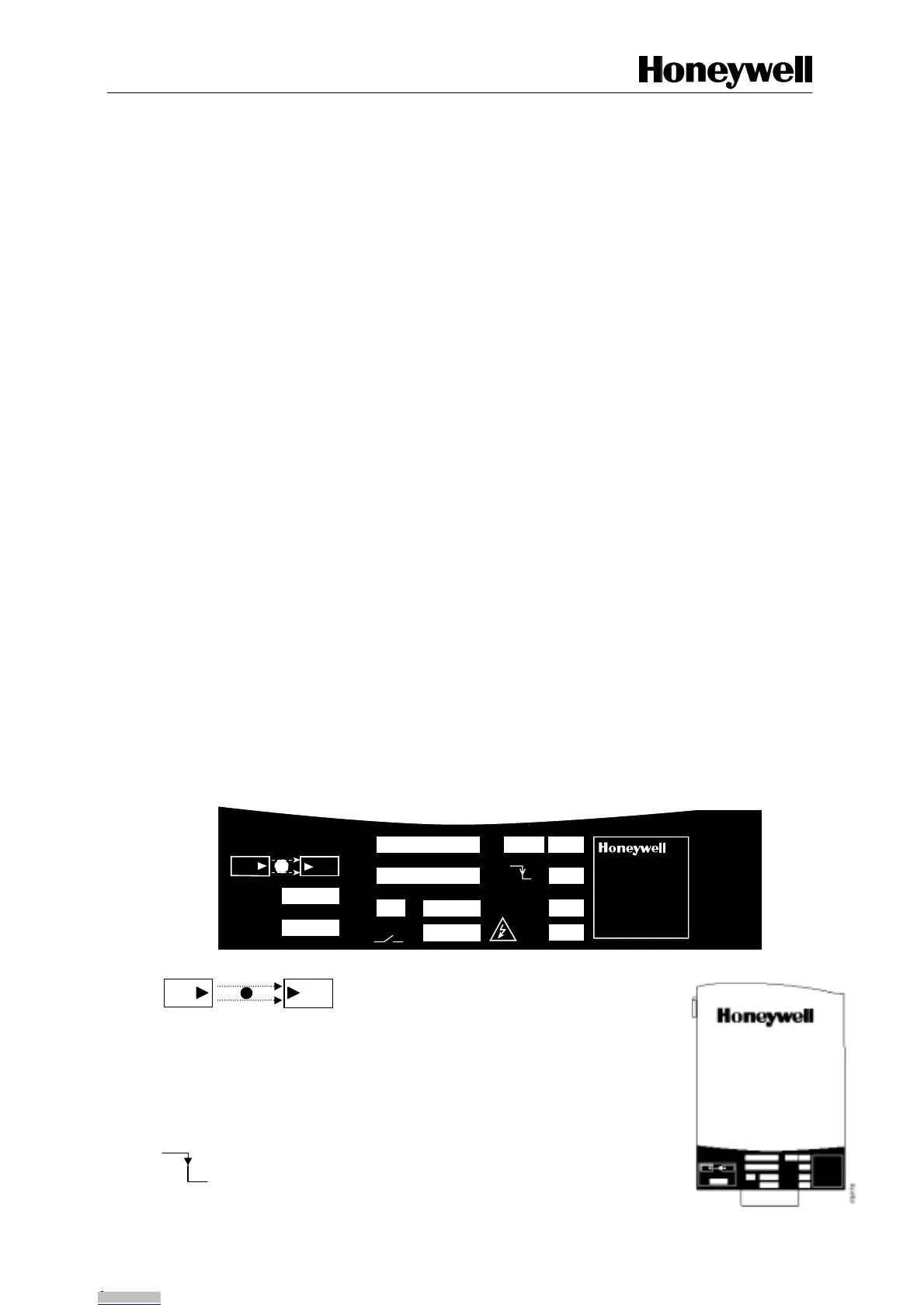

Figure 1-1 Identification Plate
MADE IN FRANCE
Scanning range
T
response time
(F) 38240 MEYLAN
SERVICE :
GB: 0161/251 4079
F: 01 60 19 80 41
D: 069/8064-444
USA: 1/8005376945
V
Type
N
°
F
P
IP
NEMA
I
max
/V
max
FF-SPS4
SPE
SPE
SPR
Resolution
L
øR
L
øR
Scanning range (m)
Type Product listing
V Power supply voltage
P Power consumption
F Power supply frequency
I
max/Vmax max. switching capacity of output relays
Serial number and date code
(month and year)
T Response time (ms)
NEMA/IP Sealing
SPE SPR
L
