Honeywell FF-SPS4 Series User Manual

44 107063-11 EN FR26 GLO 800 Printed in France

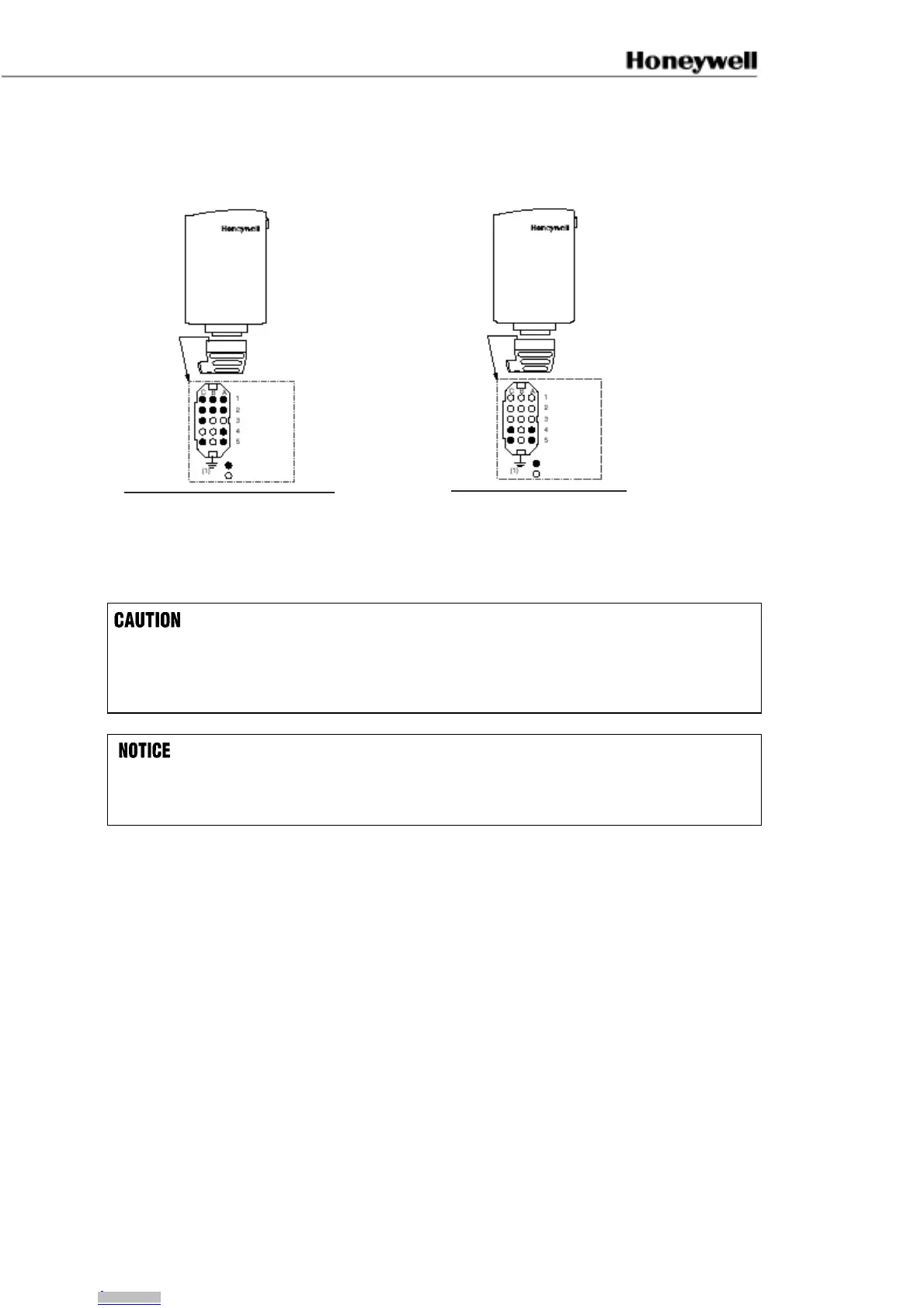

Figure 3-2 Quick-connect Connector Pinouts
Receiver Emitter
Terminal Strip Connector Wiring (see figure 3-3)
The terminal strip is a plastic connector. To ensure compliance with the rated sealing, install
only one cable through the connector and attach firmly (see figures 3-3, 3-4, 3-5 and 3-6).
CONNECTOR DAMAGE
To prevent irreversible connector damage, do NOT pull on wires during removal. Always push
the orange tab first before removing a wire.
Failure to comply with these instructions may result in product damage.
ELECTRICAL NOISE IMMUNITY
To ensure the specified immunity to electrical noise, the ground terminal of FF-SPS4 must be
connected to the main ground of the machine.
The following tools are necessary:
• A set of wire strippers.
• A small-sized, flat-head screwdriver.
• A Torx T15 screwdriver.
