Product Features of the
ISSUE
2
FF-SPS4 Series Safety Single
Beam Device - Quick
Disconnect
PK 8014
2
NRTL/C
Sensing and Control
IMPROPER INSTALLATION OF FF-SPS4 SERIES
SAFETY SINGLE BEAM DEVICE – QUICK
DISCONNECT
• Strictly adhere to all installation instructions.
• Only allow entry into protected area by interruption
of sensing field or other safeguarding device.
• Install and wire the FF-SPS4 Safety Single Beam
Device – Quick Disconnect in accordance with the
installation instructions and applicable safety
regulations and standards (OSHA, ANSI, and
European standards).
Failure to comply with these instructions could
result in death or serious injury.
GENERAL INFORMATION
Honeywell's FF-SPS4 Series Safety Single Beam
Device – Quick Disconnect is a self-contained,
perimeter protection device designed to detect the
body of an operator before gaining access to a
dangerous area. This device is a single thru-scan
type that uses an invisible modulated infrared beam.
The interruption of the beam results in the opening of
the output contacts and the generation of a stop
signal. The stop signal causes additional circuitry
(not included with this product) to arrest machine
motion. Continued operation of the machinery is
prevented until the sensing beam is cleared and a
reset button is pressed.

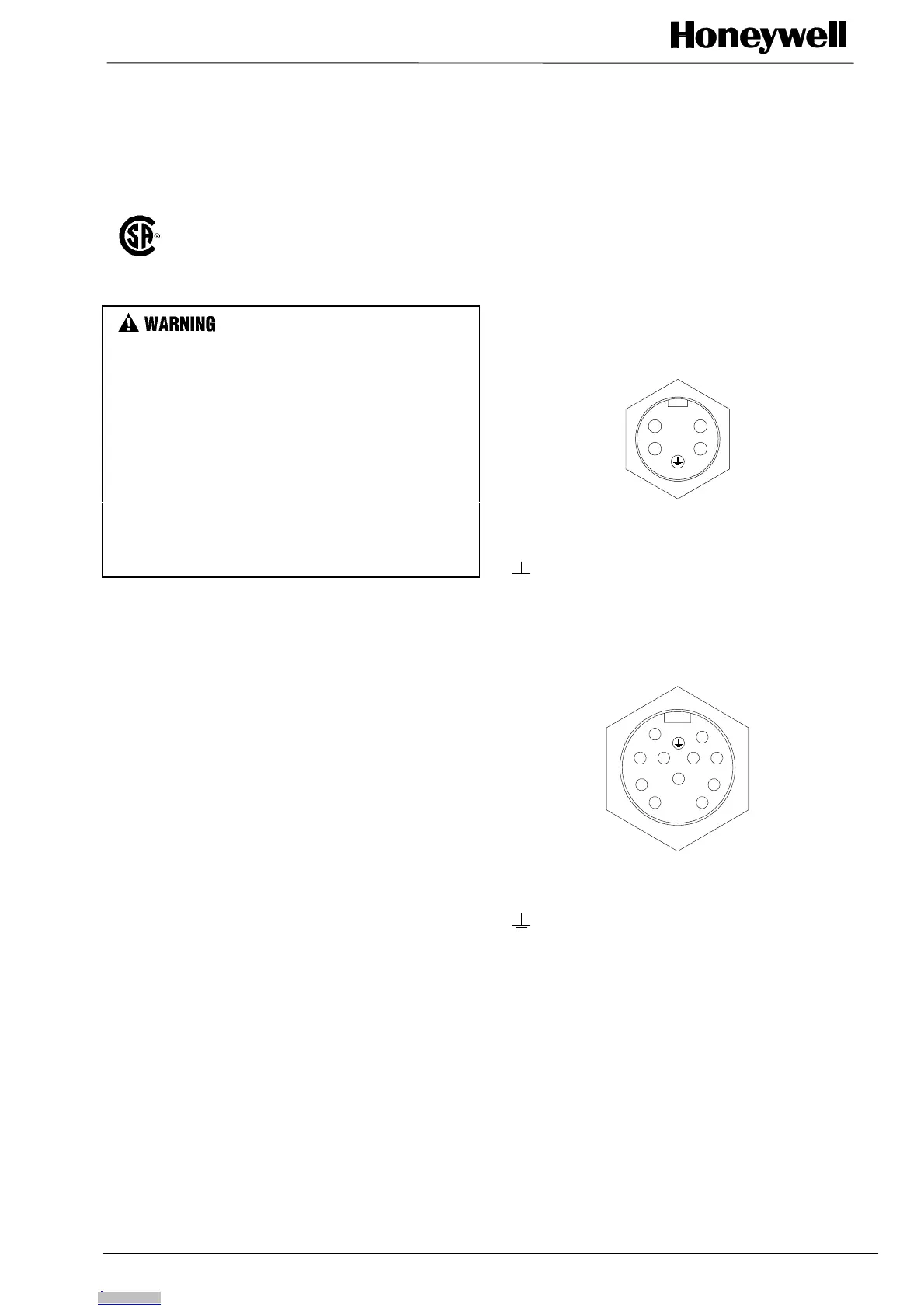

CONNECTOR PINOUT
Figure 1. Five-pole Emitter Receptacle
(face view)
A4 C5
A5 C4
A4: Phase / dc(+) (WHITE)
A5: Neutral / dc(-) (RED)
: Ground (GREEN)
C4: Test (+) (ORANGE)
C5: Test (-) (BLACK)
Figure 2. Twelve-pole Receiver Receptacle
(face view)
C1
C2
C3 C5
A5
B1
B2
A4
A1
A2
UN
A4: Phase / dc (+) (ORANGE)
A5: Neutral / dc (-) (BLUE)
: Ground (GREEN)
C1 & C2: Safety Normally Open contact output
(WHITE/BLACK & BLACK)
B1 & B2: Safety Normally Open contact output
(WHITE & RED)
A1 & A2: Auxiliary Normally Closed contact
output (ORANGE/BLACK & BLUE/BLACK)
C3 & C5: Start/Restart Interlock and Final
Switch Device (FSD) monitoring (RED/BLACK &
GREEN/BLACK)
