Honeywell Fire-Lite Alarms MS-5UD Series User Manual

14 MS-5UD & MS-10UD Series Manual — P/N 52626:C2 1/24/2012
Product Description Product Features
The following versions of the MS-5UD and MS-10UD are available:
1.1 Product Features
• Built-in DACT (Digital Alarm Communicator/Transmitter)
• Style B (Class B) IDC (Initiating Device Circuit)
 MS-5UD - five programmable IDCs
 MS-10UD - ten programmable IDCs
• Four Style Y (Class B) NAC (Notification Appliance Circuit) -
special application power
• Three programmable Form-C relays
• Built-in Programmer
• Touchtone/Rotary dialing
• Programmable Make/Break Ratio
• Optional Dress Panel: DP-51050
• A modified Dress Panel is provided standard with Canadian models: includes an ANN-LED
Annunciator module
• Optional Trim Ring TR-CE (red) for semi-flush mounting the cabinet
• ANN-BUS for connection to optional:
 ANN-80 Remote LCD Annunciator
 ANN-I/O LED Driver
 ANN-S/PG Printer Module

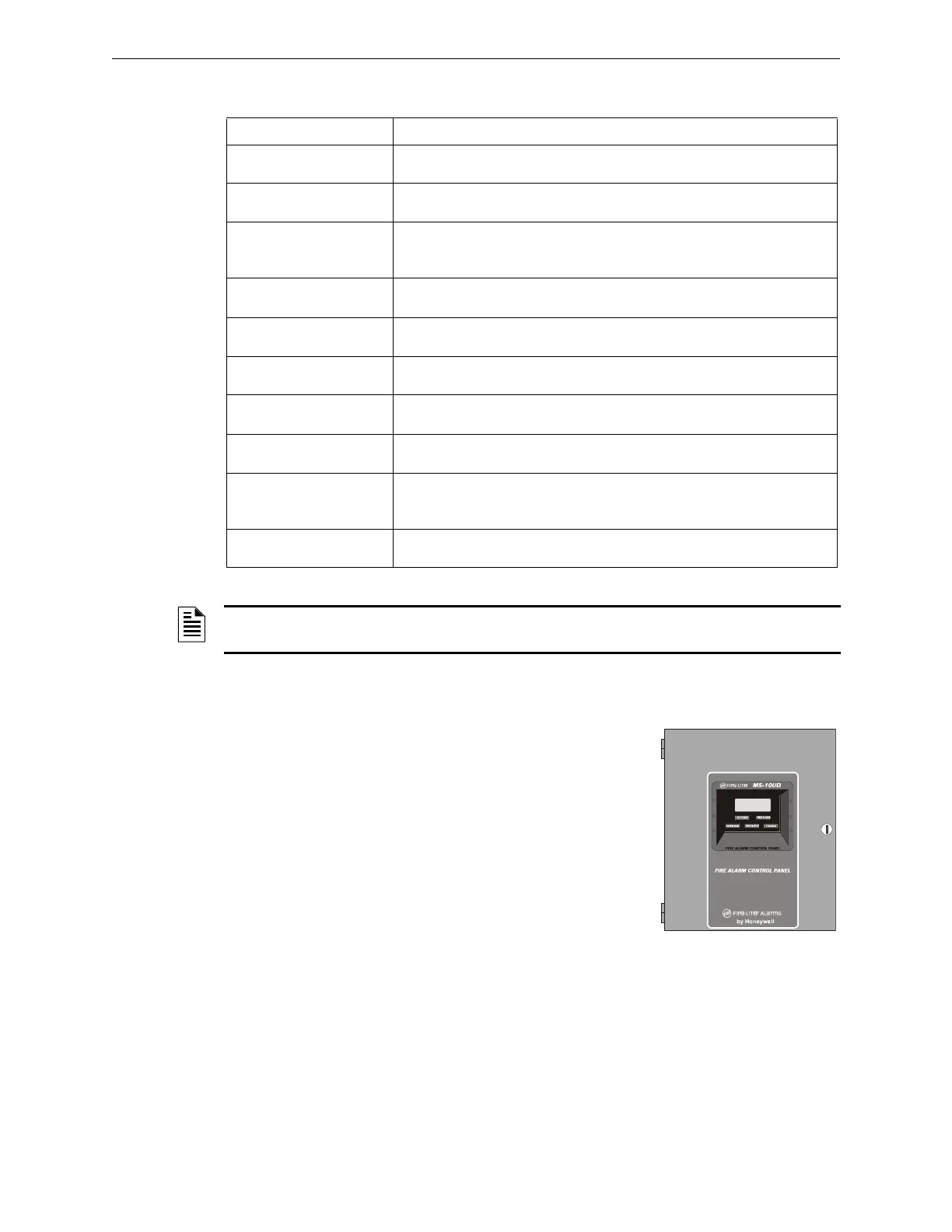

FACP Version Description
MS-5UD-3 Five Zone Panel: 120 VAC with FLPS-3 power supply providing 3.0 amps
total 24 VDC output current
MS-5UD-7 Five Zone Panel: 120 VAC with FLPS-7 power supply providing 7.0 amps
total 24 VDC output current
MS-5UD-7C Five Zone Panel: 120 VAC with FLPS-7 power supply providing 7.0 amps
total 24 VDC output current. Includes built-in ANN-LED Annunciator. This
panel is approved for Canadian applications
MS-5UD-3E Five Zone Panel: 240 VAC with FLPS-3 power supply providing 3.0 amps
total 24 VDC output current
MS-5UD-7E Five Zone Panel: 240 VAC with FLPS-7 power supply providing 7.0 amps
total 24 VDC output current
MS-10UD-3 Ten Zone Panel: 120 VAC with FLPS-3 power supply providing 3.0 amps
total 24 VDC output current
MS-10UD-3E Ten Zone Panel: 240 VAC with FLPS-3 power supply providing 3.0 amps
total 24 VDC output current
MS-10UD-7 Ten Zone Panel: 120 VAC with FLPS-7 power supply providing 7.0 amps
total 24 VDC output current
MS-10UD-7C Ten Zone Panel: 120 VAC with FLPS-7 power supply providing 7.0 amps
total 24 VDC output current. Includes built-in ANN-LED Annunciator. This
panel is approved for Canadian applications.
MS-10UD-7E Ten Zone Panel: 240 VAC with FLPS-7 power supply providing 7.0 amps
total 24 VDC output current
NOTE: Unless otherwise specified, the information in this manual applies to all versions of the
panels.
