MS-5UD & MS-10UD Series Manual — P/N 52626:C2 1/24/2012 53
ANN-BUS Devices Installation

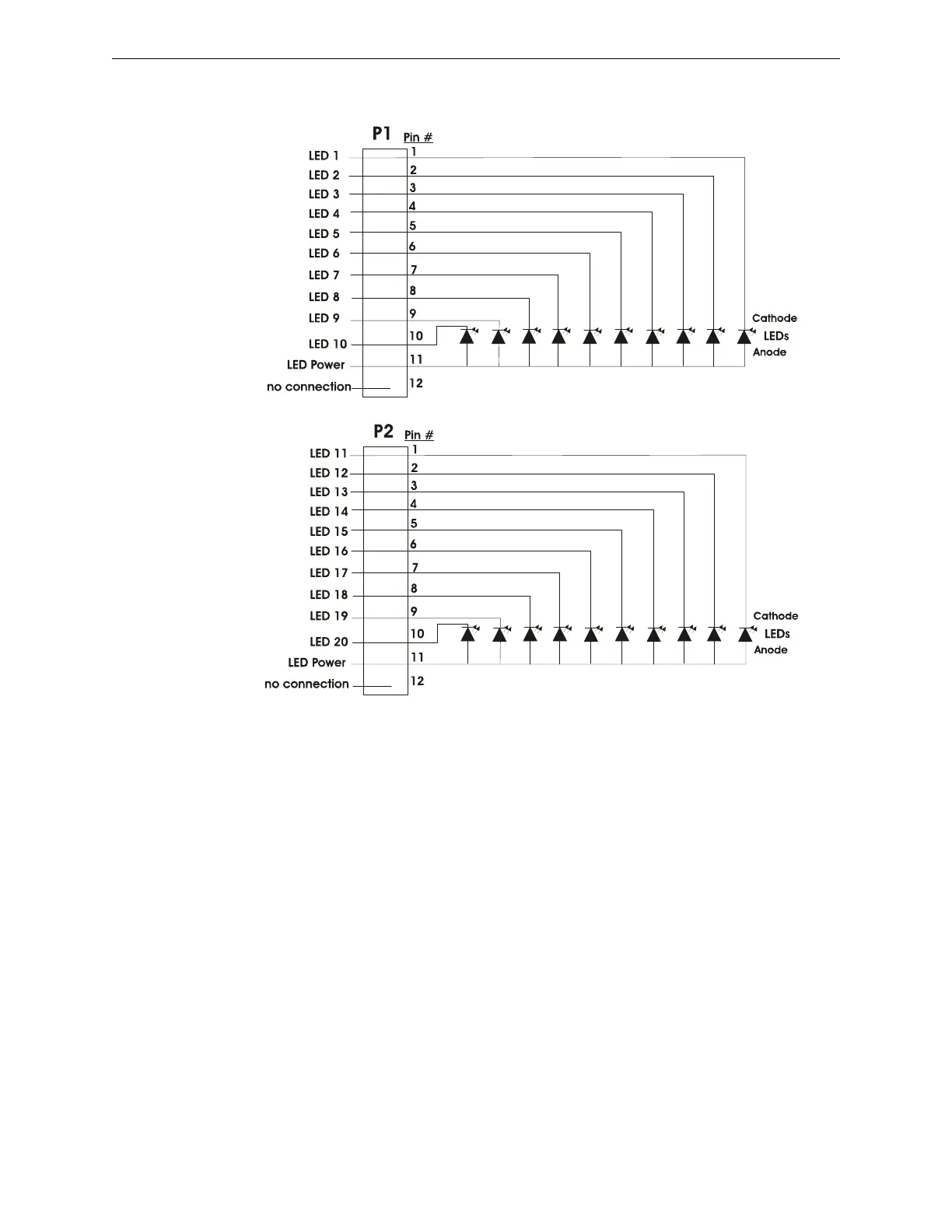

The LEDs are wired as illustrated in Figure 2.26. Note that the illustration depicts only connectors
P1 and P2. Wiring is identical for P3 (LEDs 21-30) and P4 (LEDs 31-40).
2.8.6 ANN-LED Annunciator Module
The ANN-LED annunciator module provides LED annunciation of general system faults and input
zones when used with a compatible FACP. The ANN-LED module provides alarm (red), trouble
(yellow) and supervisory (yellow) indication for up to ten input zones.
Canadian Applications: The ANN-LED is supplied standard with the MS-5UD-7C and MS-10UD-
7C models. It is mounted to the dress panel included with these models.
Specifications
• Max. ANN-BUS Voltage: 24 VDC
• Max. Current:
 Alarm: 68 mA
 Standby: 28 mA
• Operating Temperature: 32
o
F to 120
o
F (0
o
C to 49
o
C)
• For indoor use in a dry location only
Figure 2.26 ANN-I/O Board Layout
ann-ioleds.wmf

Honeywell Fire-Lite Alarms MS-5UD Series Specifications

General

Number of Zones	5
Dimensions	14.5" (36.83 cm) H x 12.75" (32.39 cm) W x 3.5" (8.89 cm) D
Weight	11 lbs (5 kg) without batteries
Zone Configuration	Class B
Operating Temperature	32°F to 120°F (0°C to 49°C)
Type	Control Panel
Compatibility	Compatible with Fire-Lite devices
Compatible Devices	Fire-Lite detectors, modules, and other compatible devices
Communication	Optional dialer
Standby Current	150 mA
Auxiliary Power Output	24 VDC, 500 mA
Humidity Range	10% to 93% non-condensing
