Honeywell HC30W45R2 Configuration Guide

Logging In and Viewing Live Video
13

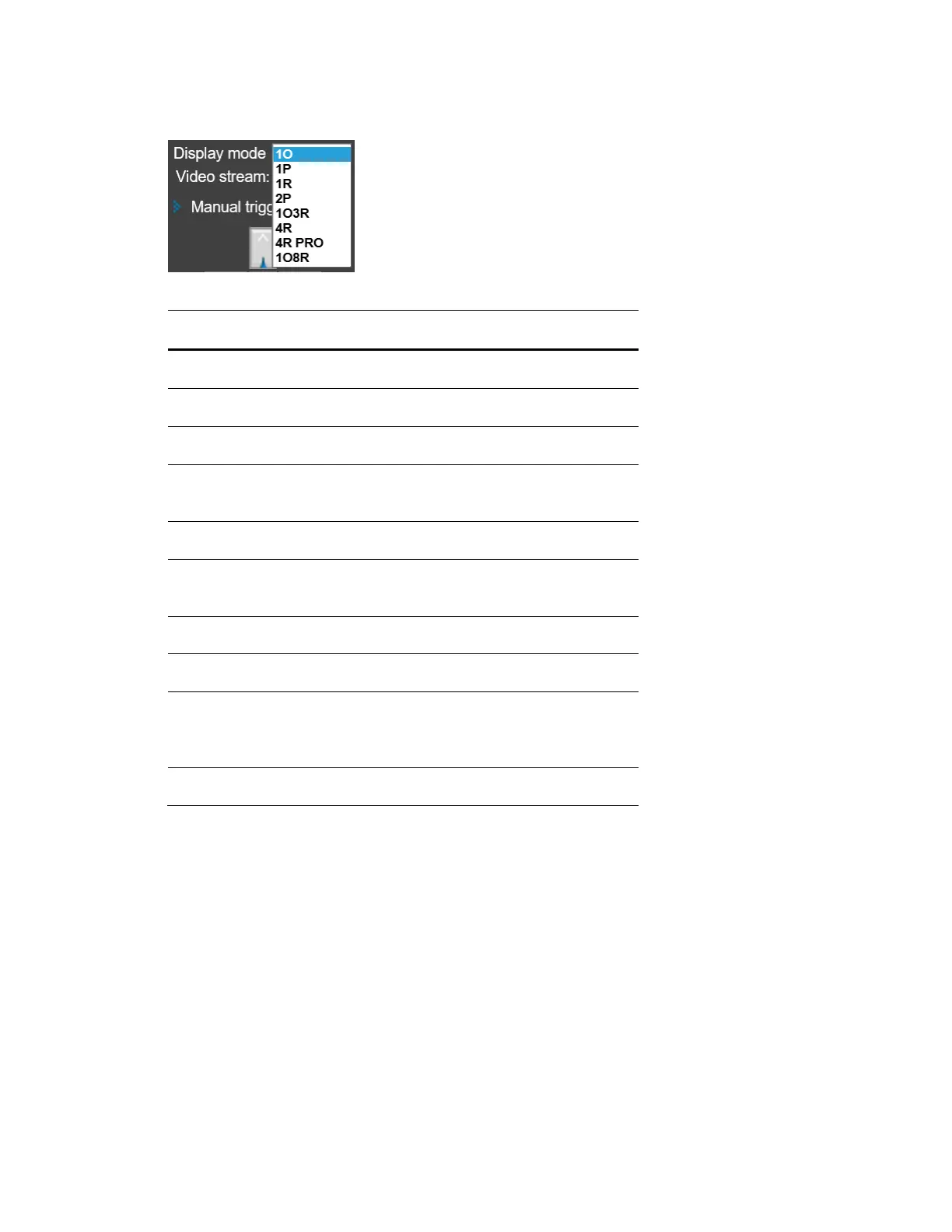

Figure 3-10 Fisheye Display Mode
Table 3-2 Fisheye Display Mode
Display Mode Description
1O One Original fisheye view
1P One Panoramic view
1R One Regional view
1P2R One Panoramic and two Regional views
(Wall mount)
2P Two Panoramic views
1P3R One Panoramic and three Regional views
(Wall mount)
1O3R One Original and three Regional views
4R Four Regional views
4R PRO Four Regional views interactively displayed
when the field of view changes in any of the
views
1O8R One Original and eight Regional views
1O (One Original) Display Mode
When mounted on a ceiling, the fisheye camera can cover an approximate of 64 m²
surveillance area (installed at a height of approximately 3 meters), while still keeping details in
videos with recognizable facial features of people passing through the area.
The 1O view is especially adequate for taking an overview glimpse of the surveillance area
when mounted on the ceiling.

Honeywell HC30W45R2 Specifications

General

Windows operating systems supported	Windows 10, Windows 7
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	12.95 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Sensor type	CMOS
Optical sensor size	1/2.7 \
White balance	Auto, Manual
Minimum illumination	0.03 lx
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
Country of origin	Taiwan
International Protection (IP) code	IP66
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	30 m

Weight and Dimensions

Depth	99.8 mm
Width	133.3 mm
Weight	760 g
Package weight	1100 g
