Honeywell HC30W45R2 Configuration Guide

Configuring Video Analytics
61
Note
• The volume numbers (0~100) on the left side of wave diagram
does not represent decibel (dB). Sound intensity level has
already been mapped to preset values. You can, however, use
the real-world inputs at your installation site that are shown on
the wave diagram to configure an alarm level.
• To configure this feature, you must not mute the audio in
Setup Camera Setup  Audio. The default of the camera
can be muted due to the lack of an internal microphone. An
external microphone is provided by users.
You can use the Profile window to configure a different audio detection setting. For example,
a place can be noisy in the day time and become very quiet in the night.
1. Check Enable this profile. Once the Audio detection window is opened, the current sound
input will be interactively indicated by a fluctuating yellow wave diagram.
2. Drag the Alarm level slider to a preferred location on the left slide bar.
3. Select the Night mode or Schedule mode. You may also manually configure a period of
time during which this profile will take effect.
4. Click Save and then click Close to complete your configuration.

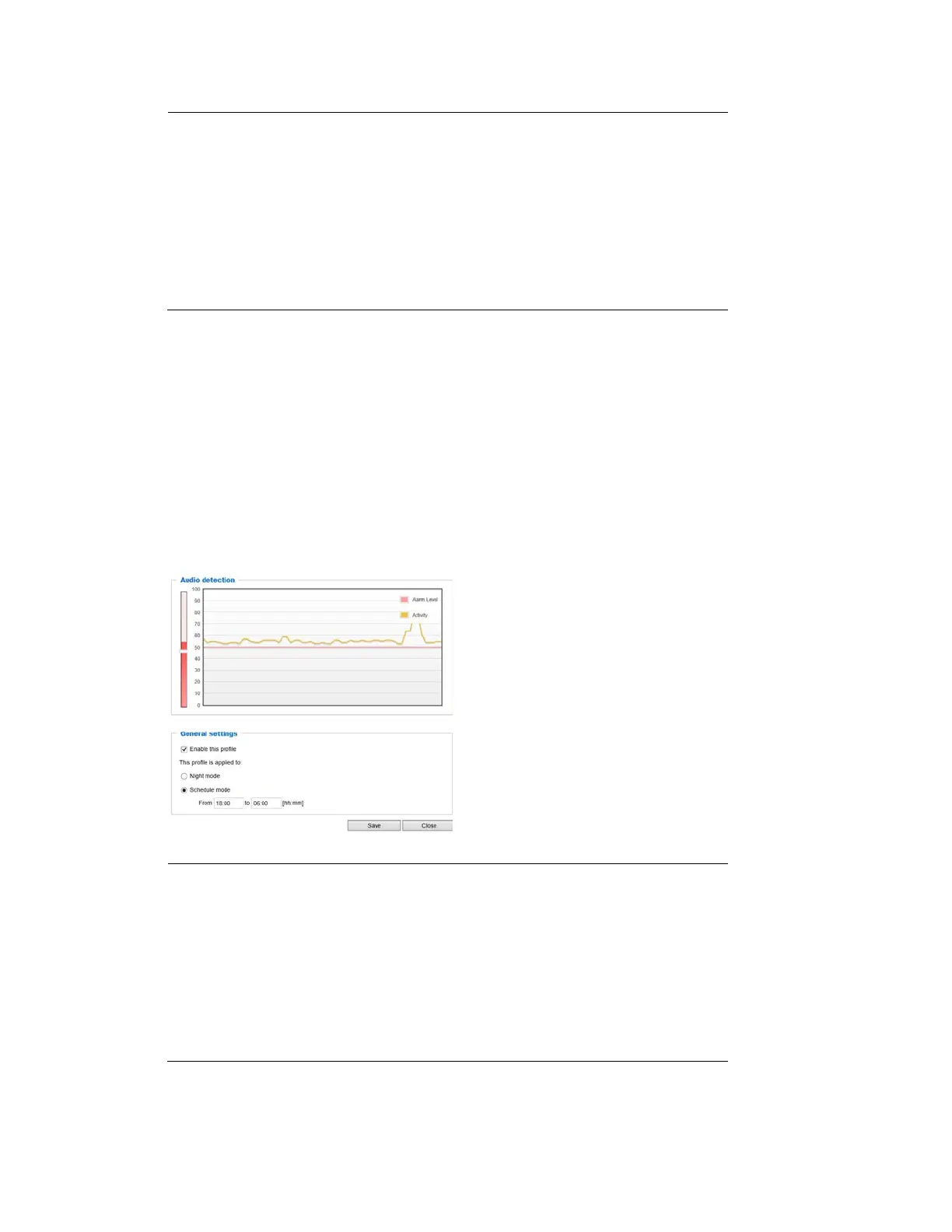

Figure 6-8 Audio Detection Profile
Note
• If the Alarm level and the received volume are set within a range
of 20% on the wave diagram, frequent alarms will be triggered.
It is recommended to set the Alarm level farther apart from the
detected sound level.
• To configure and enable this feature, you must not configure
video stream #1 into Motion JPEG. If an external microphone
input is connected and recording of audio stream is preferred,
audio stream is transmitted between camera and
viewer/recording station along with stream #1.

Honeywell HC30W45R2 Specifications

General

Windows operating systems supported	Windows 10, Windows 7
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	12.95 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Sensor type	CMOS
Optical sensor size	1/2.7 \
White balance	Auto, Manual
Minimum illumination	0.03 lx
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
Country of origin	Taiwan
International Protection (IP) code	IP66
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	30 m

Weight and Dimensions

Depth	99.8 mm
Width	133.3 mm
Weight	760 g
Package weight	1100 g
