Note
• In a Regional view displaying 100% of video feed (via the
Resize buttons - see Resize Buttons on page 12), your
mouse wheel can be used to scroll the view window
vertically before you click a live image.
• After you click the live image, the mouse wheel becomes
the zoom in/out tool.
4R (Four Regional) Display mode
The view control and look and feel are identical to that as described in the 1O3R mode except
that the Original circular view is absent from this mode.

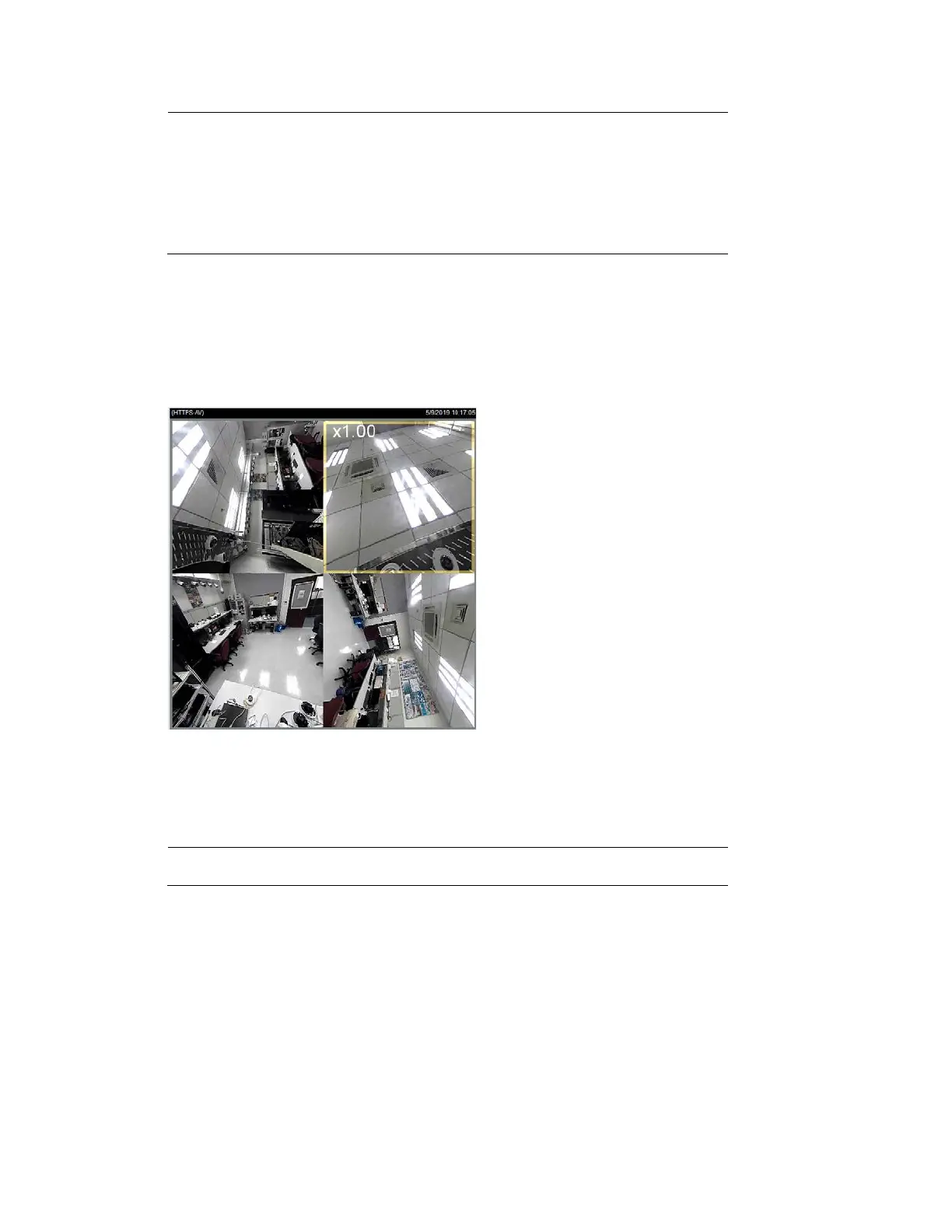

Figure 3-17 4R (Four Regional) Display mode
4R PRO (Four Regional Proactive) Display mode
The 4R PRO mode is similar to the 4R mode except that the quad view windows consecutively
rotate in correspondence to the change of view area in one window.
Note The zoom in/out and tilt control is not available in this mode.
1O8R (One Original and Eight Regional) Display mode
The view control and look and feel are identical to that as described in the 1O3R mode.

Honeywell HC30W45R2 Specifications

General

Windows operating systems supported	Windows 10, Windows 7
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	12.95 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Sensor type	CMOS
Optical sensor size	1/2.7 \
White balance	Auto, Manual
Minimum illumination	0.03 lx
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
Country of origin	Taiwan
International Protection (IP) code	IP66
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	30 m

Weight and Dimensions

Depth	99.8 mm
Width	133.3 mm
Weight	760 g
Package weight	1100 g
