Honeywell HC30W45R2 Configuration Guide

Performance Series IP Camera Software Configuration Guide
74
For example, if you enter “7 days”, the recorded files will be stored on the SD card for 7 days.
Click Save to enable your settings.
Content Management
Go to Setup Storage Setup Content Management.
This section describes how to manage the content of recorded videos on the camera. Here
you can search and view the records and view the searched results.
Searching and Viewing the Records
This tab allows the user to set up search criteria for recorded data. If you do not select any
criteria and click Search, all recorded data will be listed in the Search Results tab.

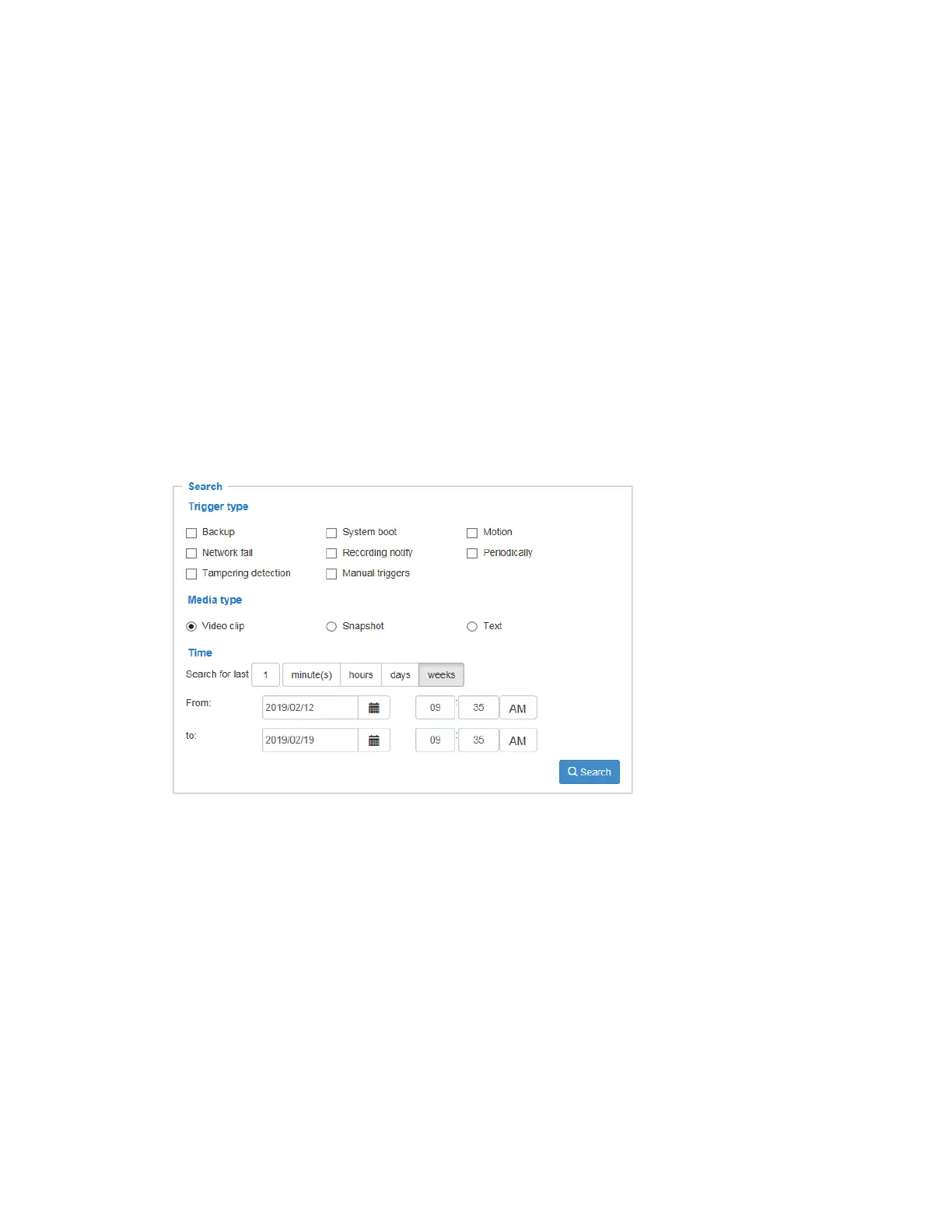

Figure 7-5 Search
• Trigger Type: Select one or more trigger types.
• Media Type: Select a media type (Video clip, snapshot or text).
• Time: Manually enter the time range you want to search for contents created at a specific
point in time.
Click Search and the recorded data corresponding to the search criteria will be listed in
Search Results tab.
Search Results
The following is an example of search results. To sort the search results, click each column
header.

Honeywell HC30W45R2 Specifications

General

Windows operating systems supported	Windows 10, Windows 7
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	12.95 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Sensor type	CMOS
Optical sensor size	1/2.7 \
White balance	Auto, Manual
Minimum illumination	0.03 lx
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
Country of origin	Taiwan
International Protection (IP) code	IP66
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	30 m

Weight and Dimensions

Depth	99.8 mm
Width	133.3 mm
Weight	760 g
Package weight	1100 g
