Honeywell HC30W45R2 Configuration Guide

Configuring Camera Settings
31
This section describes how to configure video mode and video streaming properties (format,
resolution, frame rate, bit rate, I-frame interval, etc.).
Video Mode
Go to Setup Camera Setup  Video Mode.
Note
This function only applies to HC30W45R3/HC30WE5R3/HC30WB5R1/
HC30W45R2/HC30WB5R2/HC30WE5R2/HC30WF5R1 cameras.

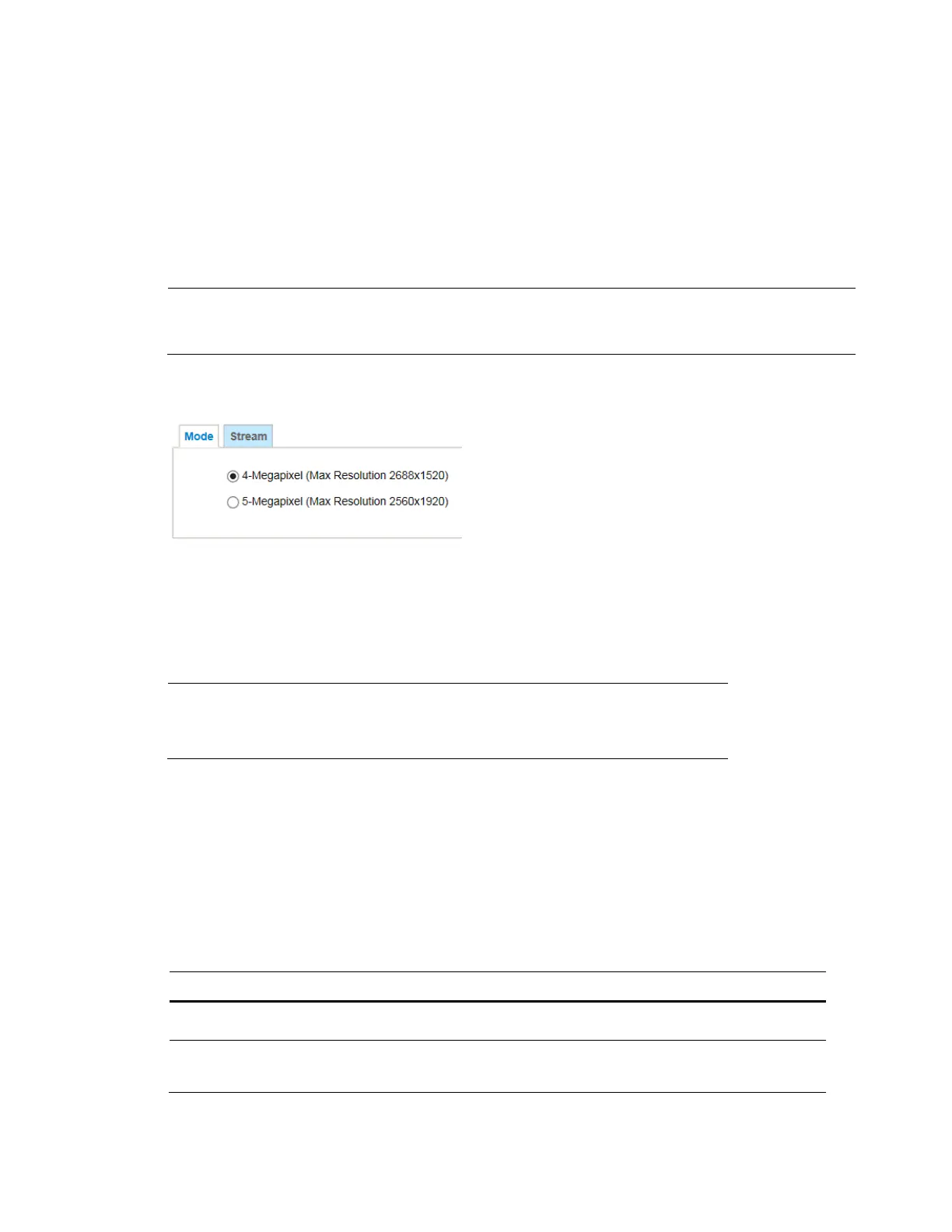

Figure 4-13 Video Mode
4-Megapixel (Max Resolution 2688x1520): Select it and the maximum resolution will be
2688x1520. The aspect ratio will be 16:9.
5-Megapixel (Max Resolution 2560x1920): Select it and the maximum resolution will be
2560x1920. The aspect ratio will be 4:3.
Note
Changing the video mode will clear the following settings: privacy
mask, exposure widow, motion, viewing window, preset position
and focus window.
Video Stream
Go to Setup Camera Setup  Video Stream.
The cameras support multiple streams with frame sizes ranging from 640 x 360 to
2560x1920 pixels.
See the following table for streams and frame sizes:
Table 4-1 Stream and Frame Size Matrix
Model Main Stream Sub Stream Third Stream
HC30W42R3
1920×1080/1600x904/
1360x768/1280x720/640x360
1280x720/
640x360
640x360
HC30W45R3
(4MP)
2688x1520/1920x1080/
1600x904/1280x720/640x360
1280x720/
640x360
640x360

Honeywell HC30W45R2 Specifications

General

Windows operating systems supported	Windows 10, Windows 7
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	12.95 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Sensor type	CMOS
Optical sensor size	1/2.7 \
White balance	Auto, Manual
Minimum illumination	0.03 lx
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
Country of origin	Taiwan
International Protection (IP) code	IP66
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	30 m

Weight and Dimensions

Depth	99.8 mm
Width	133.3 mm
Weight	760 g
Package weight	1100 g
