Configuring Network Settings
47

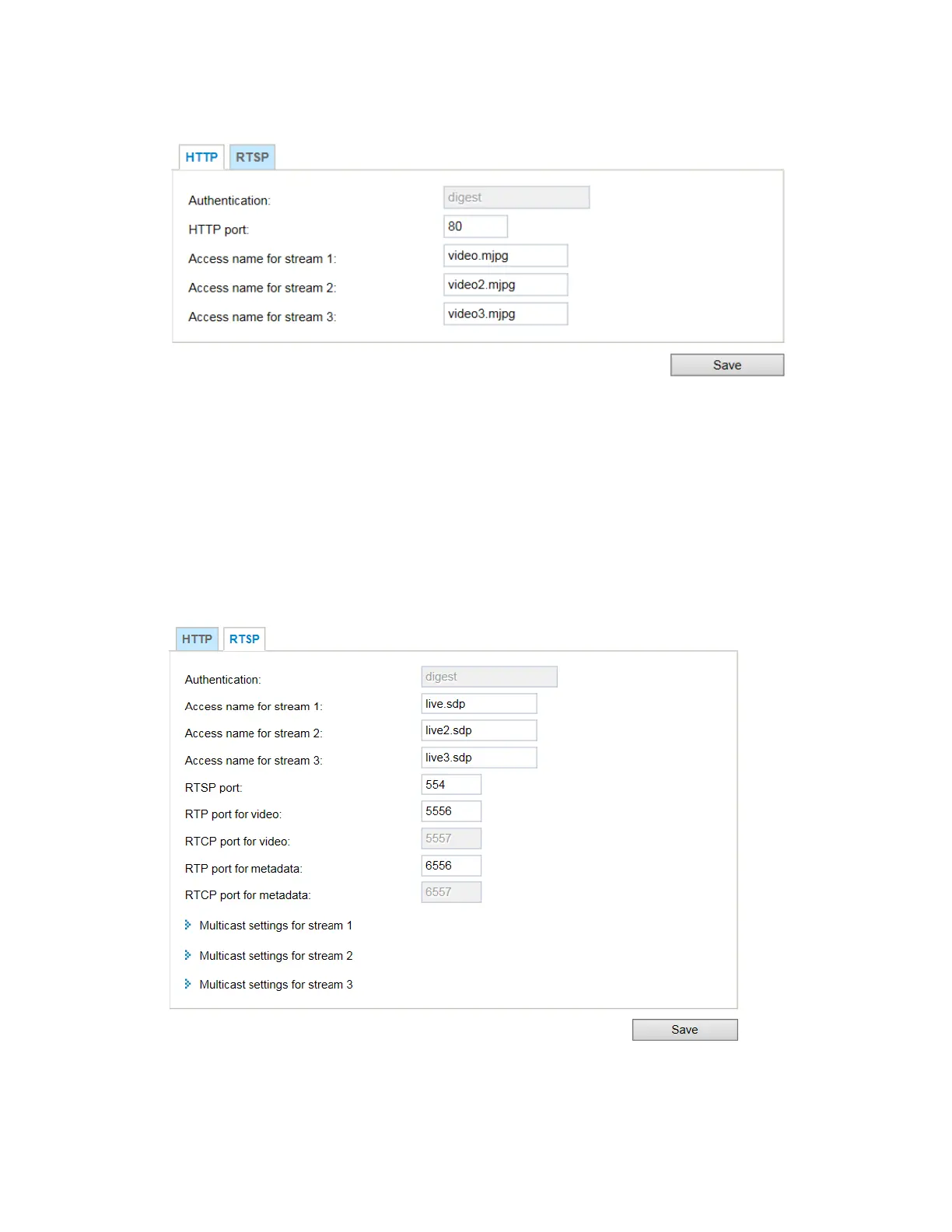

Figure 5-6 Streaming Protocols - HTTP
To utilize HTTP authentication, make sure that you have set a password for the camera first.
For more information, see Configuring User Accounts Settings on page 86.
Authentication (digest): User credentials are encrypted with MD5 algorithm which provide
better protection against unauthorized accesses.
HTTP port: By default, the HTTP port is set to 80. It can also be assigned to another port
number between 1025 and 65535.
Access name for stream 1 ~ 3: The camera supports multiple streams simultaneously. The
access name is used to identify different video streams. You can set up the video quality of
linked streams. For more information, see Video Stream on page 31.
Figure 5-7 Streaming Protocols RTSP
To utilize RTSP streaming authentication, make sure that you have set a password for
controlling the access to video stream first. For more information, see Configuring User
Accounts Settings on page 86.
