Configuring Camera Settings
33

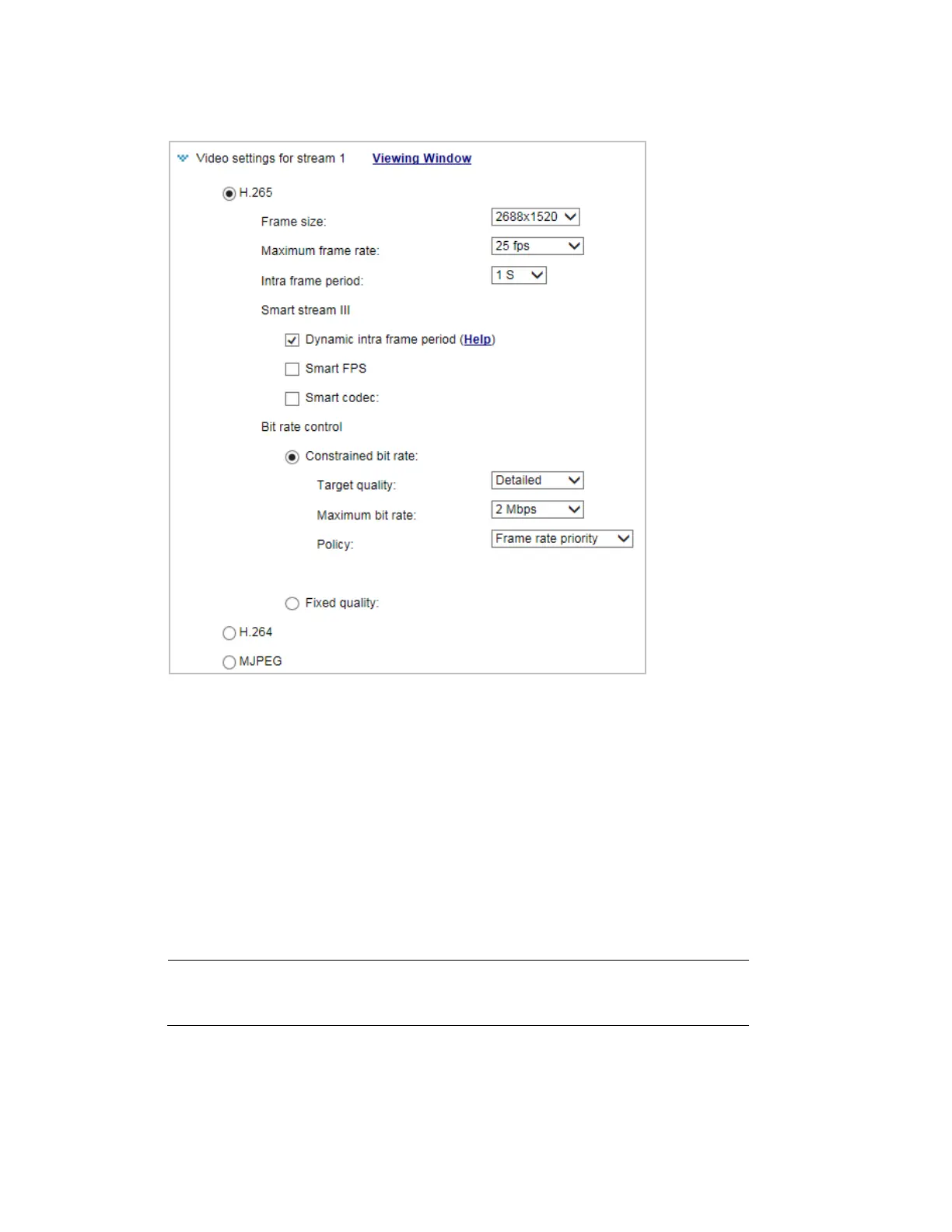

Figure 4-14 Video Stream
Viewing Window
Click Viewing Window to open the viewing region settings page. On this page, you can
configure the Region of Interest and the Frame Size for a video stream. For example, you can
crop only a portion of the image that is of your interest, and thus save the bandwidth needed
to transmit the video stream.
Follow the steps below to set up those settings for a stream:
1. Select a stream for which you want to set up the viewing window.
2. Select a Region of Interest from the drop-down list. The floating frame will resize
accordingly. If you want to set up a customized viewing region, you can also resize and
drag the floating frame to a desired position with your mouse.
Note
All the items in the Region of Interest should not be larger than the
Frame Size (current maximum resolution).
Click the stream item to display the detailed information. The maximum frame size will follow
your settings in the above Viewing Window sections.
