HRDP DVR User Guide
______________________________________________________________________________________________
Document 800-06801 Rev D 47
02/11
Motion/Event Configuration
Motion / Event Configuration has four sections; Input, Sensor, Action, and
Alarm Monitor. When an event comes in (Input) the DVR records the image
according to its settings (Camera Configuration) and triggers an alarm
(Action).

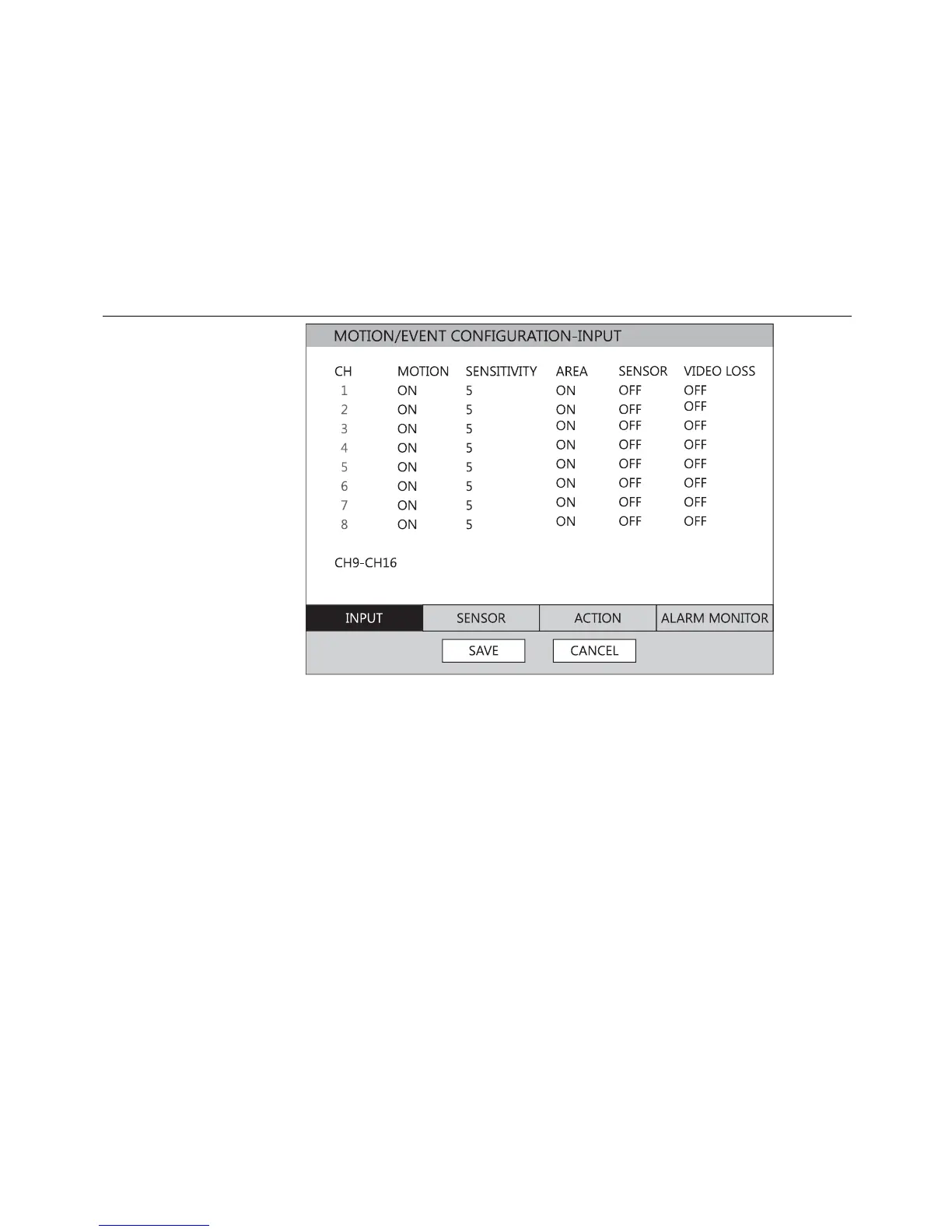

Input
CH – Channels 1-8 / Channels 9-16
MOTION – ON / OFF [Specify whether to use motion input or not.]
SENSITIVITY – 1~10 (1 = least sensitive, 10 = most sensitive)
AREA – Define the motion detection area.
SENSOR – Associate a sensor with the camera channel.
VIDEO LOSS – Trigger recording on video loss events.
