HRDP DVR User Guide
______________________________________________________________________________________________
Document 800-06801 Rev D 49
02/11
Sensor

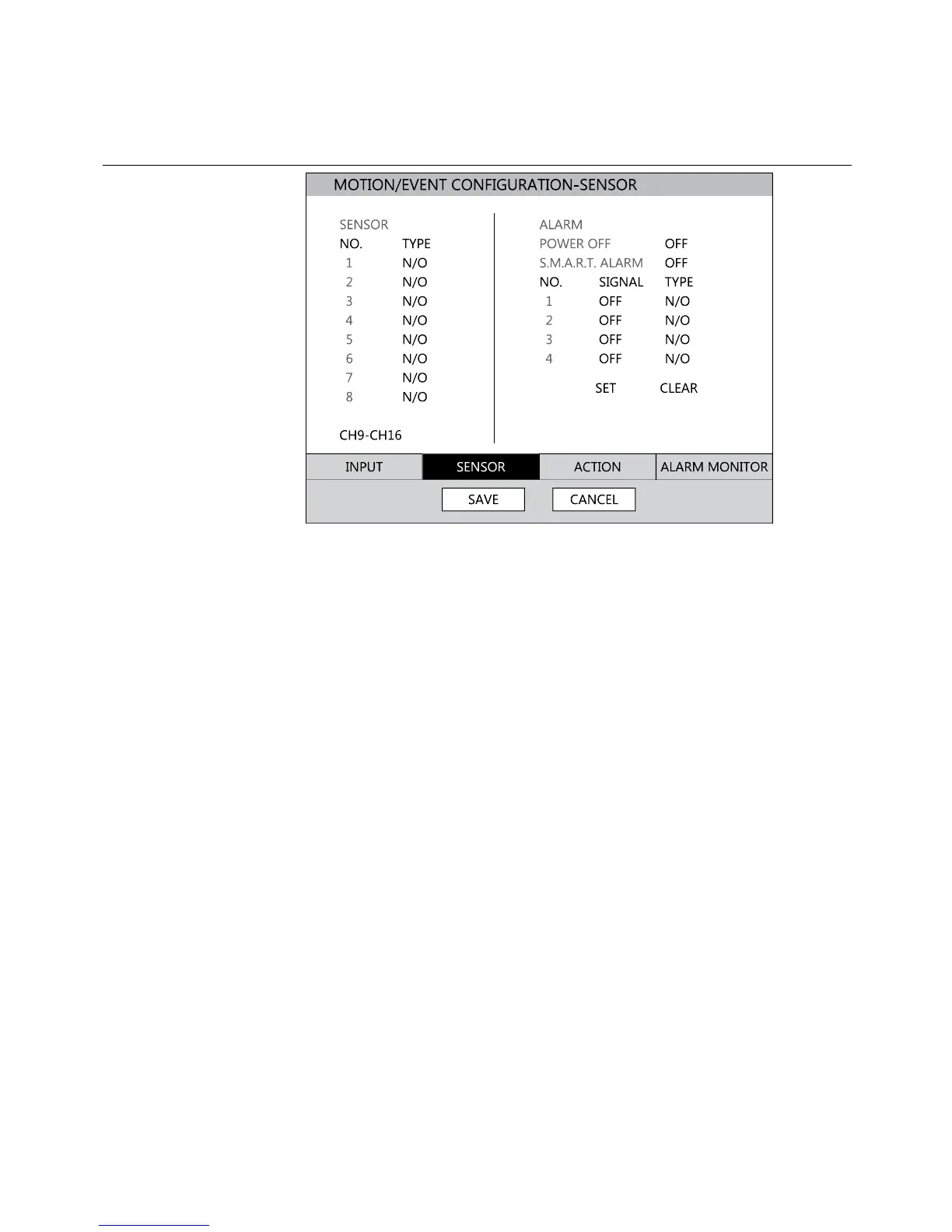

Sensor Setup
1. Use the arrow buttons to select Sensor 1 and press ENTER to change to
N/O (Normally Open) or N/C (Normally Closed).
2. Repeat for all sensors.
3. Select SAVE and press ENTER to save settings.
Alarm Setup
1. Use the arrow buttons to select Alarm1 and press ENTER to turn the
SIGNAL to OFF or ON.
2. Set each Alarm to N/O (Normally Open) or N/C (Normally Closed).
3. Repeat for all relays.
4. Select SAVE and press ENTER to save settings.
Power Off
The POWER OFF option is a preset function that triggers an alarm relay when
the DVR loses power. This function is preconfigured to set alarm relay No. 4
to ON and N/C. When a power loss occurs, alarm relay No. 4 will open. When
power is restored the alarm will close.
