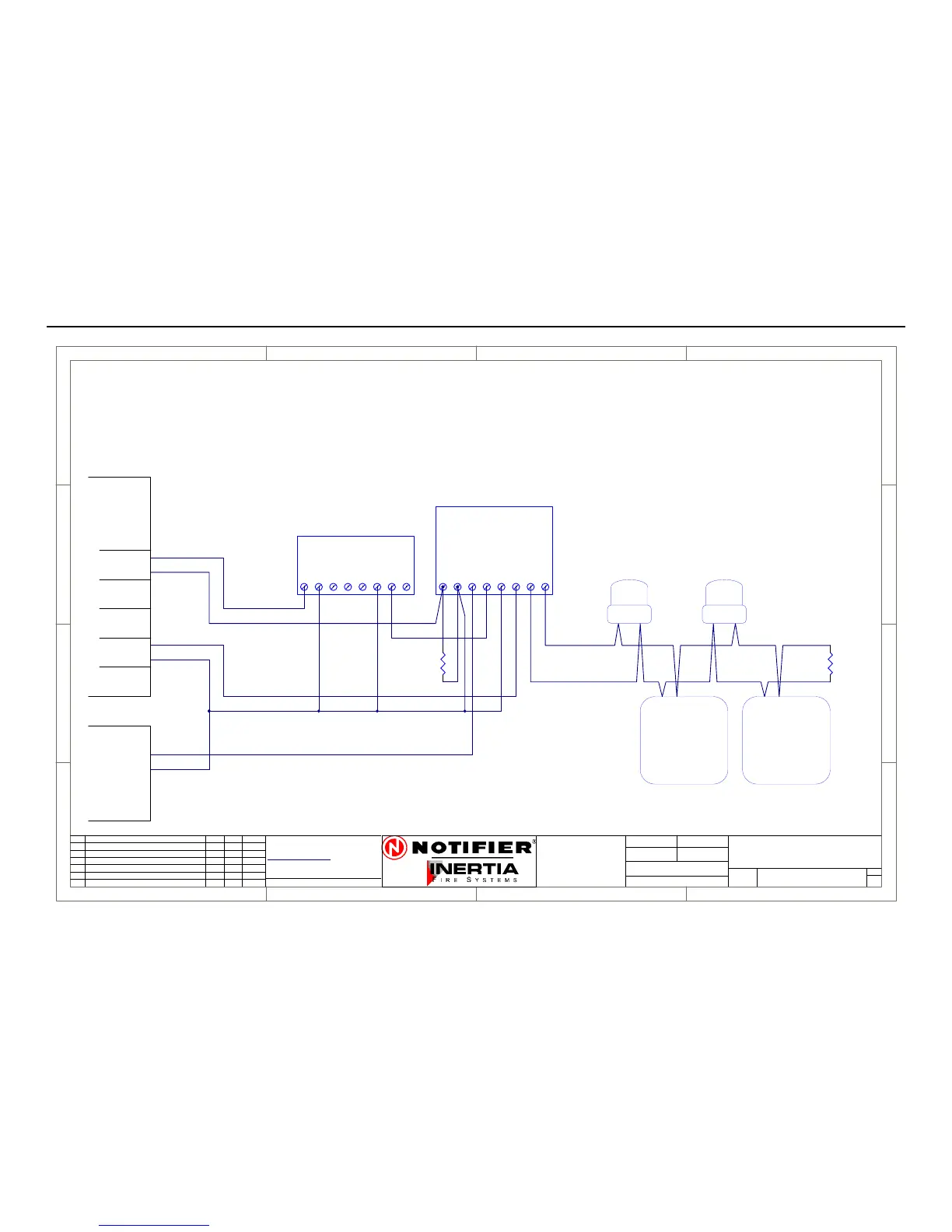

Auto Change Over Dual Sounder Connection Diagram
1
1
2
2
3
3
4
4
D D
C C
B B
A A
Rev
Size
Drg.
No.
Title
Sheet:
Drawn/
Traced
Engineer
Design
Approved
This Drawing must not be used for Construction
unless signed asapproved
7 Columbia Court,
Norwest Business Park
Baulkham Hills NSW 2153
AUSTRALIA
Tel
Fax
Email: support@inertia.com.au
A4
No.
Revision - revise on CAD. Do not amend by hand Eng. App. Date
Copyright
This document is & shall
remain theproperty of
Notifier Inertia Fire Systems
Unauthorised use of this
document in any wayis
prohibited.
Drawing File No.
C
O
61 2 9894 1444
61 2 9899 4156
=DocumentFullPathAndName
Of:
IFS 993
AL 0V EVAC +24 TERM A TERM B FAULT COM FAULT N/O
MONITORED DRIVER BOARD
EOL
1K8
1234
SOUNDER
1234
SOUNDER
ALERT STROBE
(RED)
0V 0V+24V+24V
(AMBER)
EVAC STROBE
NOTE:
REMOVE LINK JP1 FOR MANUAL
CHANGEOVER FROM ALERT TO EVAC
+24V 0V NO COM NC NO COM NC
N/O
BELL
0V
+24
ACF
0V
+24
0V
+24
AUX WARN
0V
+24
WARN SYS EOL
4K7
IFS2600
PCB2004
TERMINATION
NC
COM
NO
IFS803
RELAY
BOARD
ALERT ACTIVATION
EVAC ACTIVATION
A
IFS2600 MONITORED
2600-DUAL
DUAL SOUNDER
1 1
I PERRY
I PERRY
MANUAL-SNDR
MANUAL CHANGEOVER
23/8/05
IFS958 RELAY BOARD
DUAL TONE AS2220 DUAL TONE AS2220
NOTE:
Maximumcapacity is 10 sounders
or 4 strobes
RED REDBLACK BLACK
