NCD Instruction Manual — P/N LS10210-051NF-E:C 2/18/2019 15
Installing the NCD on ONYX Series panels. Installation
NFS-320SYS and NFS2-640 Mounting
The Network Control Display (NCD) can only be installed in the LEFT mounting position on the dress plate DP-GDIS1
Option boards
Mounted on BMP-1
Dress Panel
DP-GDIS1
NCD
CPS-24/E
Backbox

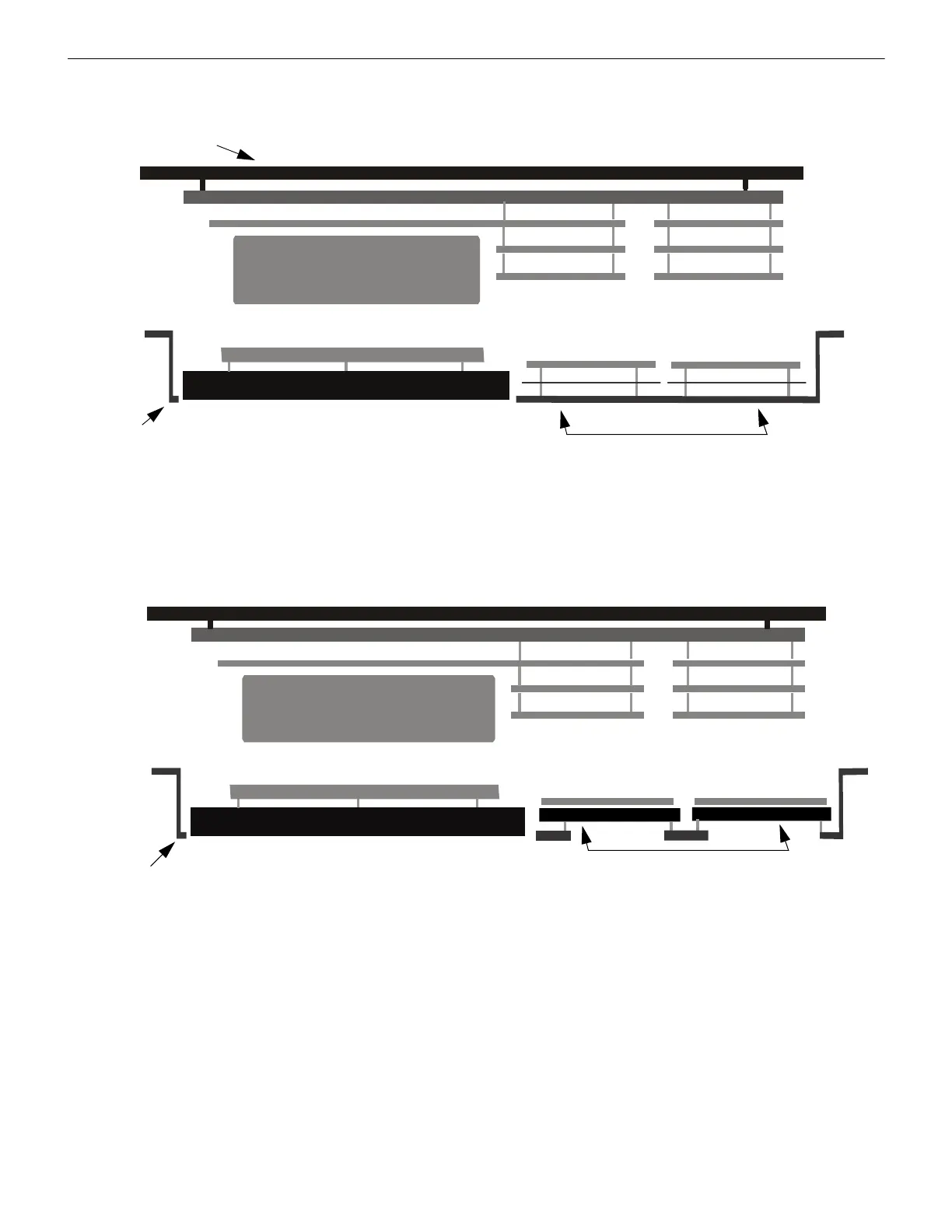

Top view of the NFS2-640 and the NFS-320SYS with NCD and
Option boards installed.
NCD
Annunciators
Top View of the NFS2-640 and the NFS-320SYS with the NCD and Annunciators
installed.
CPS-24/E
Dress Panel
DP-GDIS1
Figure 2.4 Installing the NCD on the NFS2-640 and the NFS-320SYS
To Next Page
