Honeywell NOTIFIER NCD User Manual

26 NCD Instruction Manual — P/N LS10210-051NF-E:C 2/18/2019
Programming Menu Navigation
3.4.3 Mapping
Tapping the MAPPING touch point on the Network Setting screen will display the Network Mapping options for the NCD.
View Tap the touch point VIEW to
display the menu view options for
the network nodes connected to
the NCD.
All Online Nodes.
Allows the user to view all nodes
that are on-line and will indicate
whether or not they are mapped
nodes. It allows the user to view
what panel the node is mapped to,
and what node number it is
assigned to.
Mapped Nodes
Allows the user to view all
mapped nodes on a system. It will
show the node number and what
panel it is assigned to.
Unmapped Nodes Allows the
user to view all unmapped nodes
on a system. It will show the node
number and what panel it is
assigned to.
FIRE ALARM
CO ALARM
SUPERVISORY
TROUBLE
DISABLE
OTHER
System Normal
Ack
Silence
Reset
Thu 2/22/18
1:38:06PM
SIGNALS
SILENCED
VIEW
Mapping - Mapped Nodes (2)
Menu - > Programming - > Network - > Mapping
NFS2-3030 Mapped for: Events, Drill
Mapped for: Events, Drill
Node:025
(This Node)
Node:050
2017ADC - NFS2-3030
NCD Prototype

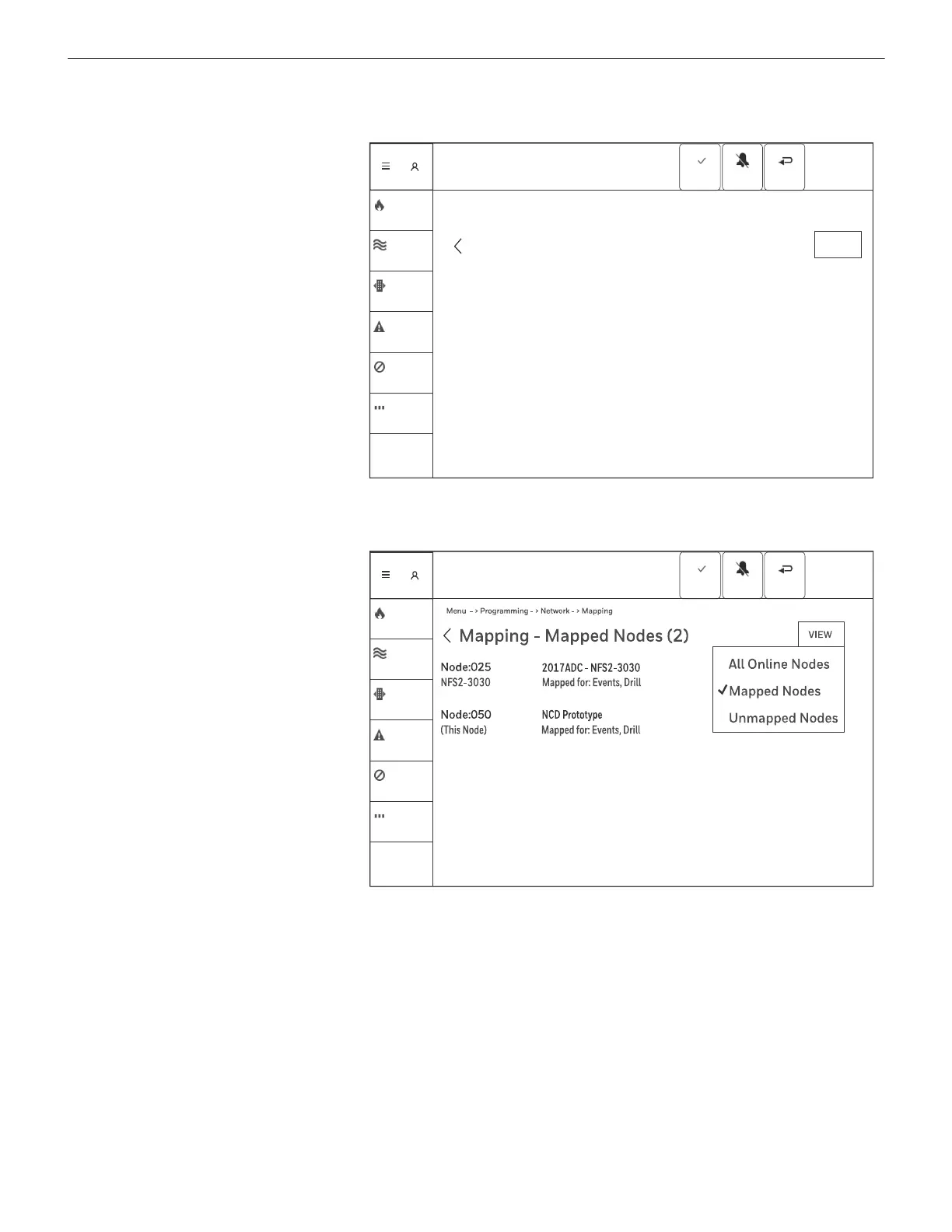

Figure 3.10 Mapping View Screen
FIRE ALARM
CO ALARM
SUPERVISORY
TROUBLE
DISABLE
OTHER
System Normal
Ack
Silence
Reset
Thu 2/22/18
1:38:06PM
SIGNALS
SILENCED
Figure 3.11 Mapping Screen
