NCD Instruction Manual — P/N LS10210-051NF-E:C 2/18/2019 27

Test/Diagnostics Programming

3.5 Test/Diagnostics

Tapping on the Test/Diagnostics touch

point on the menu screen will display

diagnostic and lamp test options for the

NCD.

Lamp Test Tap the LAMP TEST touch

point to turn on all pixels on the screen.

This will illuminate the entire screen as

well as the AC Power and Off Normal

LED for approximately four seconds.

During this time a tone will sound. A

black spot on the screen will indicate

that a pixel is out.

Diagnostics Tap the DIAGNOSTICS

touch point allows the user to view the

Circuit Board temperature and the CPU

temperature. It displays the highest

circuit board temperature and the highest

CPU temperature, each may be reset by

tapping on them. The user will be

prompted to tap

RESET to reset the

readings.

History Tap the HISTORY touch point

allows the user to view the panel history

as well as the network history. History

views may also be filtered. Tap on the

touch point

FILTER. A touch point for

SEARCH and CLEAR will appear along

with a virtual keyboard Tap in a date

under date range to search a specific date

range. Tap in a keyword in the

CONTAINS

TEXT section to search the history for

particular text. To clear a search tap the

touch point CLEAR. Tap on the EXCLUDE

BACKGROUND ACTIVATIONS check box

to select that feature. Tap again to clear

the field.

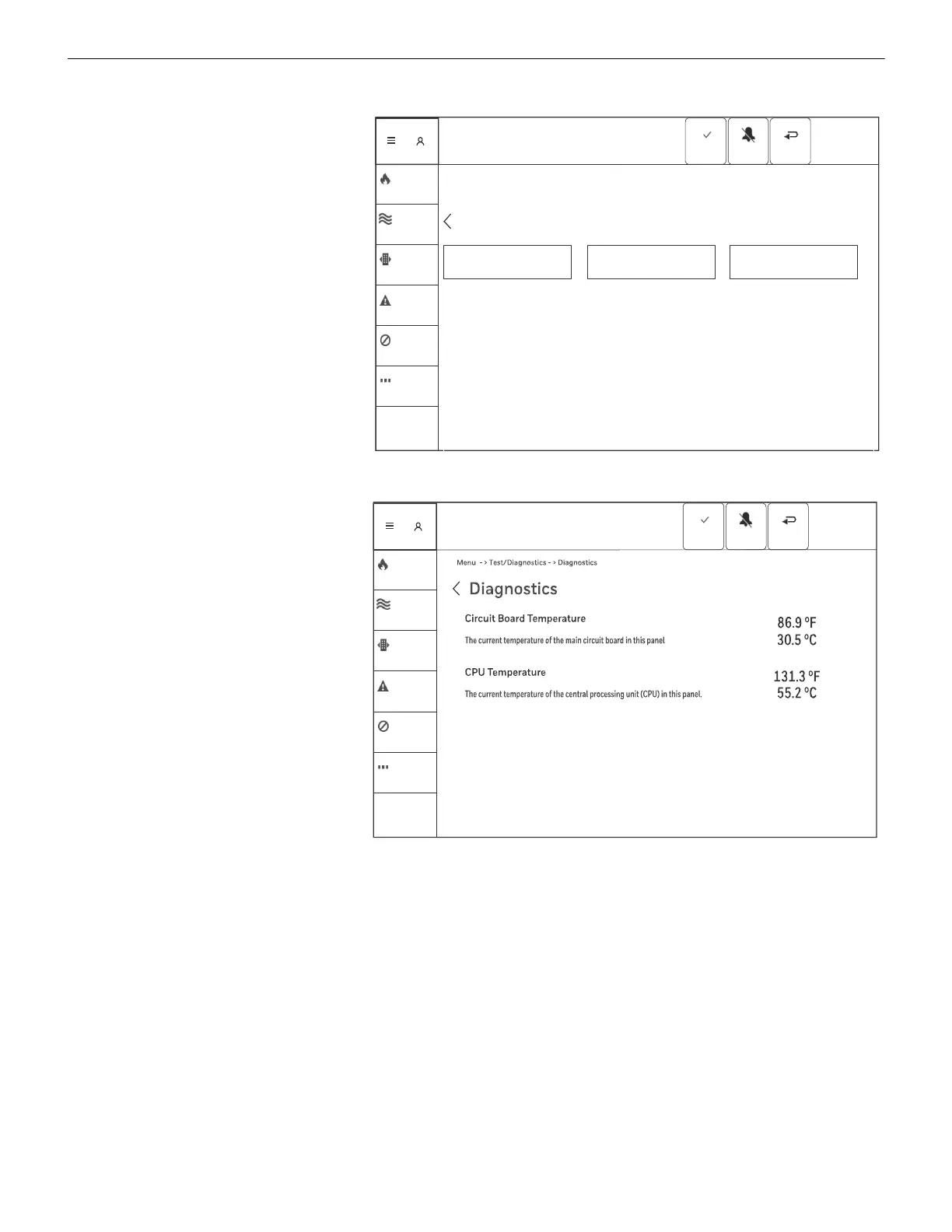

Figure 3.12 Test/Diagnostics Screen

FIRE ALARM

CO ALARM

SUPERVISORY

TROUBLE

DISABLE

OTHER

System Normal

Ack

Silence

Reset

Thu 2/22/18

1:38:06PM

SIGNALS

SILENCED

DIAGNOSTICS

LAMP TEST

HISTORY

Test/Diagnostics

Menu - > Test/Diagnostics

Figure 3.13 Diagnostics Screen
