The Relay screen allows you to program the outputs. The available options are:
Events
programming of the event that activates the output
Operating mode
output operating mode (instantaneous, impulsive, timed).
Event type
selects the type of event that can be associated with the output:
Sensor event (Alarm, Fault, Low value, etc.) or Generic event
(Alarm, Fault, Mains failure, Low battery, etc.).
Relay type
depends on the Relay Type chosen. Example, in case of an event
from the Sensor can be: Fault, Alarm1, Alarm2 etc.
OR
With the OR function, to activate a programmed output, all that is
needed is one of the events associated with the output
AND
On the contrary, if you want to condition the output activation to the
contemporary presence of more than one of the events associated
to the output (AND function), use the "AND" option
Associated Sensors is the window where you can choose the sensors to associate
with the output.
Add/remove to open the Associated Sensors window
Programming a new output
Select an output, through the option Relay Type choose if it is an output associated to a
Sensor or a Generic output.
Sensor: Select Sensor in Relay Type. Then from the Event Type window select in which
case the output must be activated: Full-scale, Alarm1, Alarm2, Alarm3, Out-of-scale,
Low value, Sensor fault.

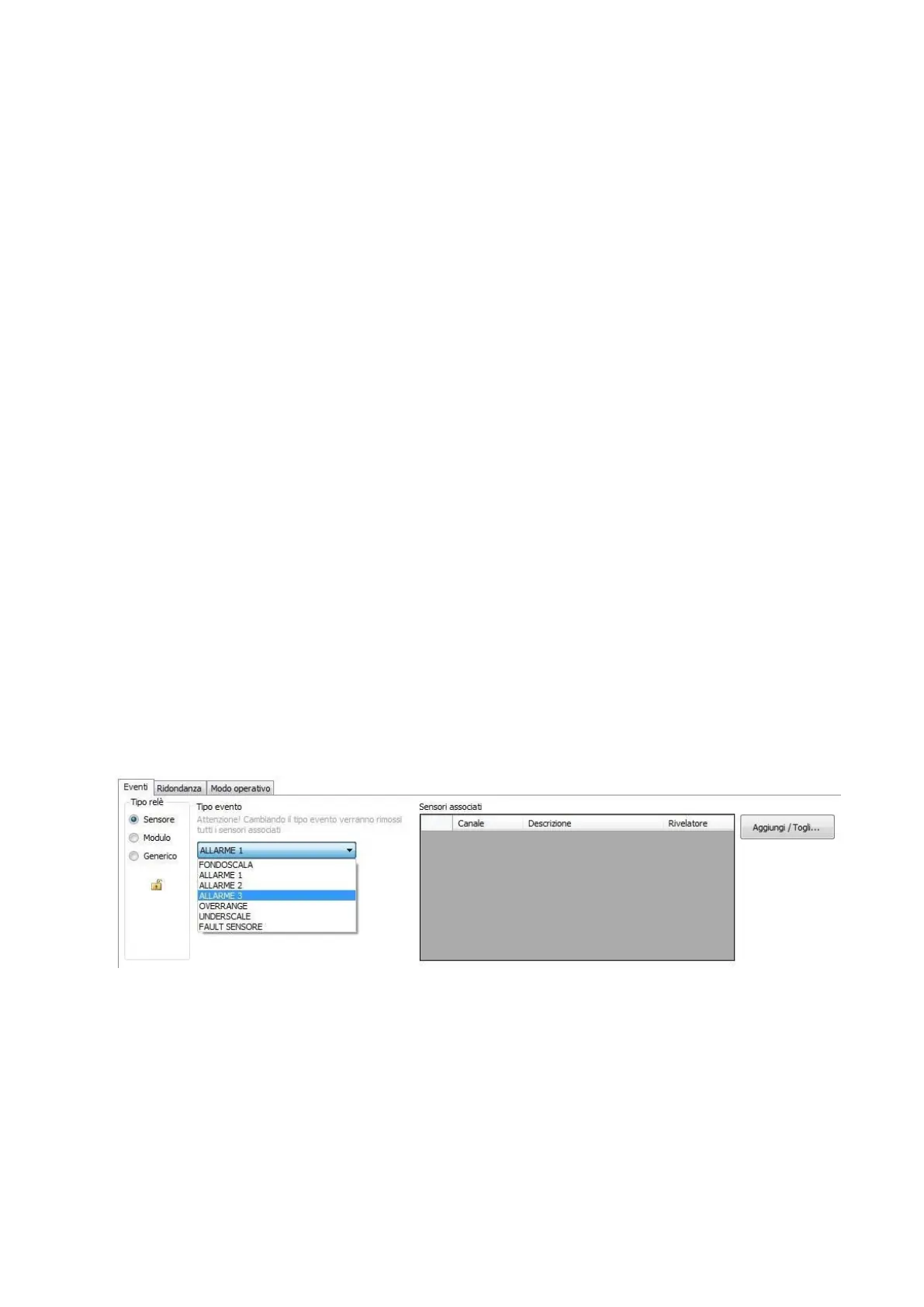

Fig. 4.5.4 d) Event Type selection
