Pressing the Add/Delete button, the Choose Sensor window will open where to select
the sensor address or addresses to associate with the output.
The padlock shown to the left of the Event Type list indicates whether the relay output is
stored or not.
Lock closed means output stored (a User Reset is required to restore normal status after
an Alarm).

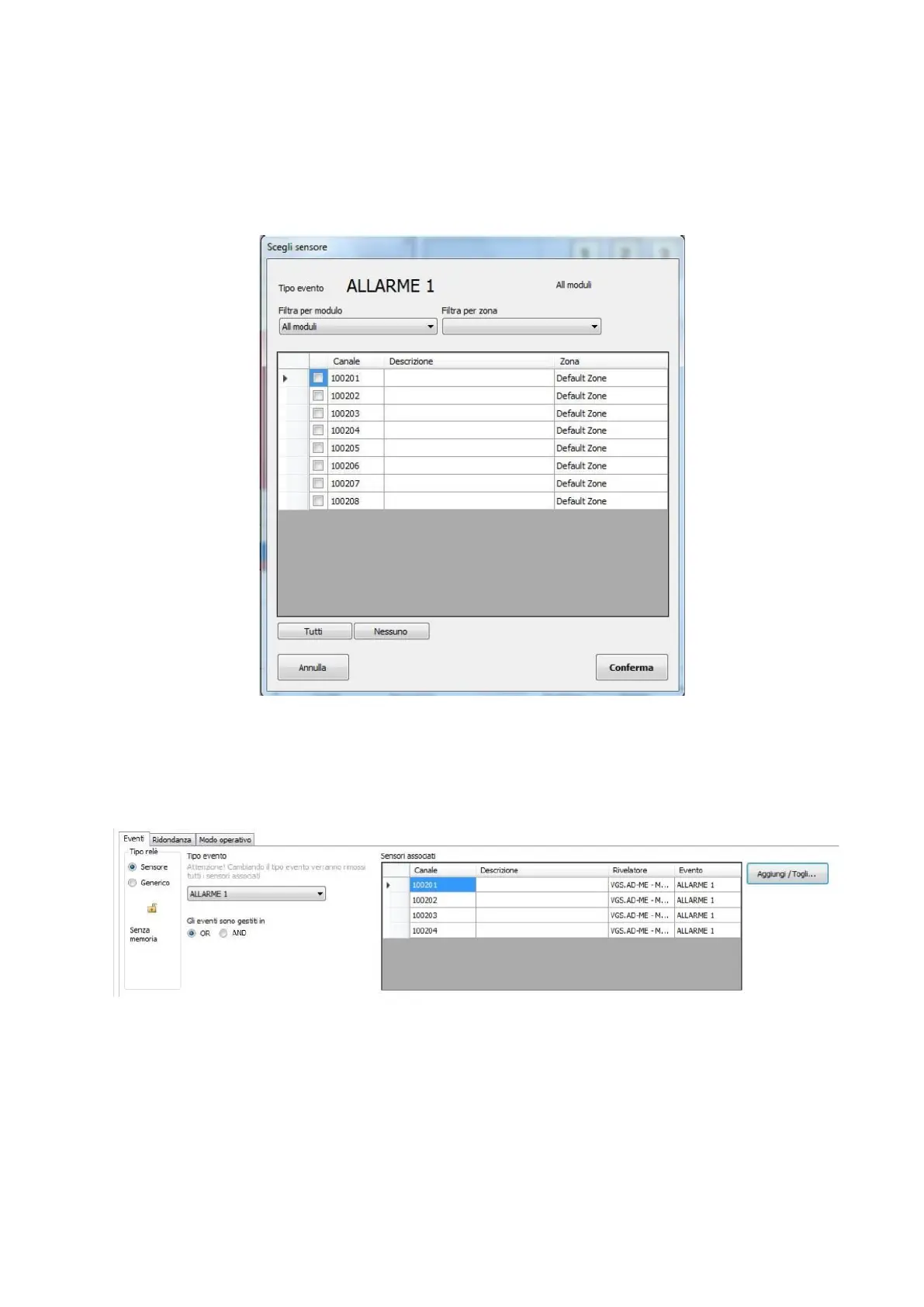

Fig. 4.5.4 e) Sensor selection window
After checking the sensors to be associated, press Confirm.
Fig. 4.5.4 f) Associated Sensors window, after selecting
Note: Only one type of event can be associated to each output. So only Alarms 1 or only
Alarms 3 or only Faults.
Generic" event: select Generic to associate the output with a system event, among those
proposed in the list.
