FACP Configuration Templates Template 10: Dual Hazard - Single Detector

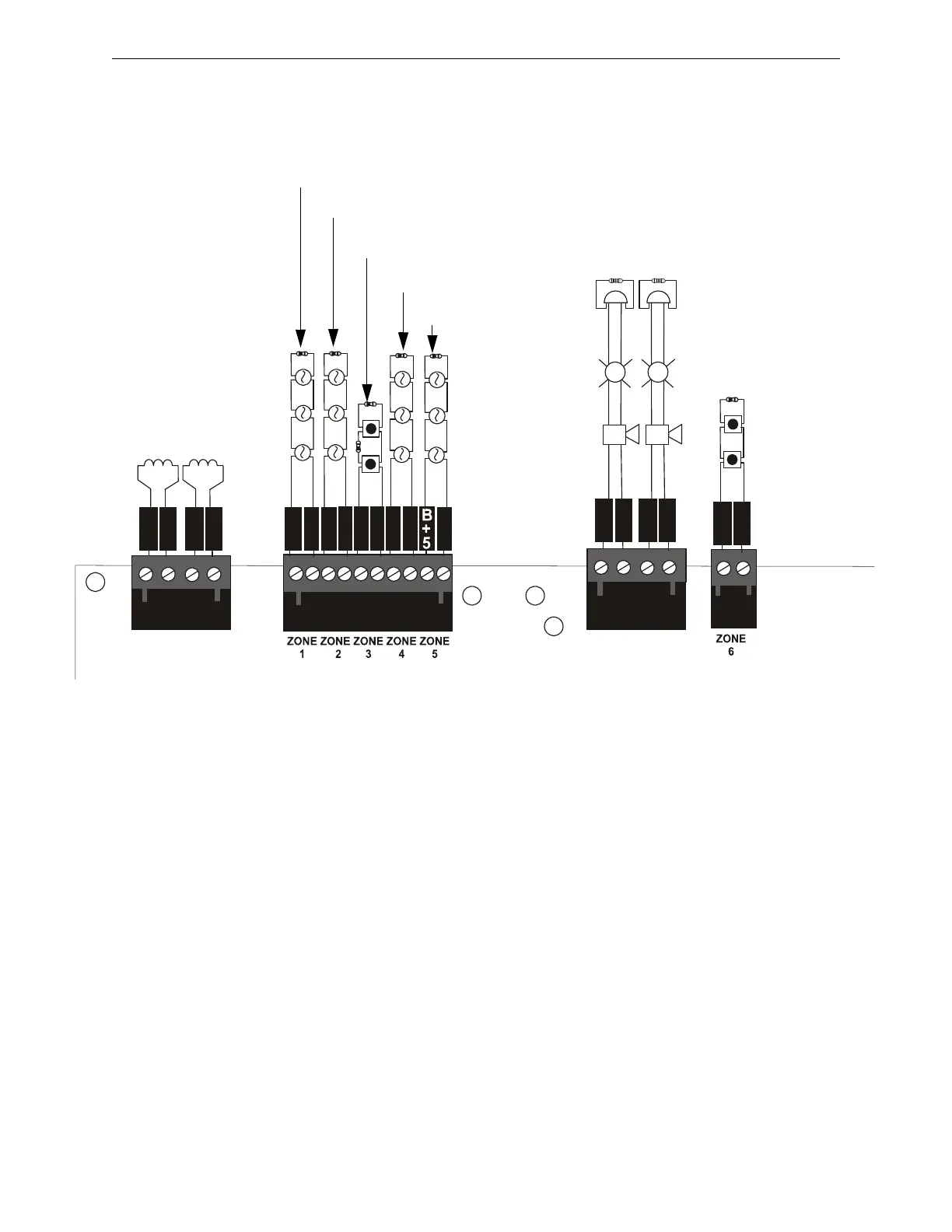

Device Installation Example for Template 10
Notes:
1. All End-of-Line Resistors, illustrated in this example, are 4.7KΩ, ½ watt (PN: 71252).
2. All devices are connected as Class B circuits. For details on connecting as Class A circuits,
refer to “N-CAC-5X Class A Converter Module” on page 31.
TB5
TB4
TB7
TB6
OUT1 OUT2
OUT3 OUT4
B
+
B
-
11
B
+
B
-
22
B
+
B
-
3
3
B
+
B
-
11
B
+
B
-
6
6
+ - + -
+ - + -
+ - + - + - + - + -
+ -
B
-
5
B
+
B
-
33
B
+
B
-
22
B
+
B
-
4
4
B
+
B
-
4
4
+
+
+
+
+
+
Input Circuit #1
2-Wire Smoke
Output
Circuit #1
Release
Solenoid 1
Input Circuit
#6
Manual
Release/Abort
Sw. Combo
Output
Circuit #4
Release
Stage
Coded
Input Circuit #2
2-Wire Smoke
agenttemp10.wmf
Output
Circuit #3
Release
Stage
Coded
Output
Circuit #2
Release
Solenoid 2
Input Circuit #3
Manual Release/Abort Sw. Combo
Input Circuit #4
2-Wire Smoke
Input Circuit #5
2-Wire Smoke
