RP-2002 Series Manual — P/N 53039:E6 1/26/2017 139
Template 13: HP CO2 Single Detector FACP Configuration Templates

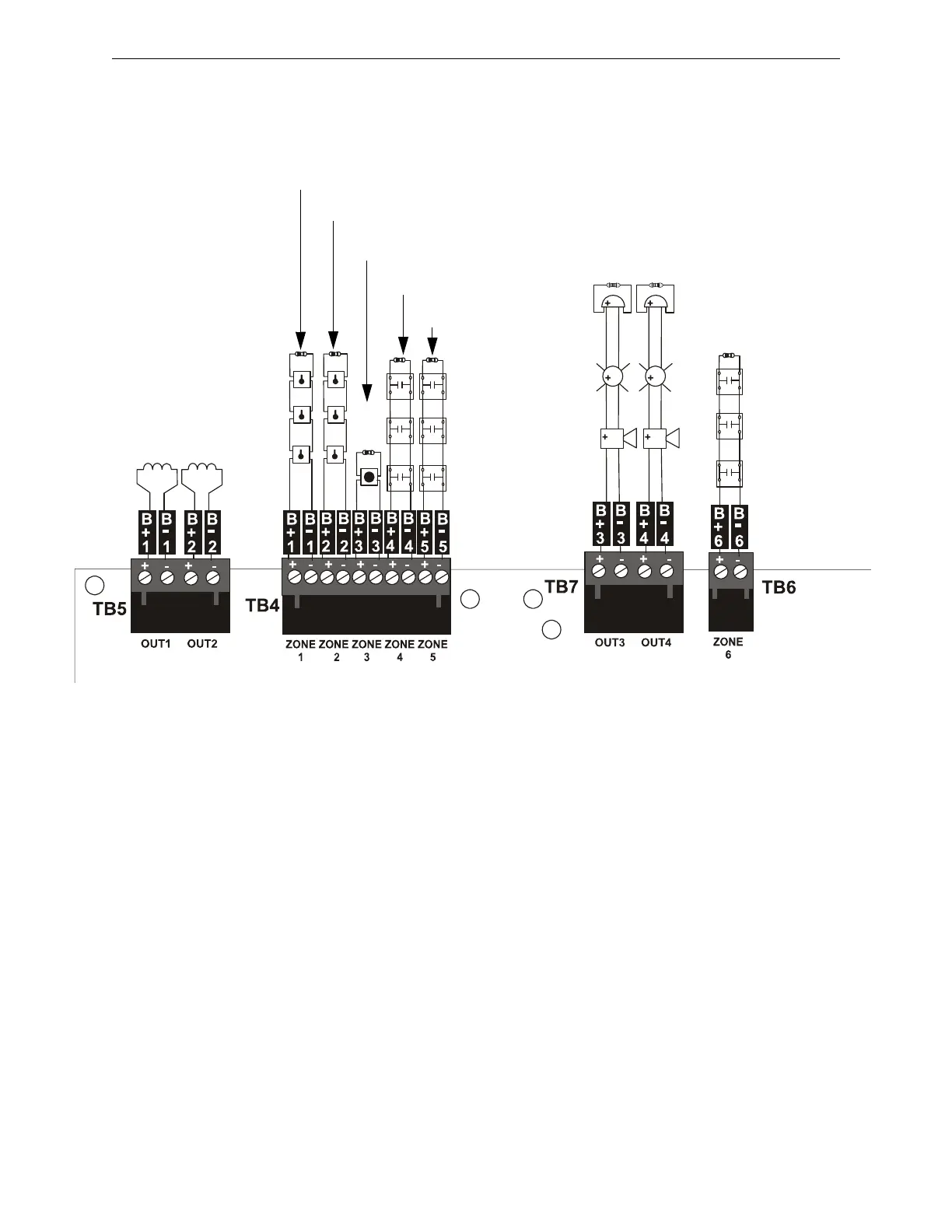

Device Installation Example for Template 13
Notes:
1. All End-of-Line Resistors, illustrated in this example, are 4.7KΩ, ½ watt (PN: 71252).
2. All devices are connected as Class B circuits. For details on connecting as Class A circuits,
refer to “N-CAC-5X Class A Converter Module” on page 31.
Input Circuit #1
2-Wire Heat
Input Circuit #3
Manual Release
Input Circuit #4
Discharge Pressure
Input Circuit #5
Supervisory
Output
Circuit #1
Release
Solenoid 1
Output
Circuit #3
Alarm
NAC
Input Circuit
#6
Supervisory
Output
Circuit #4
Release
Stage
Discharge
Input Circuit #2
2-Wire Heat
agenttemp3.cdr
Output
Circuit #2
Release
Solenoid 2
To Next Page
