RP-2002 Series Manual — P/N 53039:E6 1/26/2017 21
Backbox Mounting Installation
9050UDencl.cdr

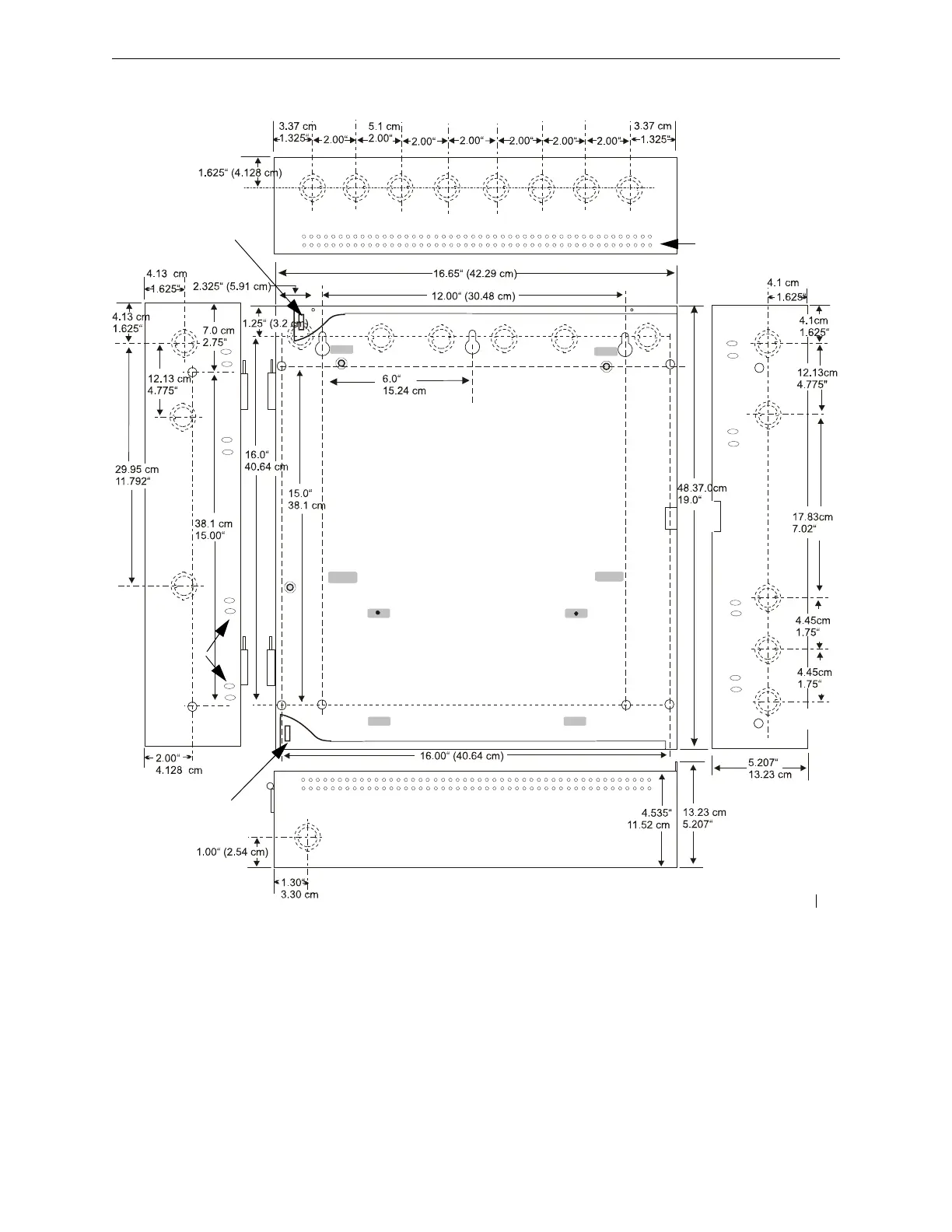

Figure 2.2 Cabinet Dimensions
Hinge Slot for optional
Dress Panel
Semi-Flush
mounting hole
Mounting
slots for
optional
Trim Ring
Hinge Slot for optional
Dress Panel
Semi-Flush Mounting
Do not recess box more
than 3.875” into wall to
avoid covering venting
holes on top of box.
