OMNI-408/OMNI-408EU Installation and Setup Guide
4–2
ALARM
FIRE
INSTANT
BYPASS
TRBL
PAGE
STAY
SUPRVSN
CANCELED
CHIME
BAT
NOT READY
PHONE
TEST
TAMPER NO AC
OMNI-KP Fixed-Word Keypad
ALARM
FIRE
INSTANT
BYPASS
TRBL
PAGE
STAY
SUPRVSN
CANCELED
CHIME
BAT
NOT READY
PHONE
TEST
TAMPER NO AC
OMNI-KP-US Fixed-Word Keypad

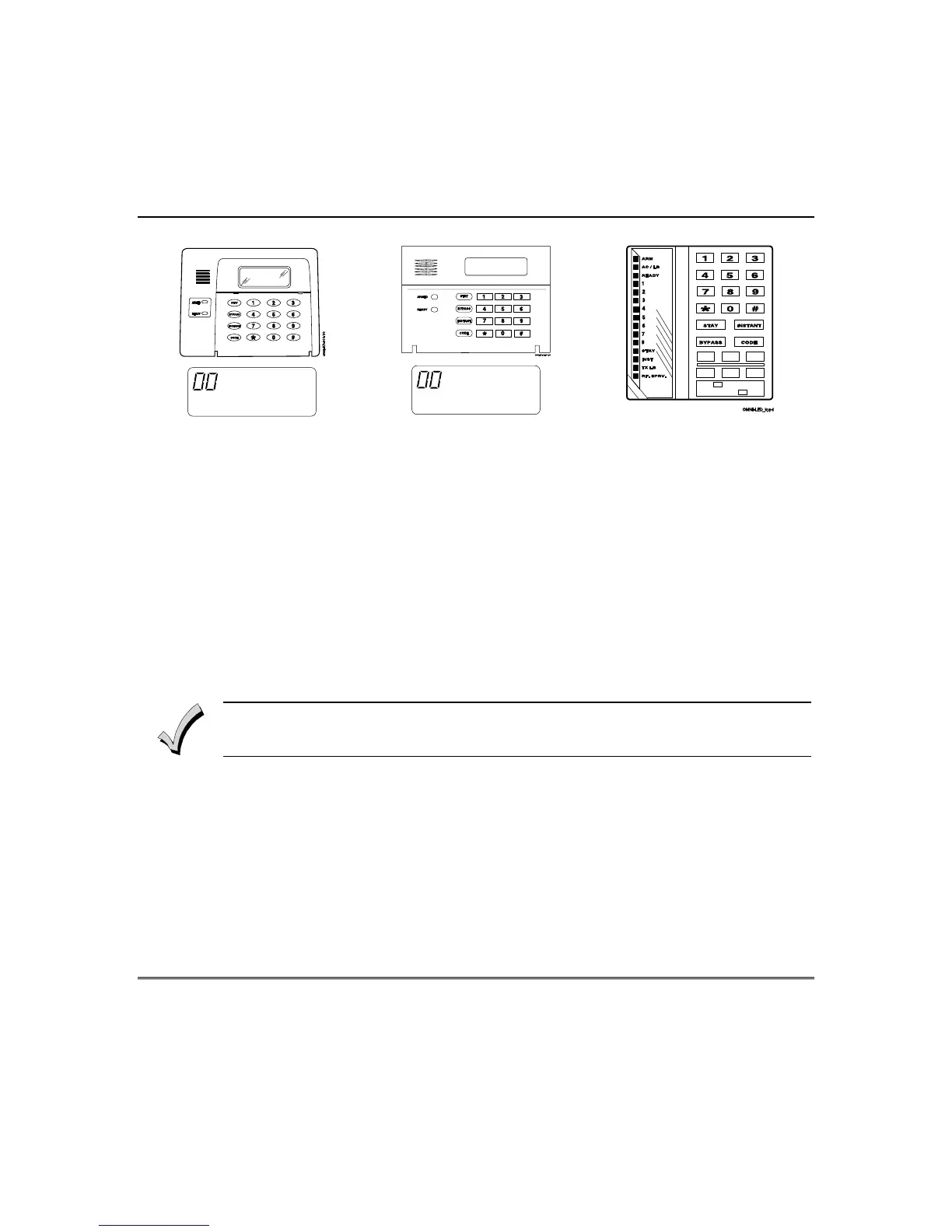

XK108 LED Keypad
NOTE: When using the XK108
keypad, you can not use any other
type of keypad on the system.
NOTE: OMNI-LCD, OMNI-KP, and XK7LC keypads are not for sale in the USA.
ZONE STATUS LEDS (XK108)
These LEDs display the current zone status, including alarms, bypasses, and faults. Each condition
causes these LEDs to operate differently, as follows:
ALARMS — Fast Blink (approx. 150mS ON - 150mS OFF).
TROUBLES — Slow Pulse (approx. 600mS ON - 600mS OFF).
BYPASSES — Blink (100mS ON - 900mS OFF). Zone bypasses are displayed as a very slow blink of
the zone LED light.
FAULTED ZONES — Solid ON. Faulted zones are the lowest-priority indication. Faulted burglary
zones are displayed with the LED solidly ON while the system is disarmed.
NORMAL — OFF
Upon entry, the keypad sounder annunciates to warn the user to disarm the system. In
addition, the respective zone LED(s) are ON to indicate which zones are violated (e.g., entry
door and motion detector).
ARM/DISARM LED (all keypads)
This LED/display indicates that the system is currently armed (ON) or disarmed (OFF).
Fast Blink Alarm Mode (alarms have occurred)
Slow Blink Unable to communicate with central station
STAY LED
This LED/display indicates that the system has been armed in the STAY, STAY/INSTANT, or
AUTOSTAY mode. STAY/INSTANT is enabled in Programming Question 10, Location 3. The STAY
LED indicates the following:
ON Interior zones are bypassed
OFF Interior zones are normal
