Chapter 1 — About the Printer
14 PC42t Desktop Printer User Guide

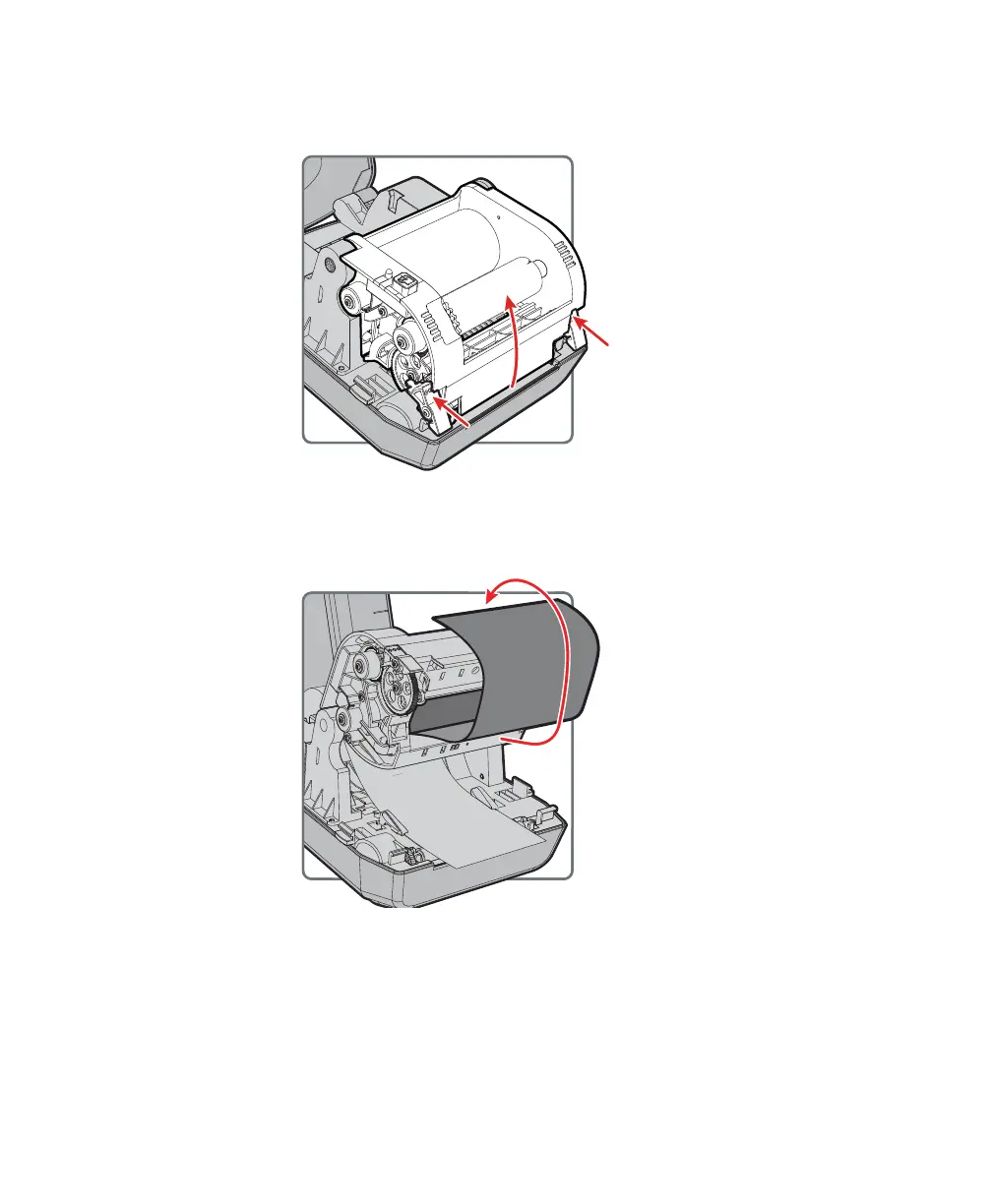

6 Press in on the top of both locking tabs to open the print and ribbon
mechanism.
7 Feed the ribbon down through the opening in the bottom of the print
and ribbon mechanism, over the printhead and the front of the
mechanism, and attach it to the empty takeup core.
To Next Page
