Chapter 1 — About the Printer
PC42t Desktop Printer User Guide 13

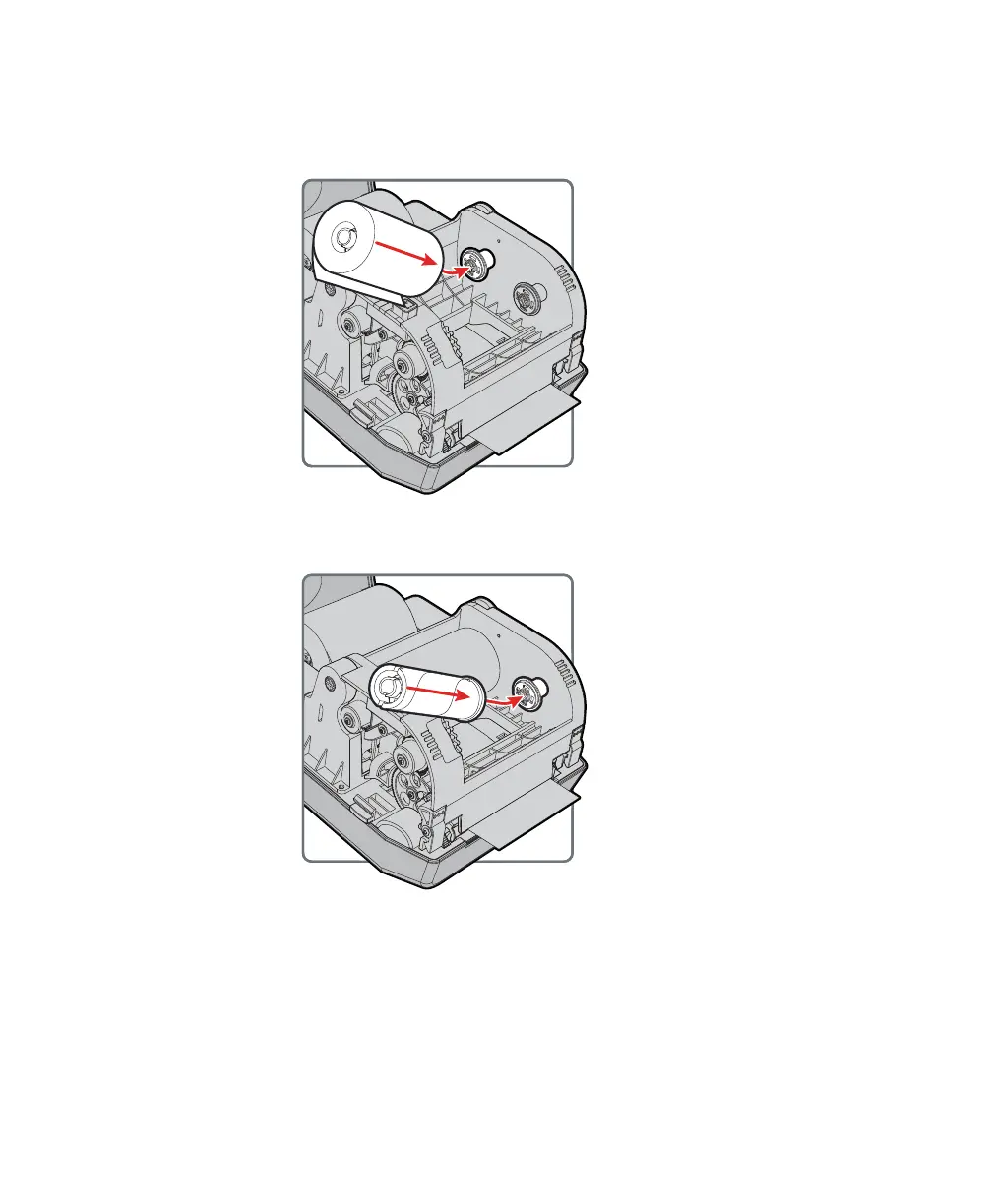

3 Place the thermal transfer ribbon roll between the rear ribbon
holders. The ribbon should come off of the roll as shown in the
illustration.
4 Place the empty ribbon takeup core between the front takeup core
holders.
5 Make sure both ribbon adapters are “locked” into the ribbon wheels
on the left side of the print and ribbon mechanism.
