Honeywell ScanPal EDA5S User Manual

6 EDA5S Mobile Computer Series User Guide

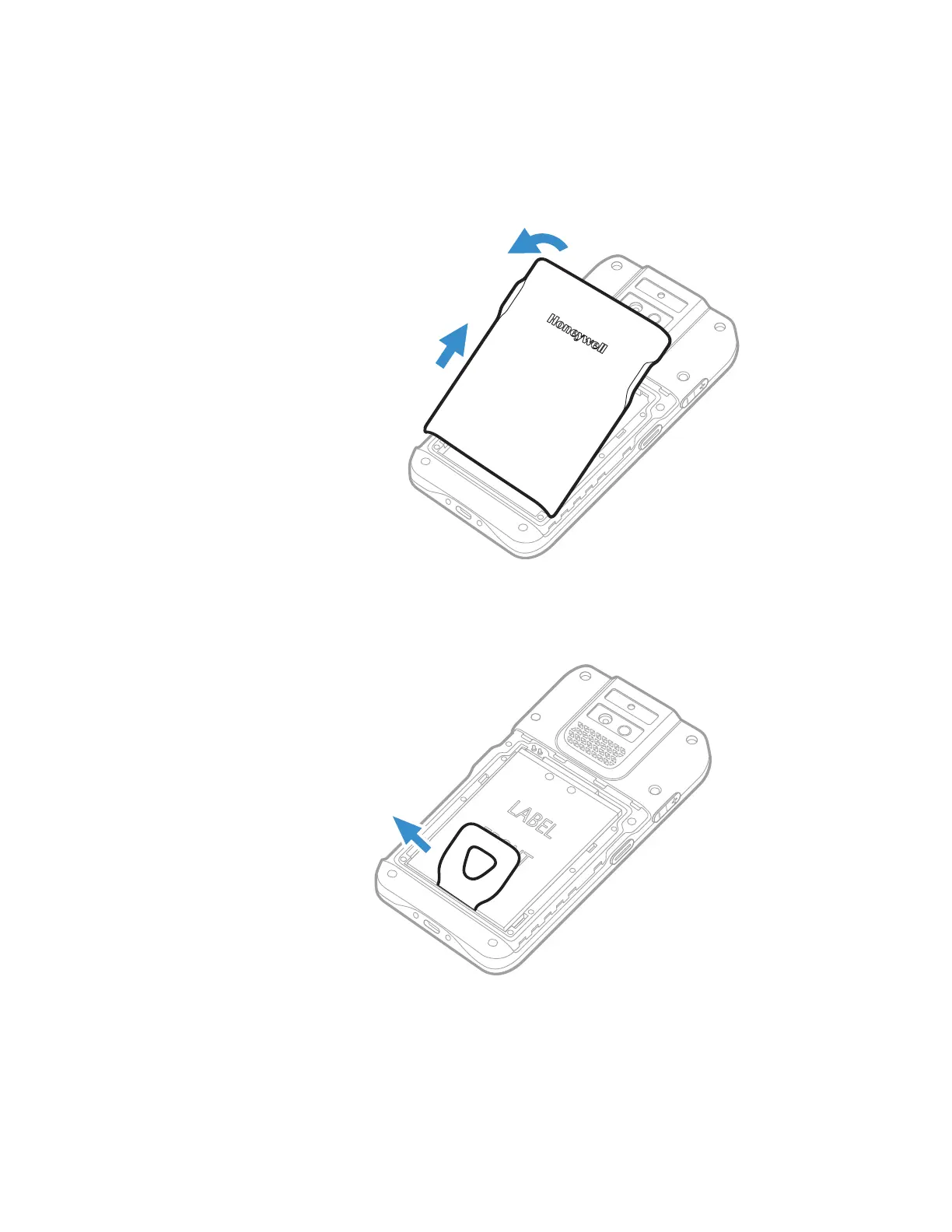

Remove the Battery
1. Press and hold the Power button until the options menu appears.
2. Tap Power off.
3. Lift the battery cover and remove it.
4. Pull up the tab on the back of the battery to lift and remove it from the
computer.

Honeywell ScanPal EDA5S Specifications

General

Display diagonal	5.5 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1440 x 720 pixels
Internal memory	- GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 90 %
Scanner type	1D/2D
Product color	Black, Grey
LED indicators	Battery level, Operation
International Protection (IP) code	IP67
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Antenna type	1x1
Data network	EDGE, GSM, HSPA+, LTE, UMTS
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.1
Security algorithms	LEAP, PEAP, TLS, TTLS, WEP, WPA, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
Networking standards	IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w
Number of cores	8
Processor family	Snapdragon
Processor frequency	2 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP
USB 2.0 ports quantity	1
Battery voltage	3.8 V
Battery capacity	3060 mAh
Battery life (max)	8 h
Battery recharge time (on)	3.5 h

Weight and Dimensions

Depth	11.2 mm
Width	75 mm
Height	159 mm
Weight	218 g
