3.2 Considerations for SFC/SCT
Install SFC battery
pack
If the SFC battery pack was removed for shipping and/or storage, you
will have to install the battery pack and charge the batteries before you
can operate the SFC.
The procedure in Table 7 outlines the steps for the battery pack.
Table 7 Installing and Charging SFC Battery Pack
Step Action
1
Turn SFC face down on working surface. Use metric hex wrench
(2.5 mm) to remove screws in battery compartment cover and
remove cover.
2
Insert battery pack in compartment and connect plug in compartment
to pin on battery back

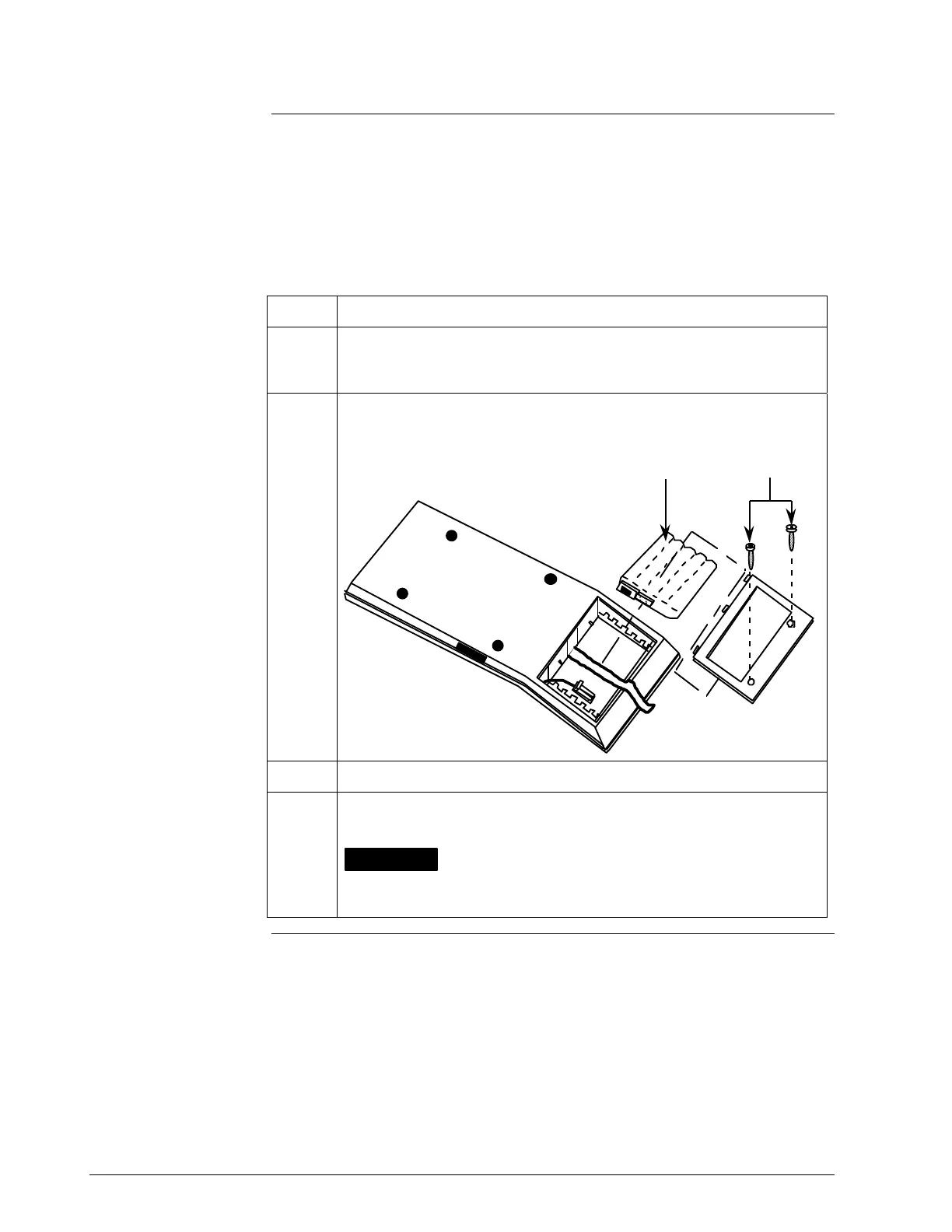

Example - Battery pack installation.
Battery Pack Hex Screws
21004
3
Replace cover and tighten hex screws
4
Connect lead from battery charger to recessed connector on left side
of SFC.
WARNING
The SFC battery charger is not intrinsically safe.
Always recharge the SFC battery pack in a nonhazardous location.
The SFC itself is an intrinsically safe device.
Continued on next page
20 ST 3000 Release 300 Installation Guide 2/05
