Honeywell ST 3000 Installation Guide

A.5 Configuring Smart Meter Using Pushbuttons, Continued
Setting Upper Display
Values
The procedure in Table A-8 outlines the steps for setting the upper
display limit to represent the 100 percent (URV) output of the
transmitter.
ATTENTION
This procedure applies only for Flow units (GPM or GPH) in a
transmitter configured for SQUARE ROOT output conformity, or
CUSTOM unit in a transmitter configured for linear or square root
output conformity.

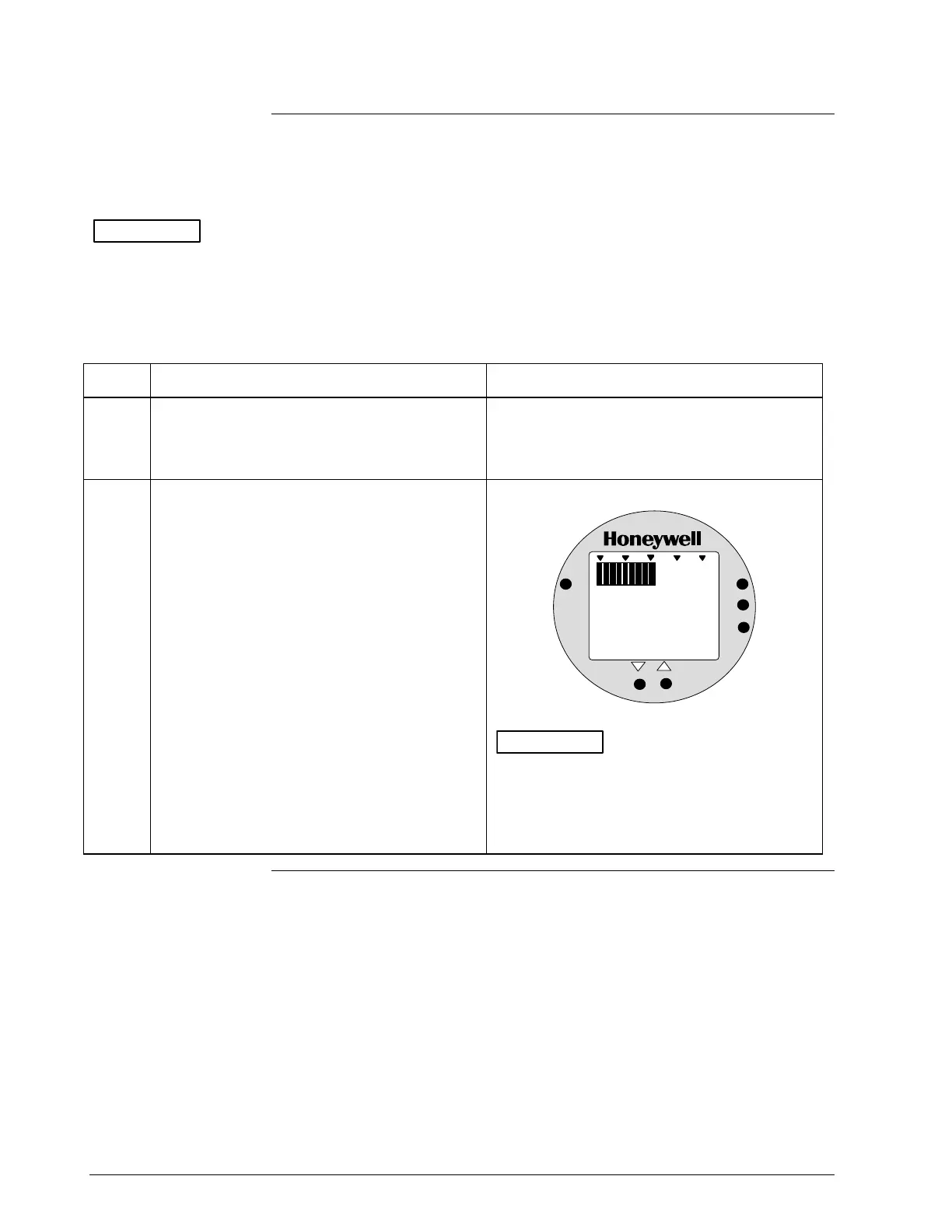

Table A-8 Setting Upper Display Value for Smart Meter Display
Step Action Meter Display
1 Press UPPER VALUE button to initiate upper
display limit setting function.
If upper limit display value was previously set,
KNOWN VALUE indicator lights and set value
flashes in display.
2 Press UPPER VALUE button again within 5
seconds. Otherwise, meter exits limit setting
function.
Display shows magnitude range selection.
%
1000
ANALOG
UPPER
VALUE
UNITS
LOWER
VALUE
SET
VAR
SEL.
19 .99
ATTENTION
The magnitude range
selection only applies for setting the display
limits. This selection does not affect the
normal operation of the meter. During normal
operation, the display is automatically ranged
to provide the best precision possible.
Continued on next page
68 ST 3000 Release 300 Installation Guide 2/05

Honeywell ST 3000 Specifications

General

Manufacturer	Honeywell
Category	Transmitter
Stability	±0.01% of URL per year
Operating Temperature	-40 to 85°C (-40 to 185°F)
Communication Protocol	HART
Housing Material	Aluminum or Stainless Steel
Enclosure Rating	IP66/67, NEMA 4X
Measurement Type	Gauge, Absolute, Differential
Output Signal	4-20 mA, HART
Process Temperature	-40 to 121°C (-40 to 250°F)
Hazardous Area Approvals	FM, CSA, ATEX, IECEx
Process Connection	1/2" NPT
Material	316L Stainless Steel, Hastelloy C
