Honeywell ST 3000 Installation Guide

Section 4 —Installation
4.1 Mounting ST 3000 Transmitter
Summary
You can mount all transmitter models (except flush mount models and
those with integral flanges) to a 2-inch (50 millimeter) vertical or
horizontal pipe using our optional angle or flat mounting bracket, or a
bracket of your own. Flush mount models are mounted directly to the
process pipe or tank by a 1-inch weld nipple. Those models with integral
flanges are supported by the flange connection.

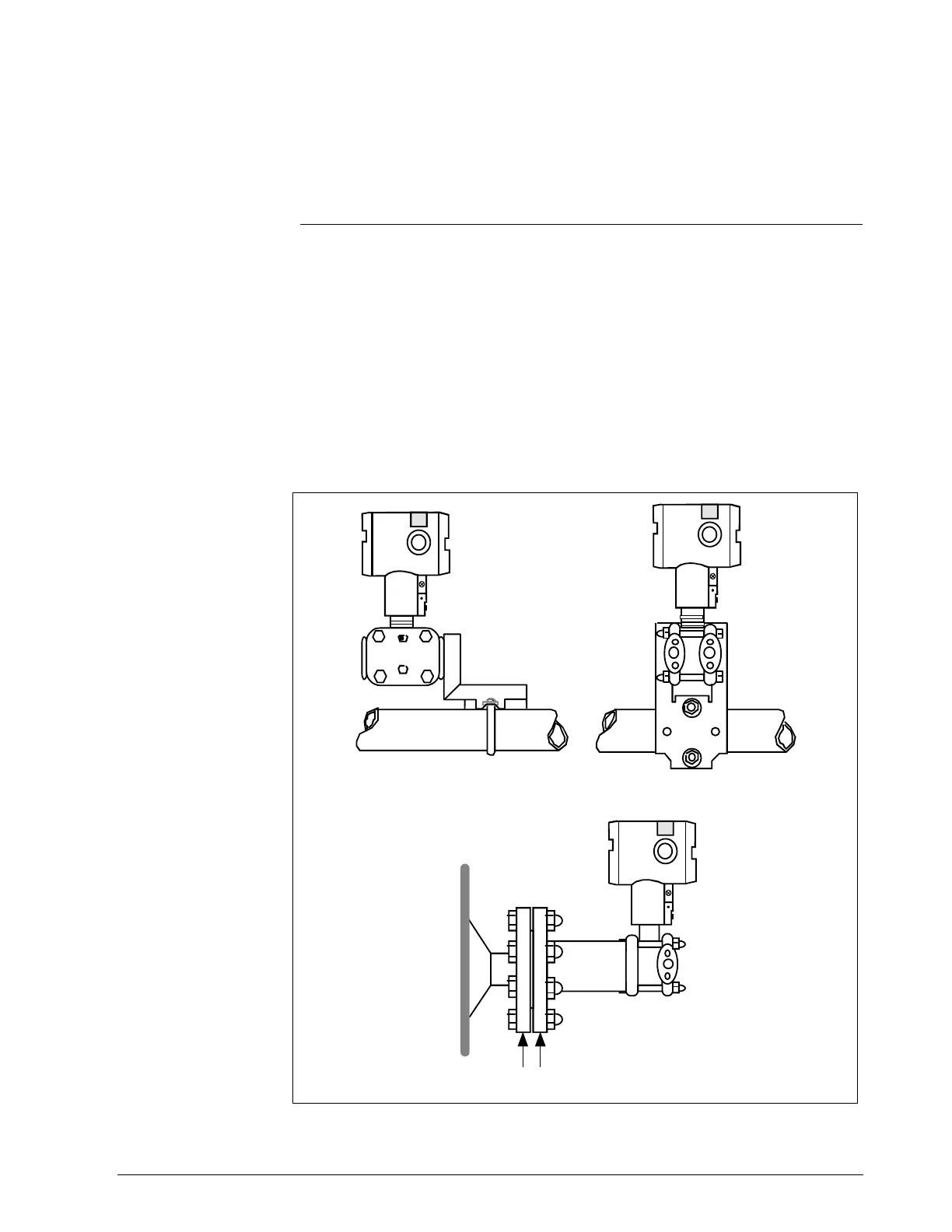

Figure 5 shows typical bracket mounted and flange mounted transmitter
installations for comparison.
Figure 5 Typical Bracket Mounted and Flange Mounted Installations
Angle
Mounting
Bracket
Flat
Mounting
Bracket
Horizontal Pipe
24118
Tank
Wall
Flange
Connection
Transmitter
Flange
Continued on next page
2/05 ST 3000 Release 300 Installation Guide
23

Honeywell ST 3000 Specifications

General

Manufacturer	Honeywell
Category	Transmitter
Stability	±0.01% of URL per year
Operating Temperature	-40 to 85°C (-40 to 185°F)
Communication Protocol	HART
Housing Material	Aluminum or Stainless Steel
Enclosure Rating	IP66/67, NEMA 4X
Measurement Type	Gauge, Absolute, Differential
Output Signal	4-20 mA, HART
Process Temperature	-40 to 121°C (-40 to 250°F)
Hazardous Area Approvals	FM, CSA, ATEX, IECEx
Process Connection	1/2" NPT
Material	316L Stainless Steel, Hastelloy C
