Honeywell Temaline TS2 User Manual

11

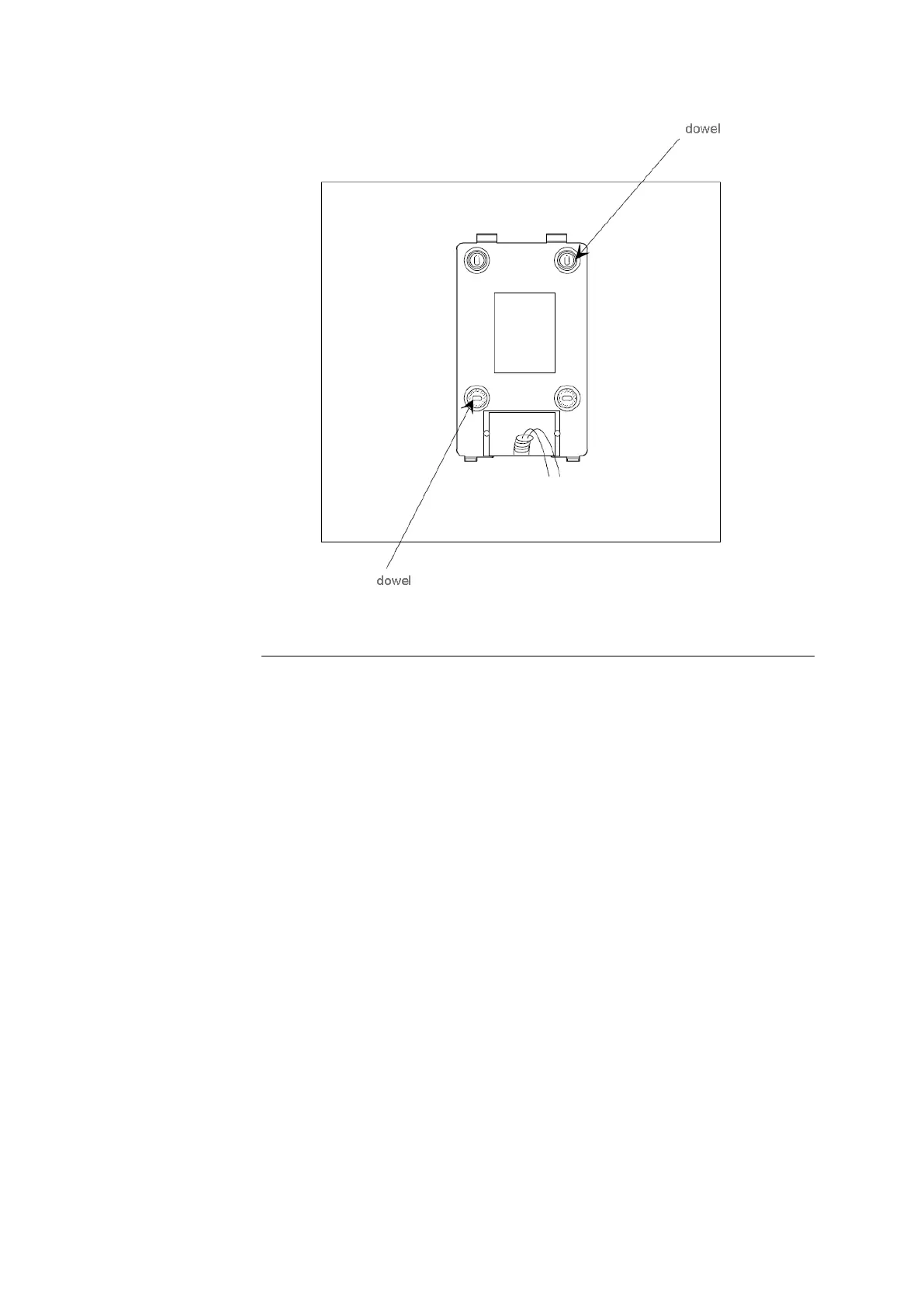

Figure 4 - Support Plate
Hooking Up the device
To hook up the device to the wall, follow these steps (see Figure
5):
1. Attach the upper part of the device to the upper hooks on
the support plate.
2. Insert the cables into the device through the specified
openings.
3. Tighten the two screws that secure the device to the
support plate (use a ∅ 5mm cross screwdriver).

Honeywell Temaline TS2 Specifications

General

Brand	Honeywell
Model	Temaline TS2
Category	Controller
Language	English
