Caution:
All the cables shall be separated at least 0.25
inches (10mm) from the battery wire
Connecting the DC Power Supply
From factory is plugged on J1 connector a polarized indirect screw
connector.
Attach the ends of the DC Power supply cable heads onto the
indirect screw connector provided together with the device (use a
∅ 3mm slotted screwdriver).

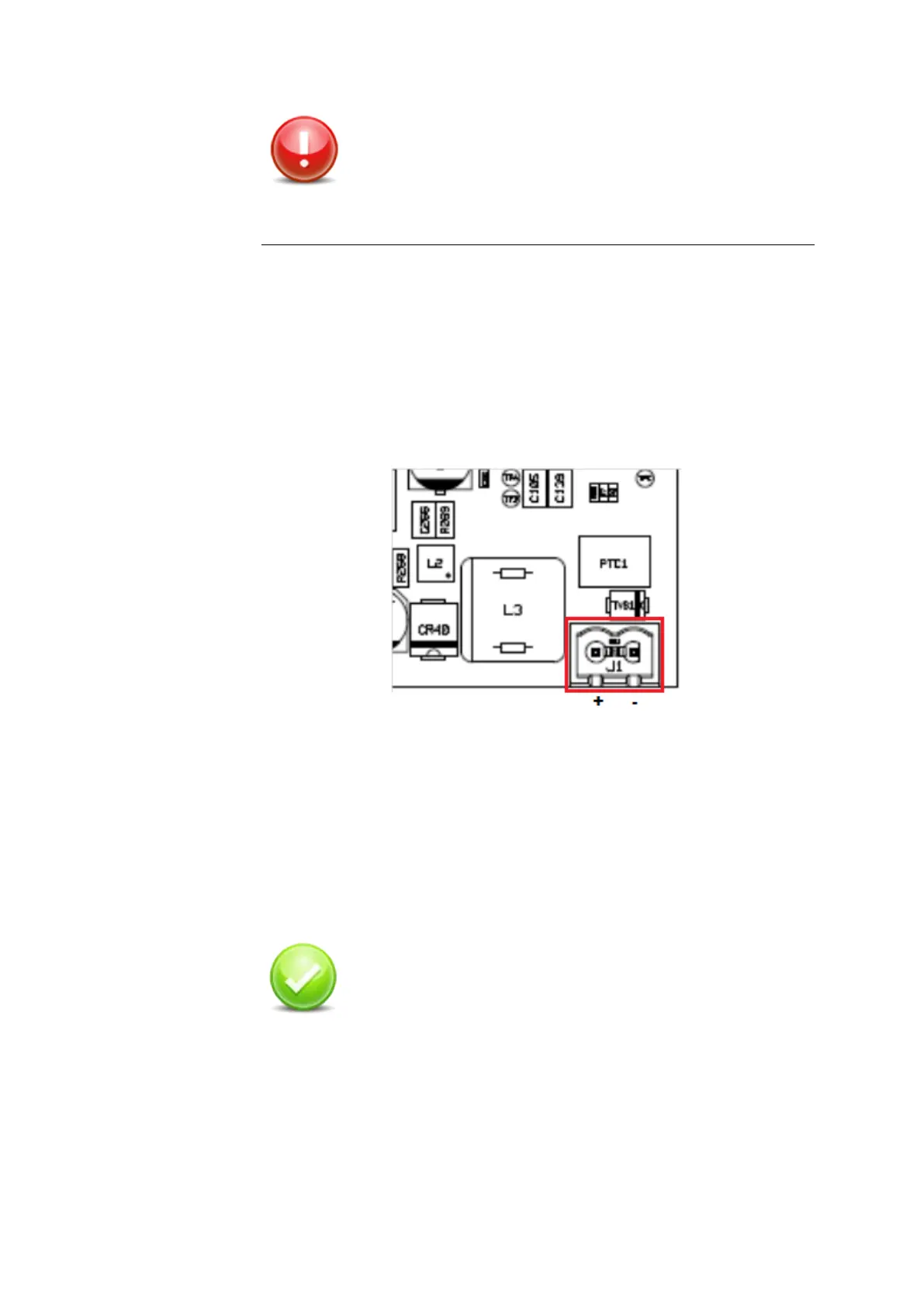

Figure 7 - DC Power Supply J1 connector
The J1 connector is provided of a polarized indirect screw
connector with the following connection characteristics:
• Conductor section AWG min = AWG24 max = AWG13
• Conductor section rigid or flexible min = 0.2 mm
2
max = 2.5
mm
2
Check: Once the DC Power Supply is properly
connected and switched on the CR2 Green Led
(+12VDC main power) present on the TS2 main
board must be in ON status.
