TS2 Lonwork Xboard - Jumpers and Switch
Two jumpers and one switch are on to the Lonwork MIP board as
in the following picture.

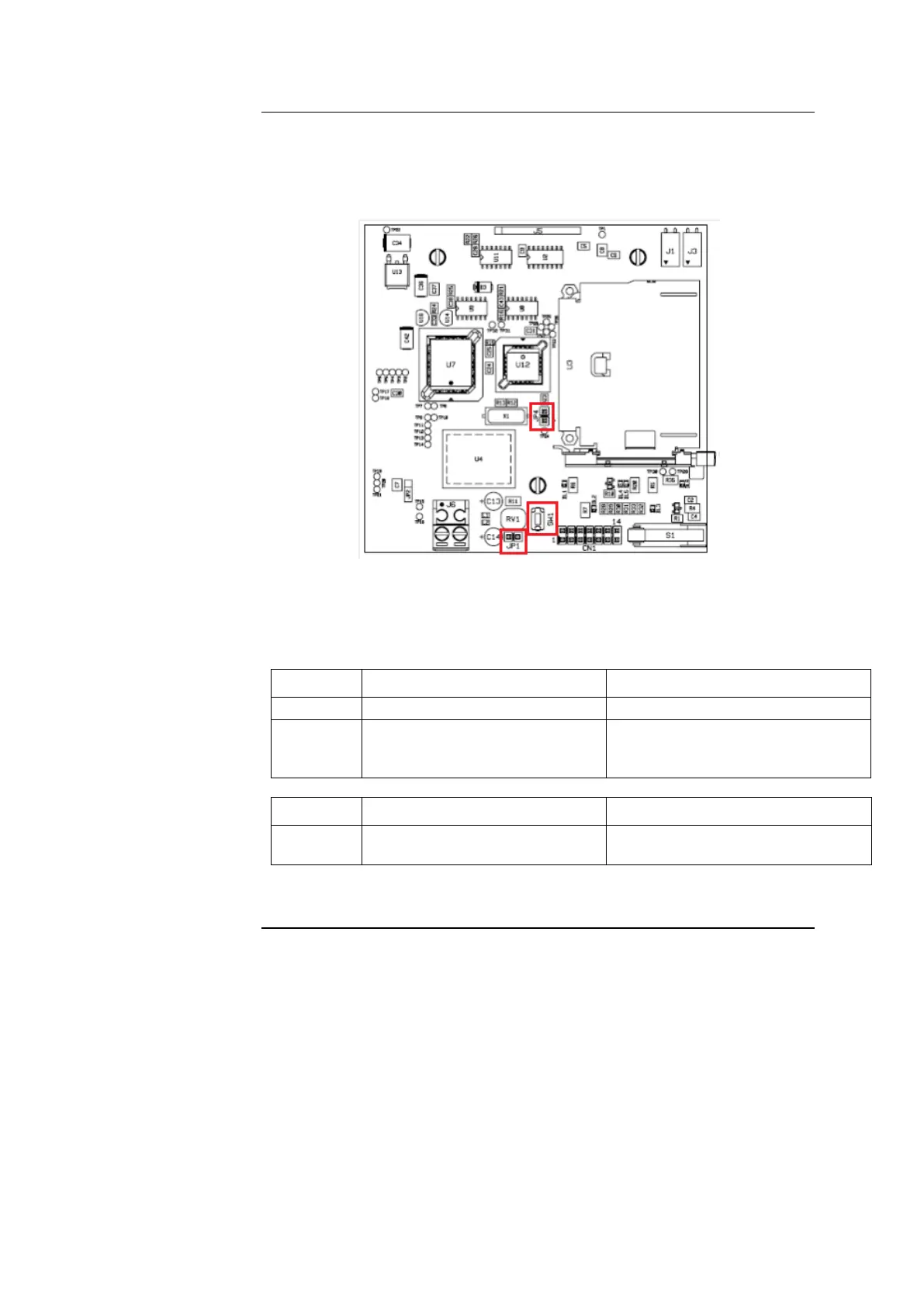

Figure 17 – LonWork Jumpers and Switch
For normal operation, configure the jumpers on the main board as
specified in Table 6.
Jumper Function Default state
JP1 LON net 51 Ohm termination Close
JP4 MIP Flash (U7) write protect Open
Note: Close only in case of MIP
firmware update
Switch Function Note
SW1 LON MIP service PIN Use only in case of MIP Firmware
update
Table 6 - Configuration of Jumpers on TS2 Lonwork Xboard
TS2 LonWorks Xboard - diagnostic and MIP
LEDs
There are six diagnostic LEDs on the TS2 LonWorks Xboard as
shown in the following picture.
