CR34 Ethernet 10 / 100 - Orange
ON = Ethernet working at 100 Mbit/s
OFF = Ethernet working at 10 Mbit/s
-
RJ45 green
LED
Ethernet physical Link
ON = Good link
OFF = no link
-
RJ45 yellow
LED
TX / RX activity
Blinking when RX or TX is active
OFF = no RX/TX activity
blink
Table 4 - CPU switches and LEDs
Device Configuration Jumpers
There are seven configuration jumpers (CN1) on TS2 Lonwork
Xboard as shown in the following picture.

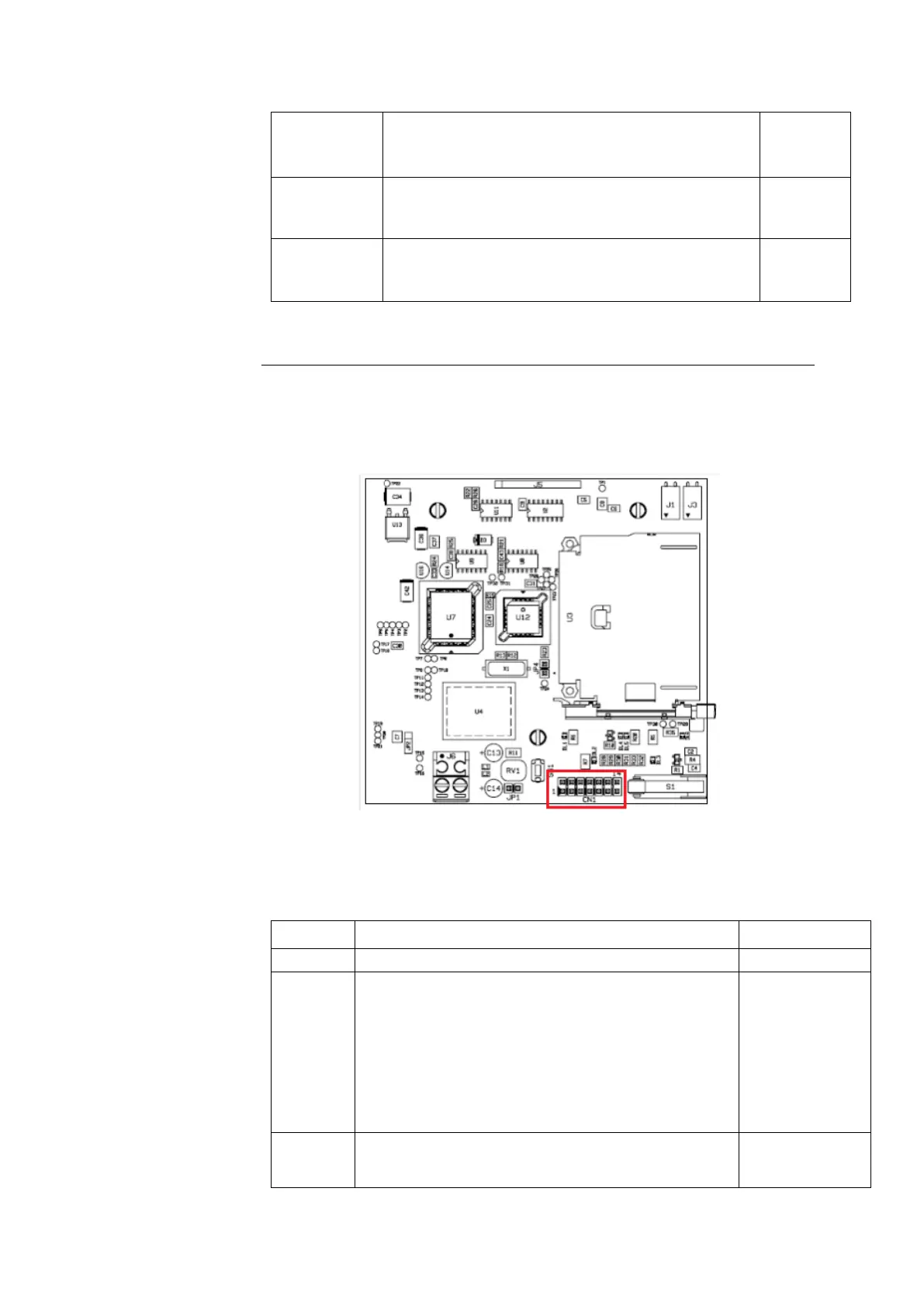

Figure 16 – Configuration jumpers
For normal operation, configure the jumpers as specified in Table
5.
Jumper Function Default state
CN1.1 Spare position Close
CN1.2 Presence of the battery. It instructs the device on the
presence of the internal battery. The use of the internal
battery can be avoided when the device is powered with
an external UPS.
When the jumper is Closed and the device is restarted,
the absence of the internal battery is no more considered
a failure for the device.
Open = battery present
Close = battery not present
Open
(Battery present)
CN1.3 FW application roll back. When the jumper is closed and
the device is restarted, it restores the alternative version
of the application present on the device (if any).
Open
