Honeywell Temaline TS2 User Manual

15

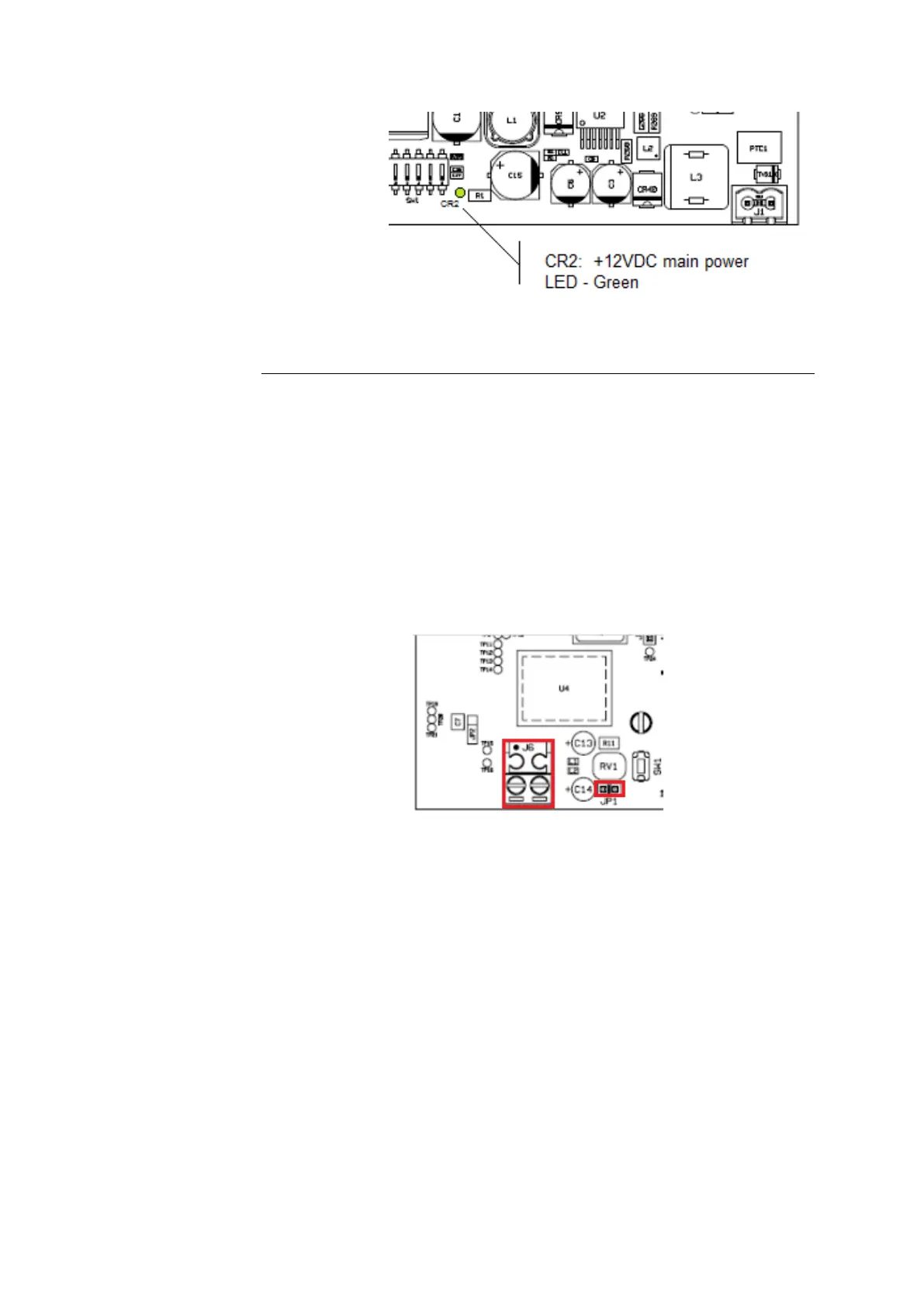

Figure 8 - CR2 Led position on main board
Connecting the LONWORKS Cable
From factory is plugged on J6 connector an indirect screw
connector.
Attach the ends of the LonWork cable heads onto the indirect
screw connector provided together with the device (use a ∅ 3mm
slotted screwdriver). The polarity of the LonWorks
®
cables is not
significant.
Figure 9 - J6 connector on LonWorks Xboard
The indirect screw connector has the following connection
characteristics:
• Conductor cross section AWG min = AWG30 max =
AWG14
• Conductor cross section flexible min = 0.05 mm
2
max = 1.5
mm
2
• Conductor cross section rigid min = 0.05 mm
2
max = 2.5
mm
2
