13
CONNECTING THE CABLES
Cables to be connected are (see Figure 6):
• DC power supply
• LonWorks (RTUs connection)
• Ethernet (10/100BaseT)
• Battery

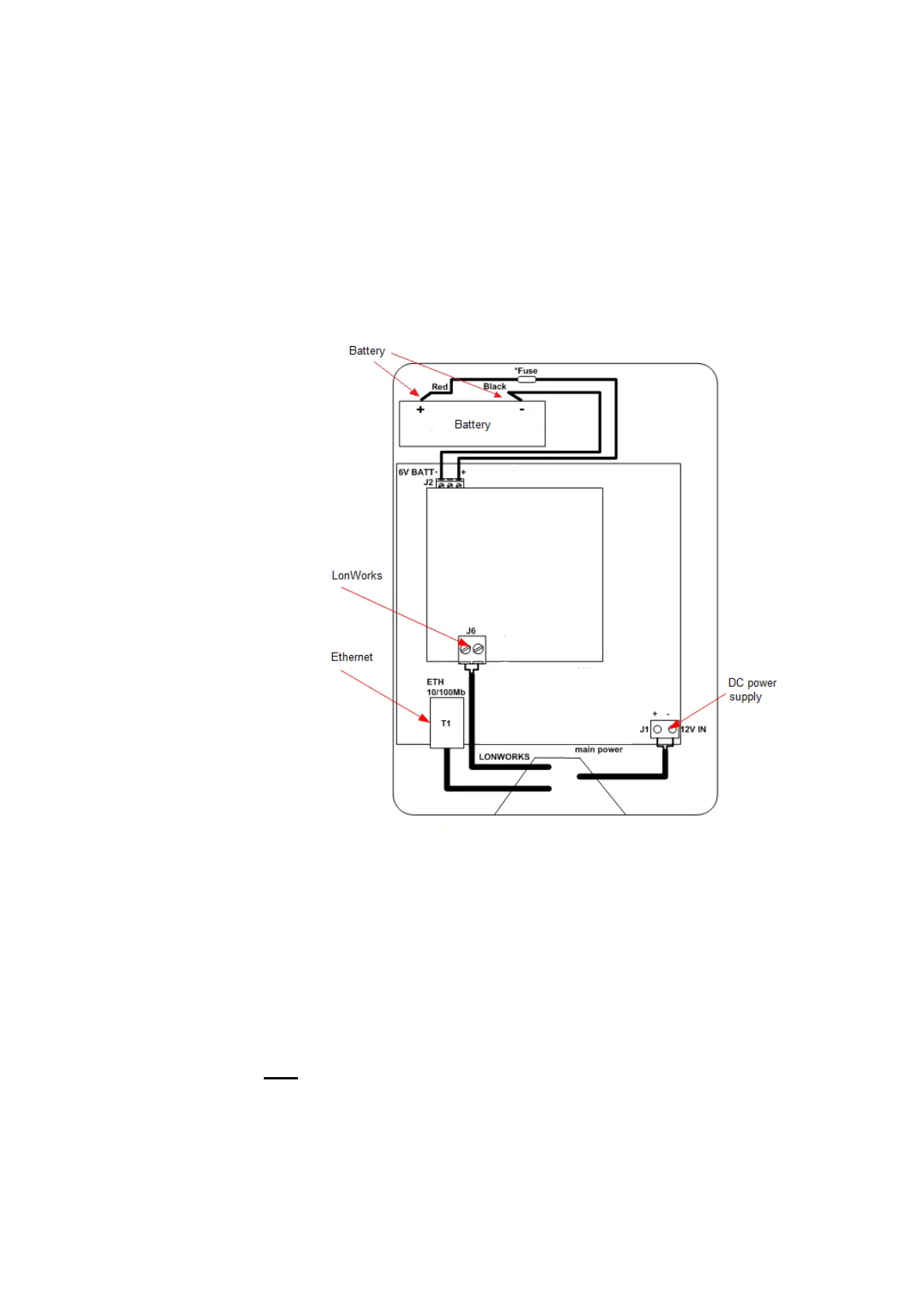

Figure 6 - Connecting the Cables
To connect the cables, follow these steps:
1. Connect all the cables to the board (see below details).
2. Line up the cables with the grooves at the back of the
terminal and screw in the cable fixing plate that is used as a
cable clamp (use a ∅ 5mm cross screwdriver).
Tip: Place the cables in the lower lateral grooves, so that they are
not forced to negotiate tight bends.
