Honeywell Temaline TS2 User Manual

30 https://extranet.honeywell.com
OPERATING INSTRUCTIONS &
MAINTENANCE
Reset the TS2 device
To reset the TS2 device press for at least 3 seconds the Reset
Button.
Reset button is located on the LonWorks Xboard (See Figure 21)
Switch off the TS2 device
To switch off the unit, follow these steps:
1. Open the unit by unscrewing the two screws on the front
cover (requires TORX Tamper-Resistant T10 screwdriver).
2. Remove the J1 connector of the incoming 12Vcc.
3. Press for 3 seconds the reset button.

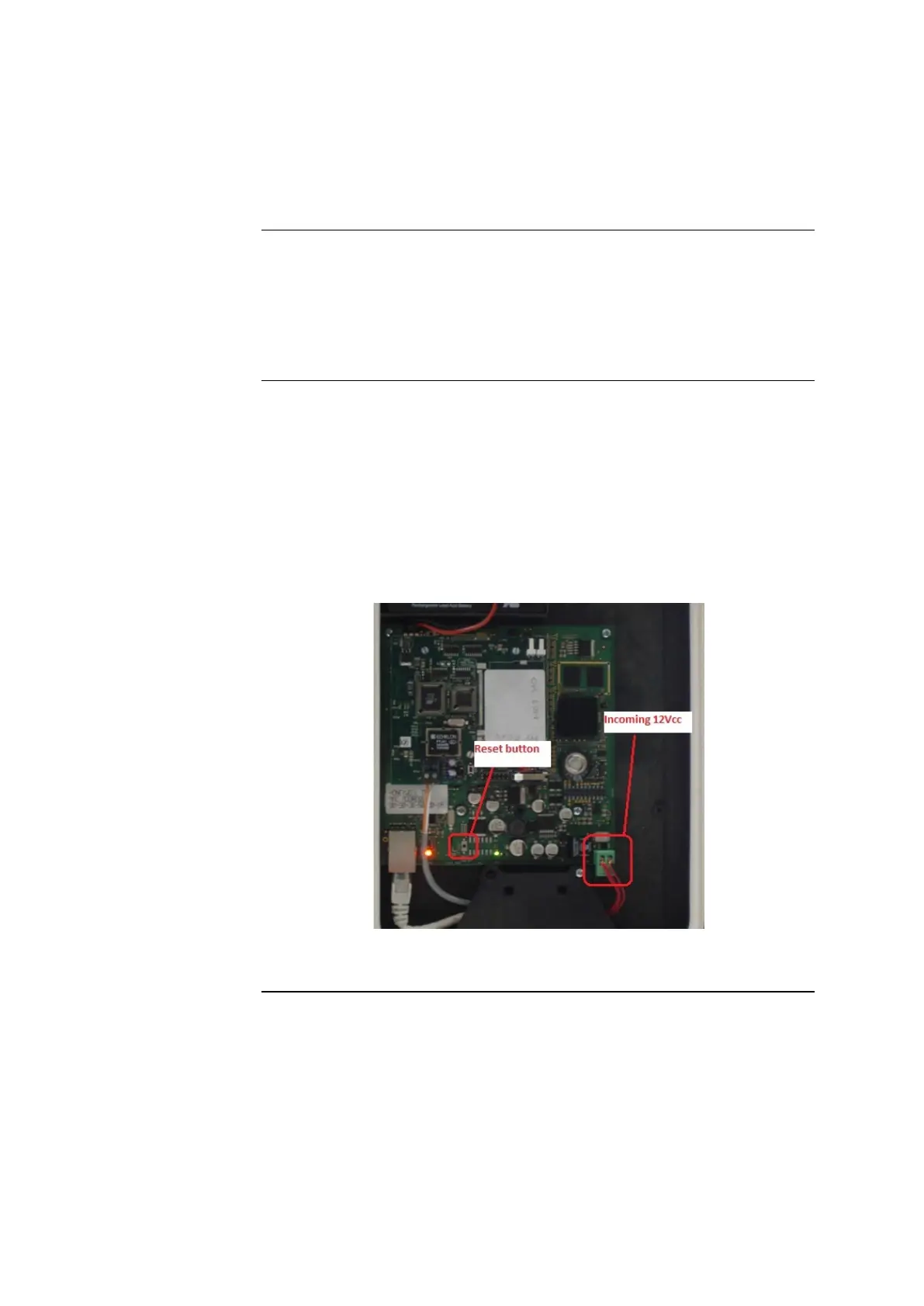

Figure 21 – TS2 device switch off
TS2 application quick health check
Using diagnostic Led, present on to the TS2 LonWorks Xboard, it
is possible to perform a first quick check of the TS2 application
without the use of SW tools.
Position of diagnostic Led is shown on the below picture.

Honeywell Temaline TS2 Specifications

General

Brand	Honeywell
Model	Temaline TS2
Category	Controller
Language	English
