29
Jumper Function Default state
S1 Anti-Open Tamper switch Close
J1 To connect an external (not provided) tamper Close
J3 To connect an external (not provided) tamper Close
Table 8 - Tampers

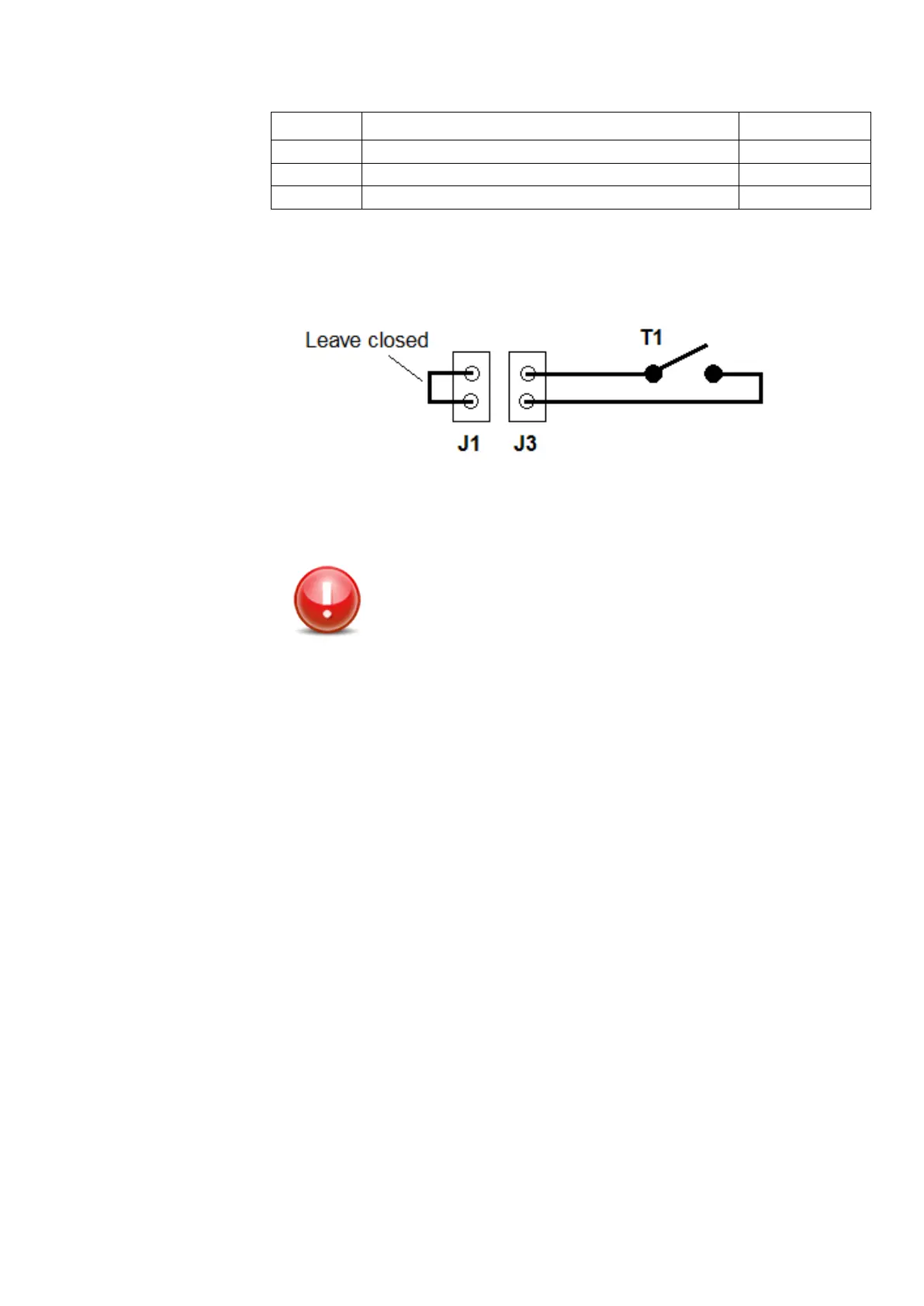

If you need to connect an external tamper to the connector J3 you
can use the below schematic.
Figure 20 – Single external tamper connection schema
Please note that:
J1 and J3, and so the two external tampers, are
in series and thus it is not possible to
distinguish which of the two tampers raised the
alarm. From the supervision center the two
tampers generate the same events.
