17

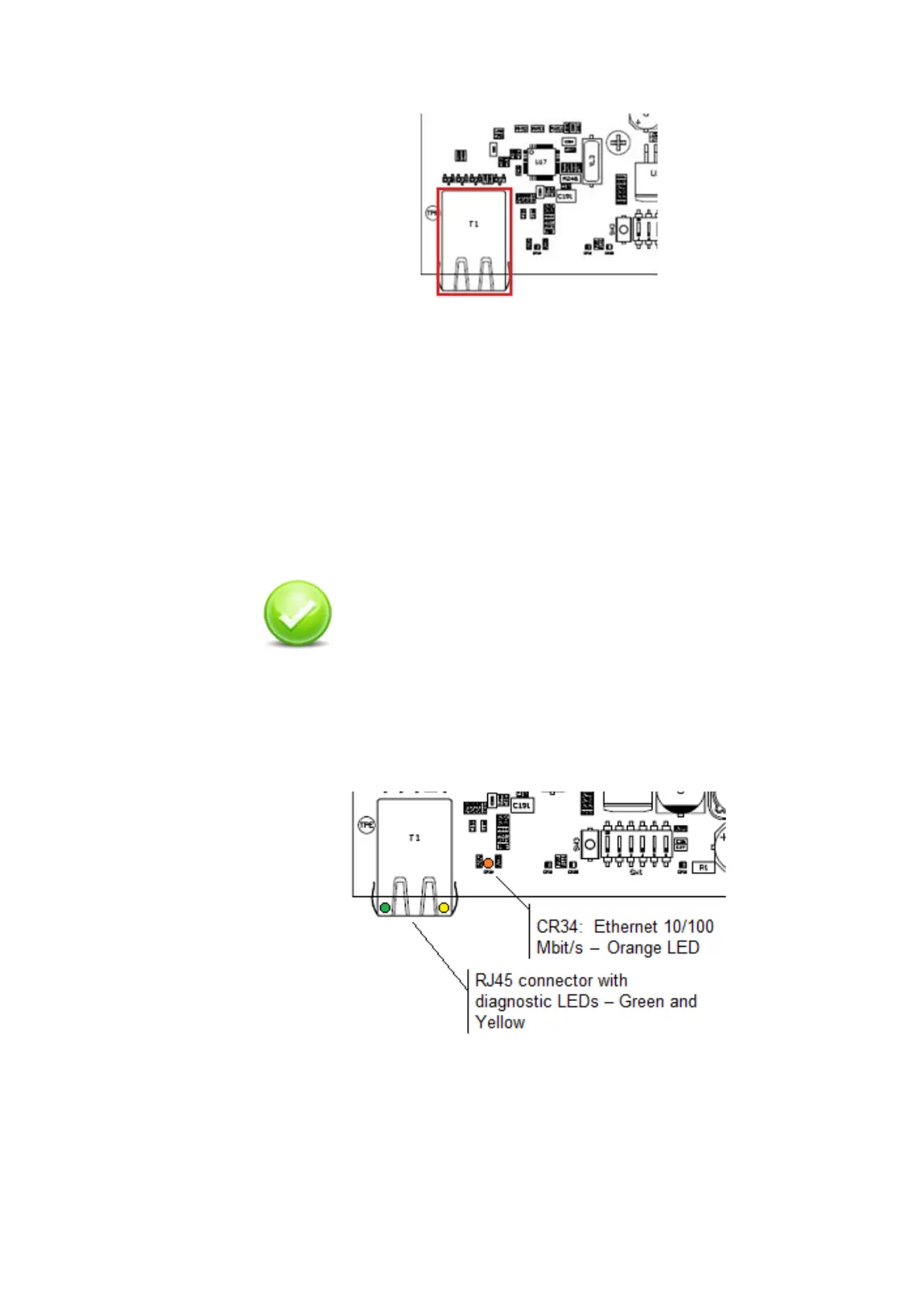

Figure 11 - Ethernet 10/100Mbit T1 connector
Characteristics of the network connection are:
• Auto-MDIX: automatically detects and corrects for straight
or cross-over cables
• Error free operation up to 150mt: dependable network
performance over long distance
• Superior 4.0 KV ESD protection: robust operation in Harsh
environments
Check: Once the Ethernet is properly connected
and the TS2 switched on the RJ45 green Led
(Ethernet physical link) must be ON and the RJ45
Yellow Led (Ethernet Communication activity) must
blink regularly. CR34 orange led shows the speed of
the available Ethernet connection: if is ON the
current speed is 100Mbits/s otherwise is 10Mbits/s.
Led are located on TS2 main board.
Figure 12 - RJ45 connector Led and CR34 Led positions
