About the System (cont’d)
9
Supplementary external power supply must be Listed to CAN/ULC-S318 for cUL Burglary
Installations and ULC-S527 for cUL Residential Fire Installations.
Specifications
Mechanical Specifications:
Width: 8.23 inches (209.04mm)
Height: 5.59 inches (141.99mm)
Depth:1.13 inches (28.70mm)
Electrical Specifications:
9.6VDC
12VDC
13.8VDC
Backlight OFF, Sound OFF, WIFI ON 170mA 140mA 130mA
Backlight ON, Sound OFF, WIFI ON 280mA 225mA 200mA
Backlight ON, Sound ON, WIFI ON 340mA 260mA 250mA
Operating Environment:
Humidity 93% RH, non- condensing
Temperature:
Operating
14˚ F to 131˚ F / -10˚ C to 55˚ C
(UL tested 32˚-120˚F / 0 to 49˚C)
Shipping / Storage
-40˚ F to 158˚ F / -40˚C to 70˚C

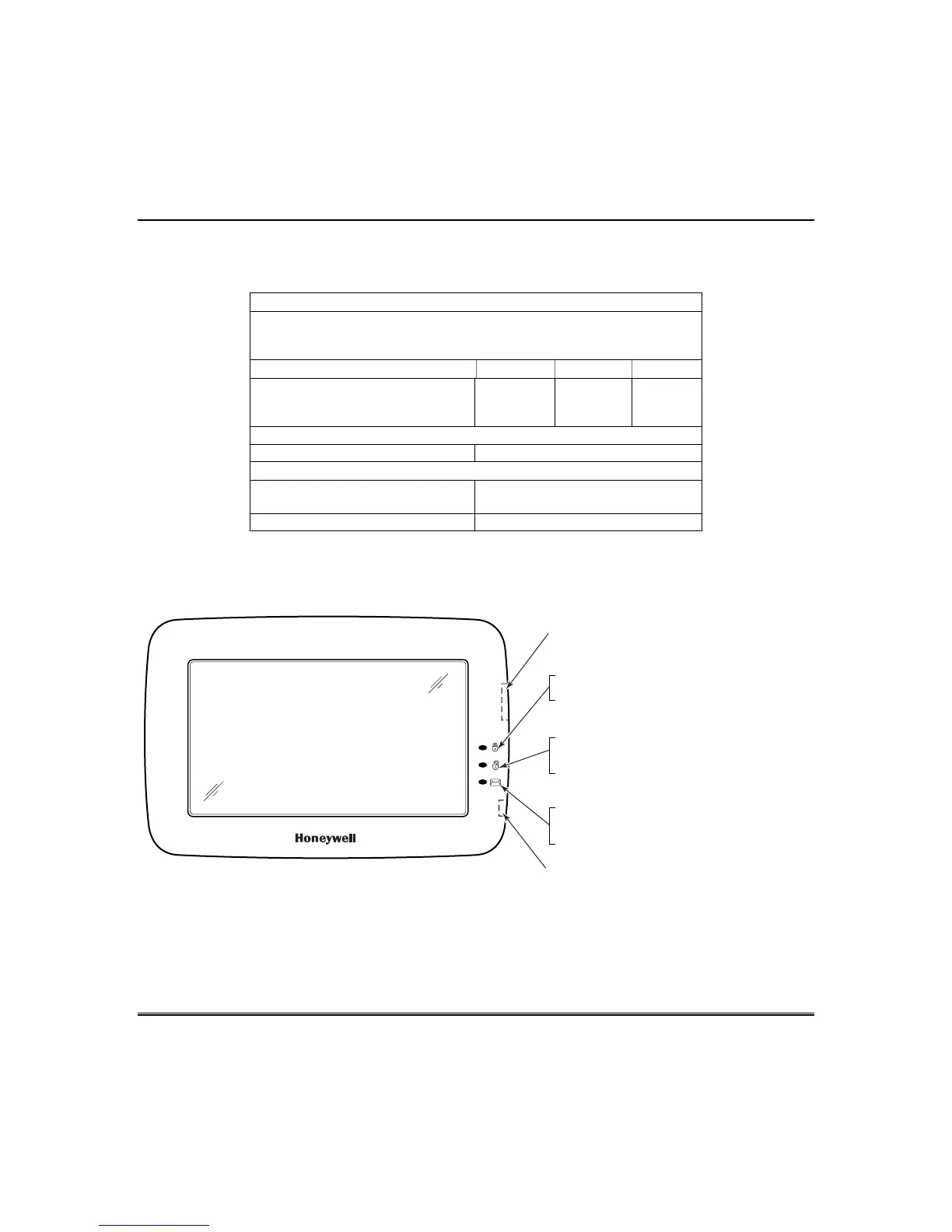

Front Panel LEDs
The Tuxedo Touch Keypad has three LEDs as follows:
6280-001-V0
FLASHING – The system contains new
message(s) for the User.
OFF – No new messages.
RESET BUTTON
Press to reset keypad
ON – System is armed.
OFF – System is not armed.
ARMED (RED) LED
READY (GREEN) LED
ON – System is disarmed and ready to arm.
OFF – System is armed or disarmed but not
ready. If disarmed, faults or troubles are present.
MESSAGE (YELLOW) LED
SD/SDHC CARD Slot
NOTE: If the Screen Blackout (*EN50131 Display) feature is enabled (see below) the keypad returns to
the “Home” screen and the “Armed” and “Ready” status LEDs turn OFF after 30 seconds. The keypad
will remain in this state until a valid user code is entered.
*The EN50131 Display compliance feature is a European Standard designed to prevent unauthorized
users from viewing the status of the Security System.
