Display

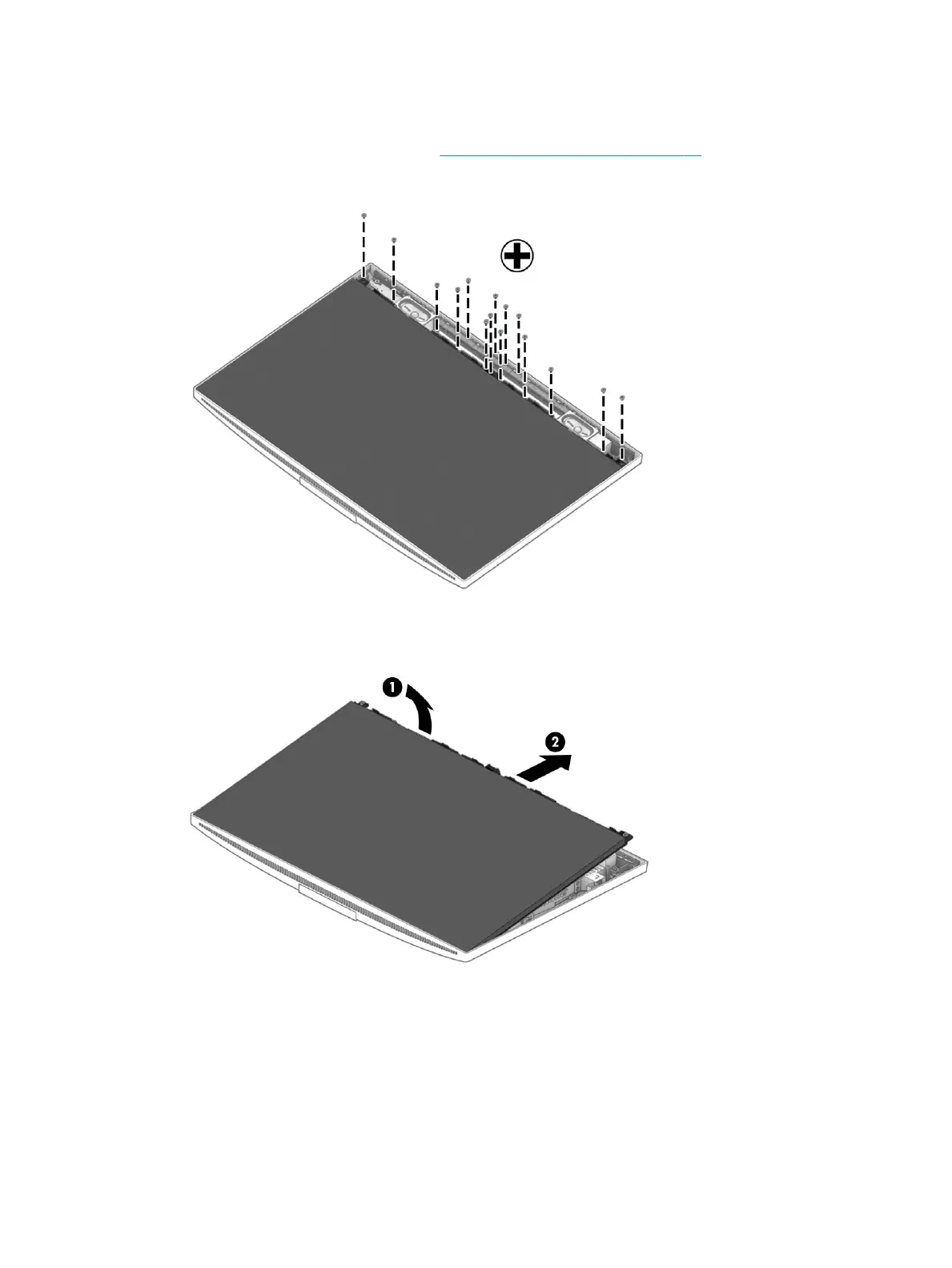

1. Prepare the computer for disassembly (Preparation for disassembly on page 16).
2. Remove the 15 Phillips screws from the bottom of the display.
3. Lift the bottom of the display up (1), and then pull the display away to remove it from under the top of
the computer chassis (2).
18 Chapter 4 Removal and replacement procedures
