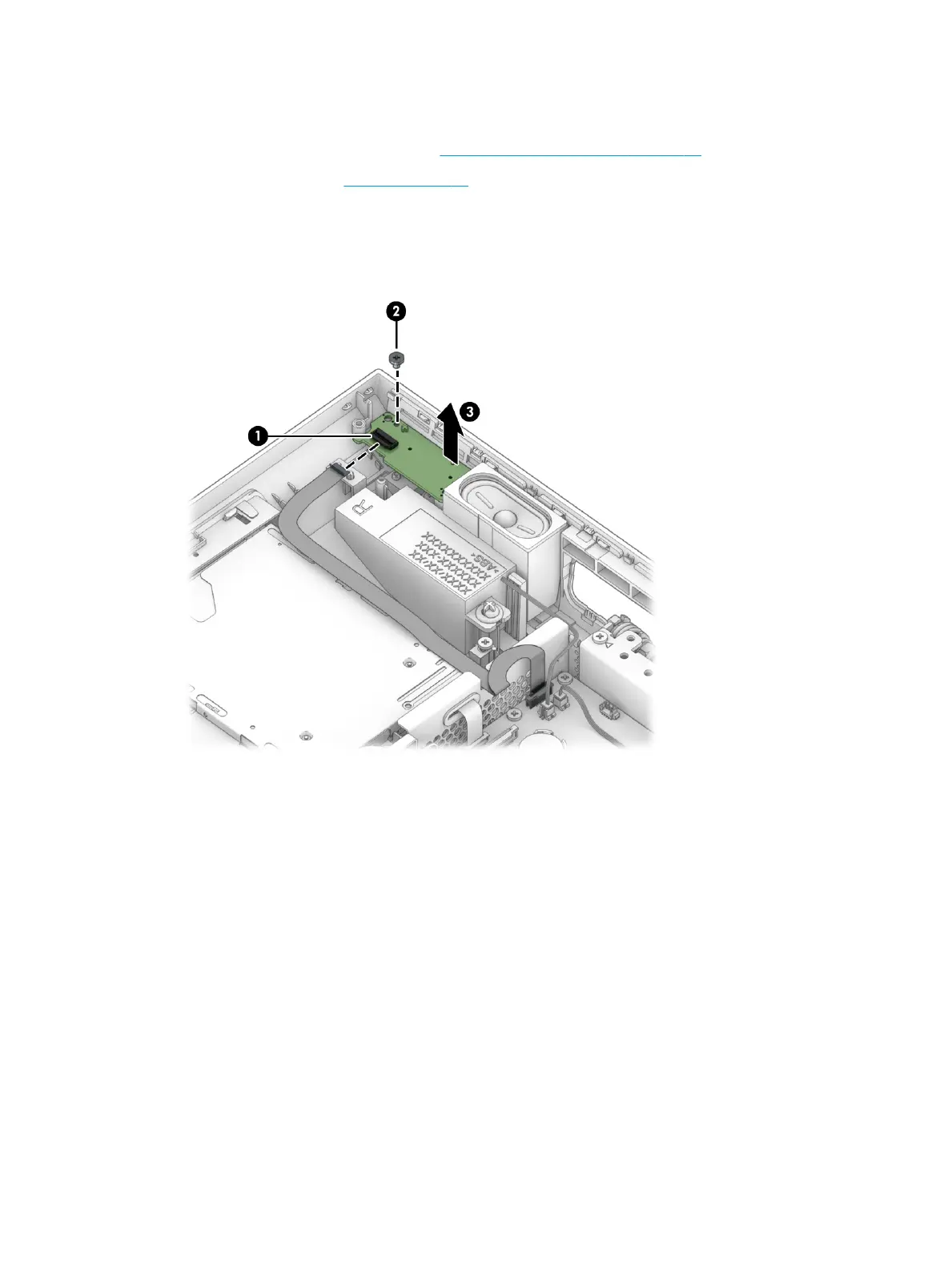

Power button/card reader board
1. Prepare the computer for disassembly (Preparation for disassembly on page 16).
2. Remove the display (see Display on page 18).
3. Disconnect the cable from the board (1).
4. Remove the Phillips screw (2) that secures the board to the computer.
5. Remove the board from the computer (3).
To install the power button/card reader board, reverse the removal procedures.
30 Chapter 4 Removal and replacement procedures
