Antenna cable
1. Prepare the computer for disassembly (Preparation for disassembly on page 16).
2. Remove the display (see Display on page 18).

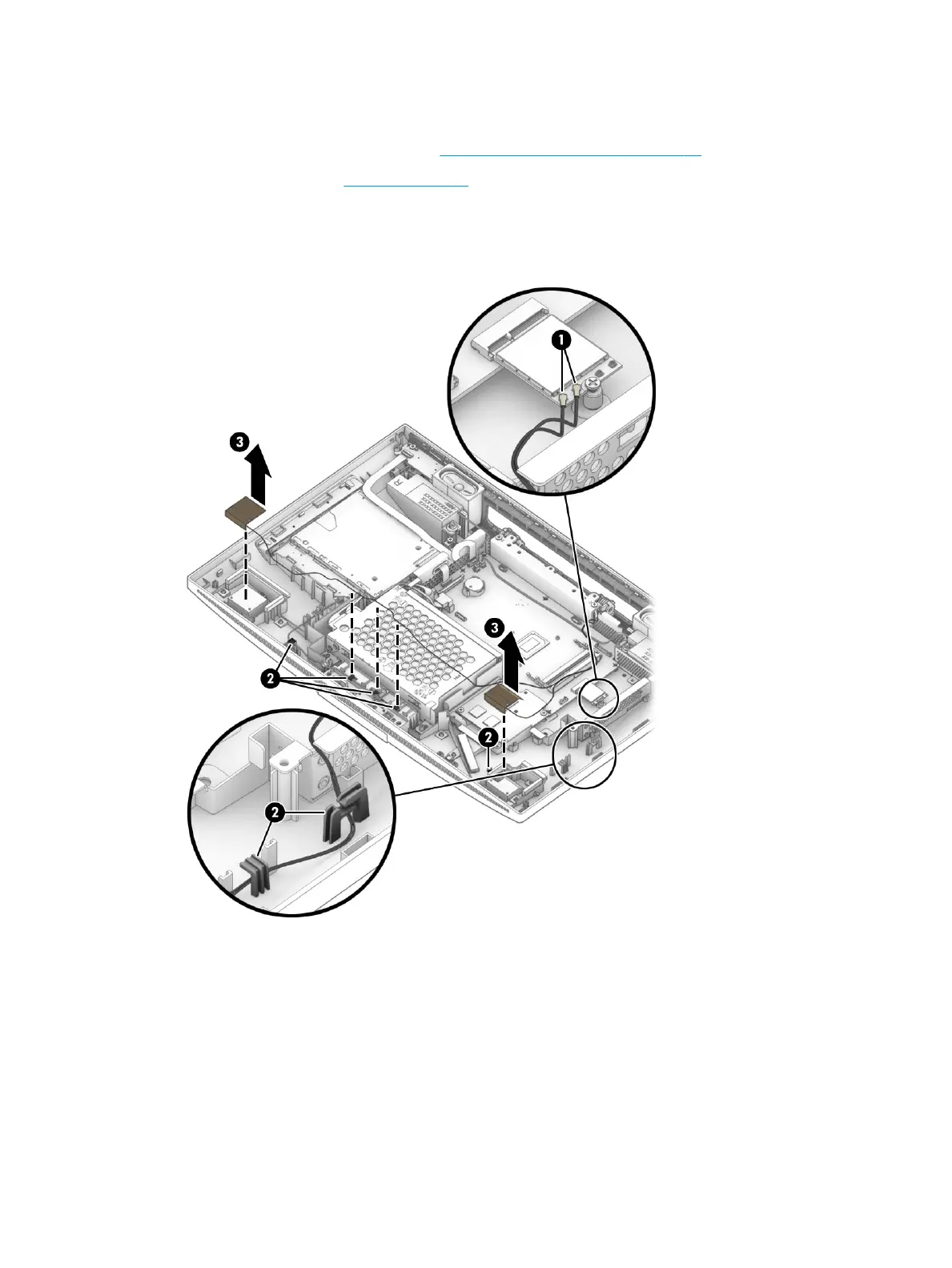

3. Disconnect the antenna cables from the WLAN module (1).
4. Remove the antennas cables from the clips that secure them to the chassis (2), and then peel the
antennas o the top of the chassis and remove them from the computer (3).
To install the antenna cables, reverse the removal procedures.
32 Chapter 4 Removal and replacement procedures
